(Refurbished 2019) ILLIG RDM 75K + PLS75b Stacker Counter with Hole Punch Station Thermoformer Line

Description

GMB#1454

(Refurbished 2019) ILLIG RDM 75K + PLS75b Stacker Counter with Hole Punch Station Thermoformer Line

Brand: ILLIG

Model: RDM 75K + PLS75b

Year: 1998

Refurbished in 2019 with Siemens S5 PLC Controls, used only for ca. 50,000 hrs

The Counter/ Stacker cum Hole Punch Station has a Brand new Original ILLIG Gear-Box for the Indramat Indexing Servo-motor

Max Stacking Area 750 x 350 mm

Min dia. of product     Ø 40 mm

Max dia. of Product     Ø 150 mm

Total Drive Rating      19 kW

Compressed Air    0.2 L at 6 bar, approximately

Output rate of Product Stacks 1200 Stacks/ hr

Max length of Product Stack   730 mm

Max height of Formed Product  150 mm

Min Height of formed product  25 mm

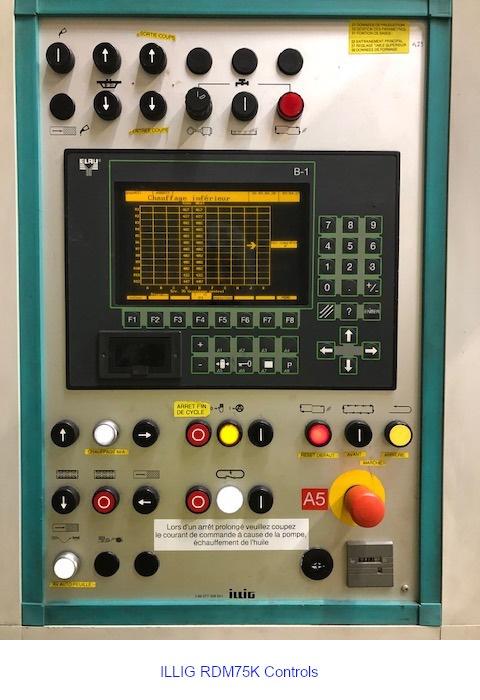

ELAU B1 Display with Touchpad controls

Thermoformer with auto-start facility

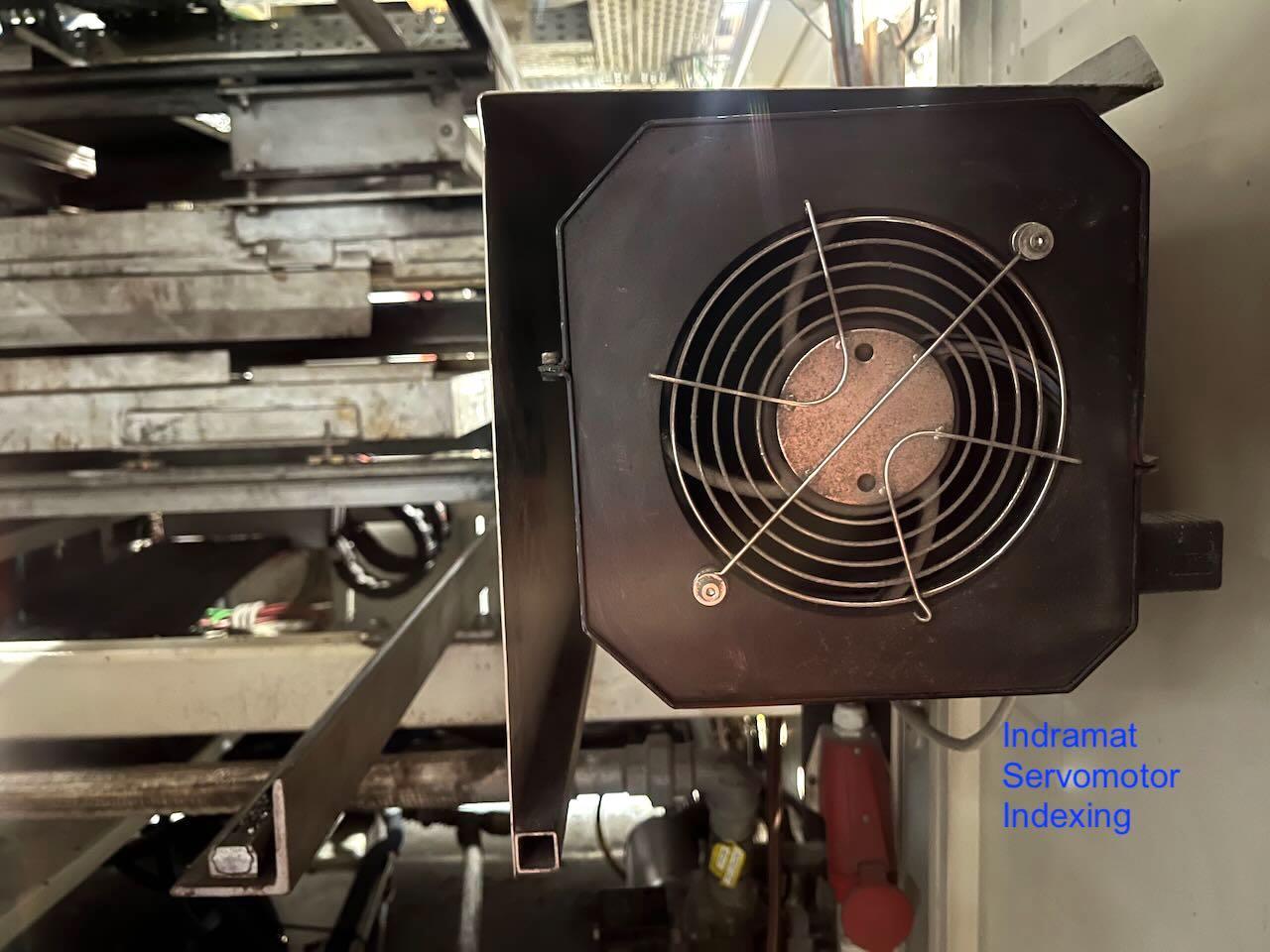

Indramat Servomotor Indexing

Max. material width 750 mm

Max. Indexing length 480 mm

Top & Lower heaters, total connected load top & bottom heaters 111.3 kW

Auto Transport Rail Spreading for PP

Sheet Sag Control

Max. Forming Area 700 x 450 mm

Hydraulic Cylinder Plug Assist with

Bosch Rexroth Hydraulic Power Pack, completely Overhauled in 2019

Max. Part height 150 mm

Max. Mold closing force 25,000 daN

Auto Lubrication system

Siemens S5 PLC Controls

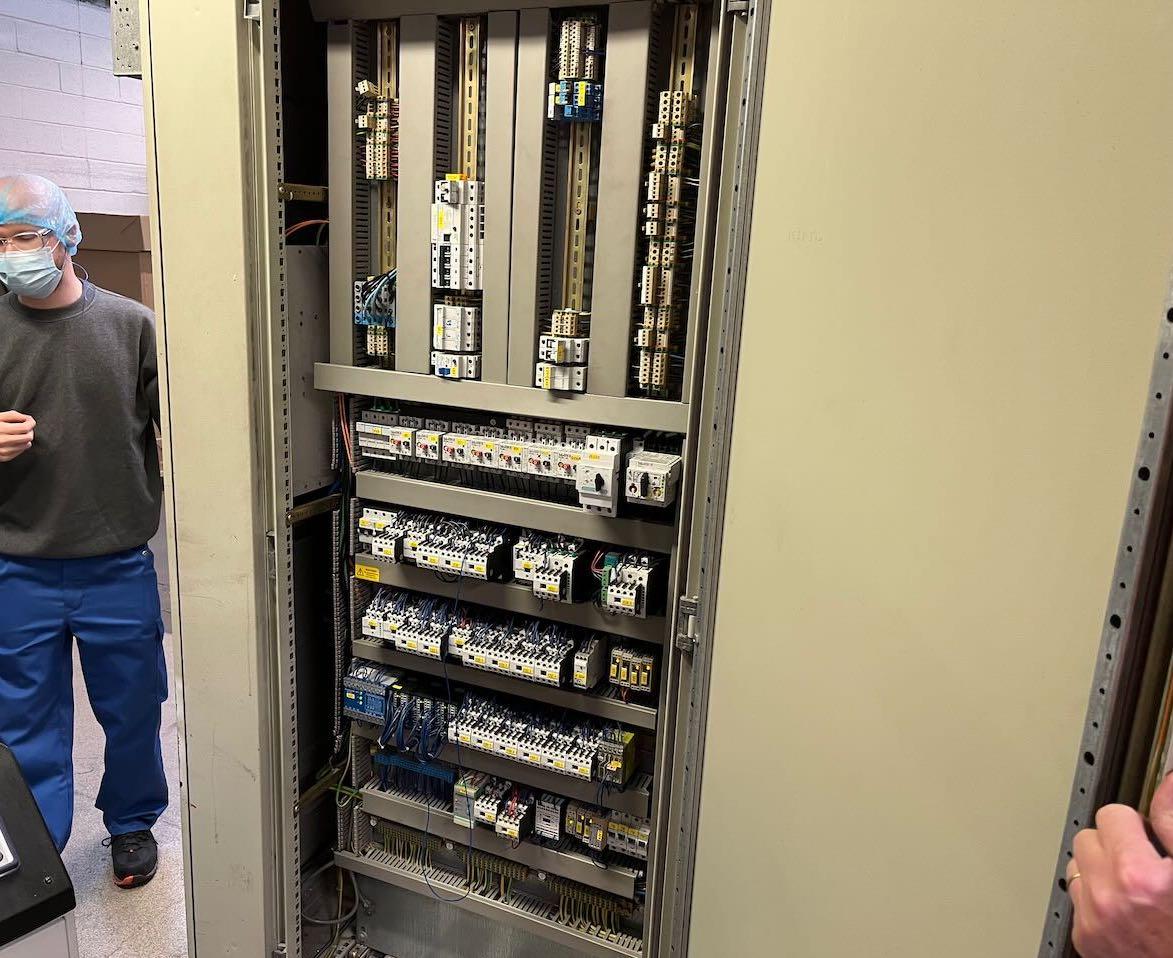

New original ILLIG/ RITTAL Control Cabinet Cooling System added in May-2023.

Brand: ILLIG

Model: PLS75B Inline Counter/ Stacker, with Hole Punch Station

Year: 2006

Max. Stacking Area: 750 x 350 mm

Min Height of formed product: 25 mm

Max. height of Formed Product: 150 mm

Min. dia. of product :    Ø 40 mm

Max. dia. of Product:    Ø 150 mm

Max. length of Product Stack:    730 mm

Output rate of Product Stacks: 1200 Stacks/ hr

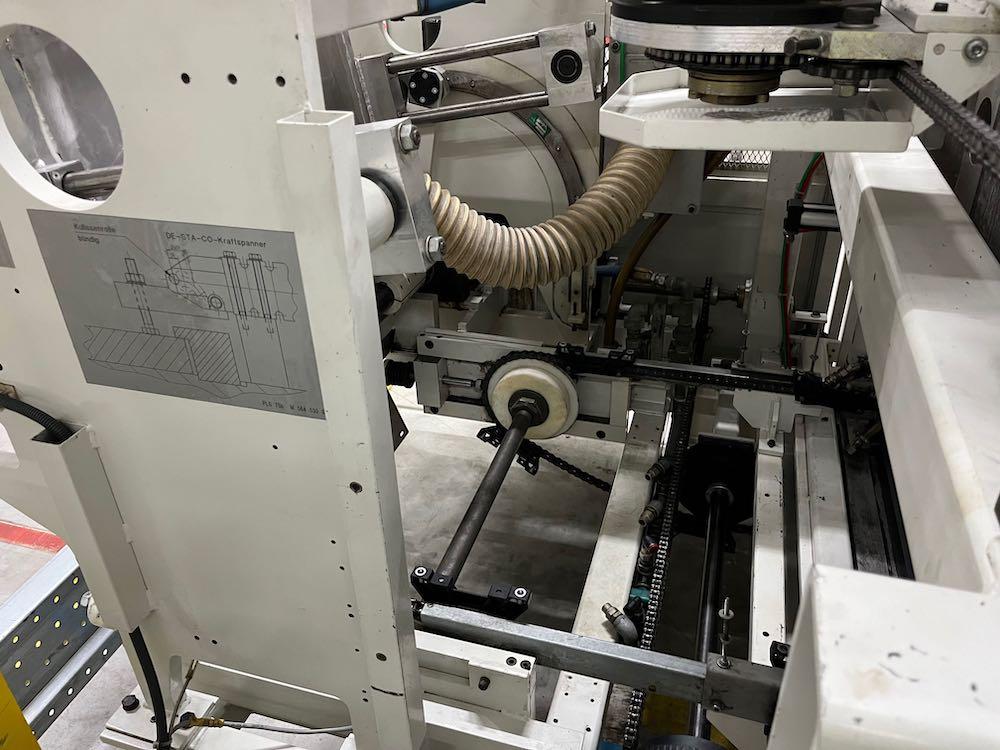

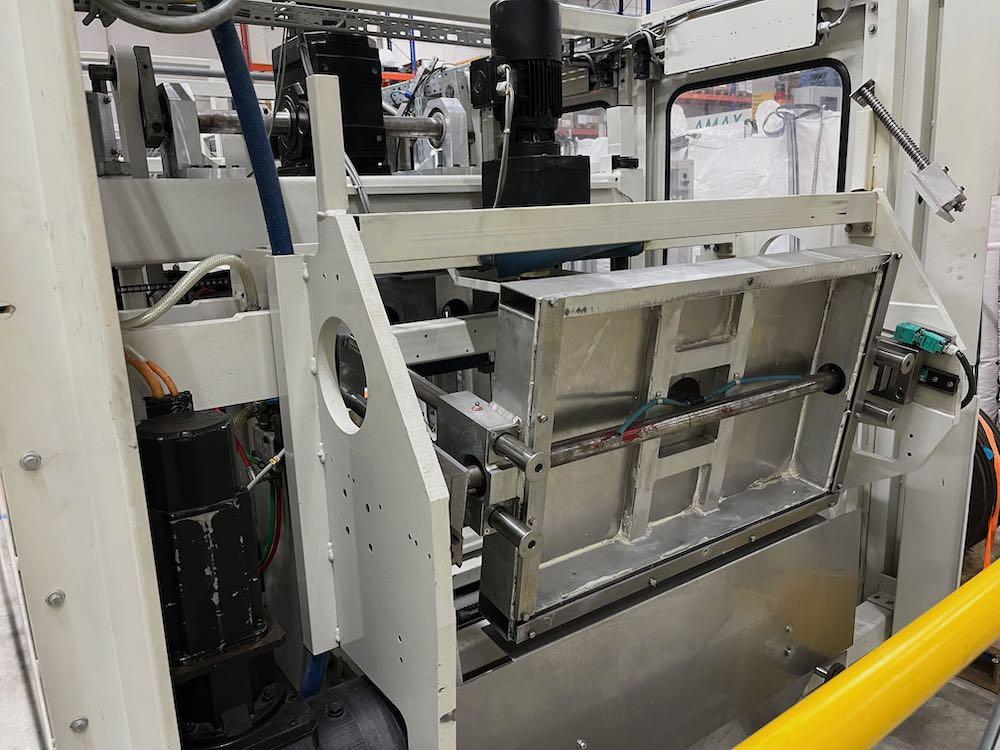

Rotating Head to neatly remove Products from the Thermoformer Mold

Inline Hole Punch Station

Inline Counter Stacker Station

Compressed Air:        0.2 L at 6 bar, approximately

Total Drive Rating:  19 kW

Electrical specifications:   400 V, 3 phase, 50Hz (N/ PE)

Cross delivery conveyor for counted cups.

All Motors are Indramat Servo Motors

Siemens SIMATIC TOUCH LED Operator Control Panel with Touch Pad Controls

Siemens S7 PLC Controls

Delivers Counted Cups/ Containers at Right Angles to machine direction

* No Tooling or Format Parts are included with the Line.

The Line is in very good production condition

Location: Germany

Price exworks as is / where is
