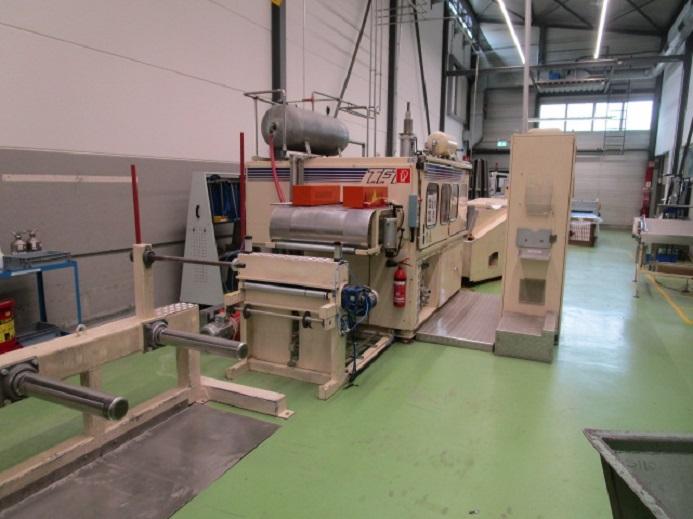

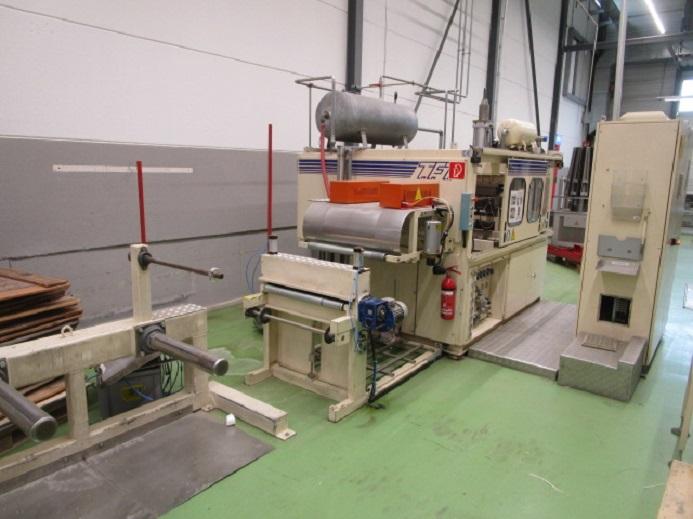

USED TFT IMC 5030 THERMOFORMING MACHINE WITH TOOLS

Description

GMB#1457

USED TFT IMC 5030 THERMOFORMING MACHINE WITH TOOLS

Brand: TFT

Model: IMC 5030

Unwinding:

Roll recording: easy

Max roll diameter: mm 1000

Settlement: automatically

Thermoforming machine:

Maximum tool dimensions: mm 520×330

Pos. Molding height max.: 15 mm

Neg. Molding height max.: 120 mm

Sheet width: mm 150/760

Movement Step: mm 50/330

Max HIPS film thickness: 1.8 mm

Hub of the sub-table: 150 mm

Clamping force: 7500 Kg

Inst power top heater: 18.8 Kw

Inst power under heater: 14.1 Kw

Idle clock speed: per minute 40th

Power main drive motor: 2.2 Kw

Engine power, Film feed: 0.75 Kw

Air operating pressure: Kg / cm2 7

Water consumption at 12 °: 1t / 1` approx.30

Air consump. at 7 kg / cm2: 1t / cycle 125

Installed power: Kw 50

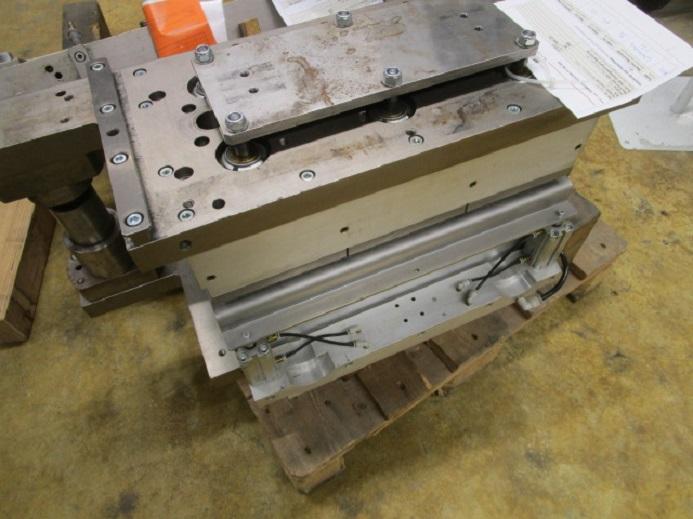

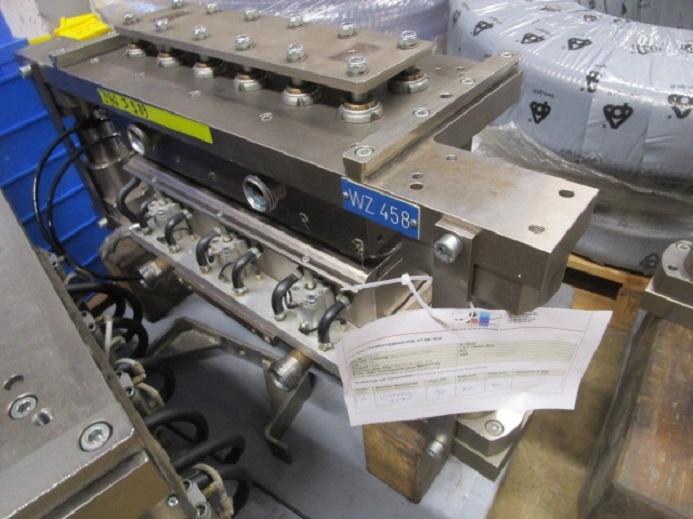

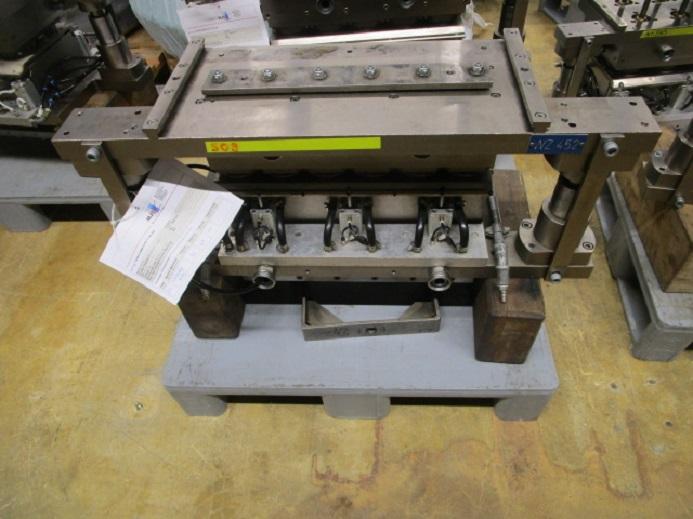

9xTool (table below):

Location: Switzerland

Price exworks as is / where is
