(2022) Arc Specialties Material Removal Robot System – Low Use 6 Axes FANUC Robot

Description

GMB#9155

(2022) Arc Specialties Material Removal Robot System – Low Use 6 Axes FANUC Robot

Brand: Arc Specialties

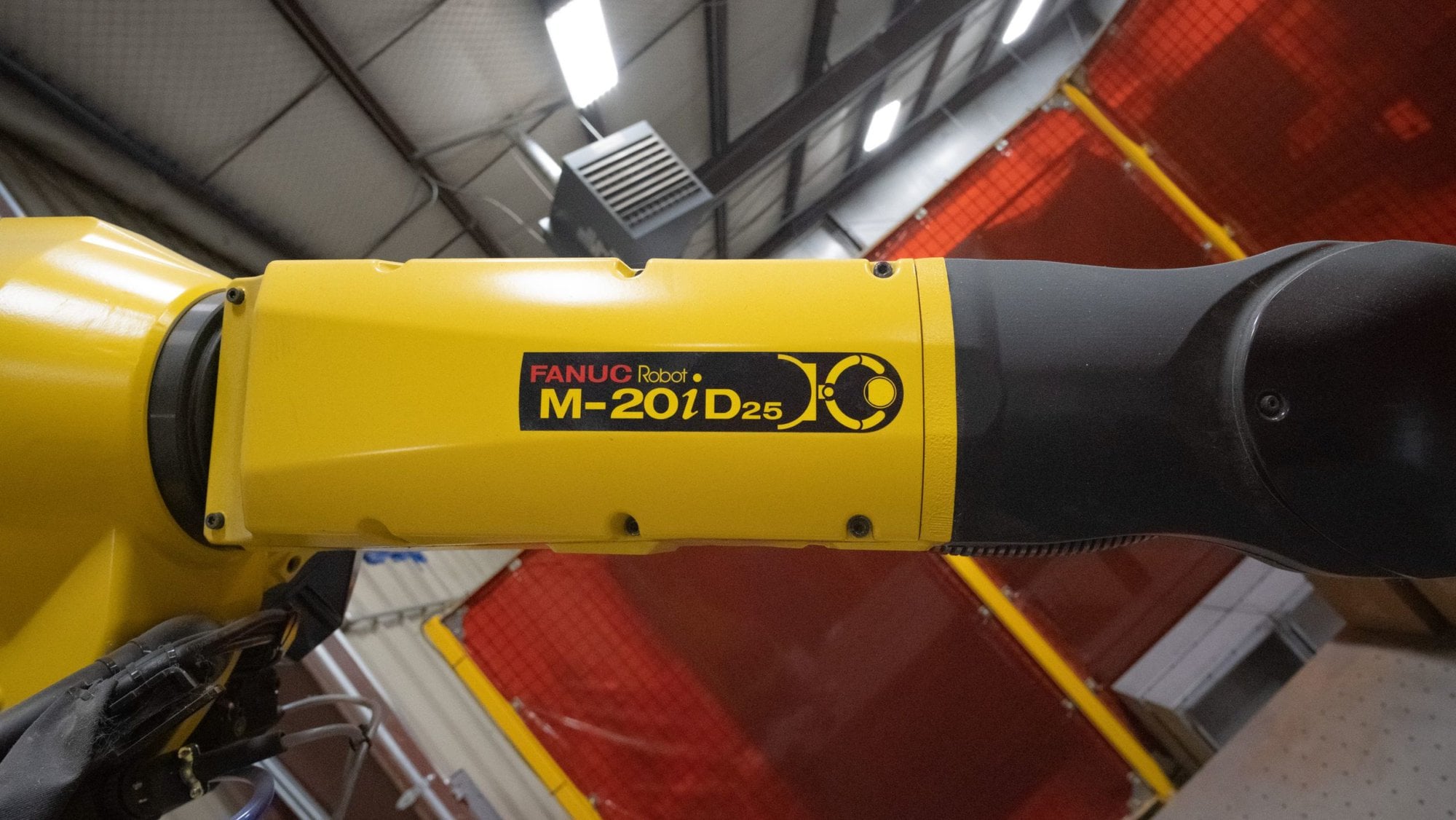

Model: Fanuc M-20iD/25

Year: 2022

Payload Capacity: 25 kg

Reach: 1831 mm

Repeatability: ±0.02 mm

Axes: 6

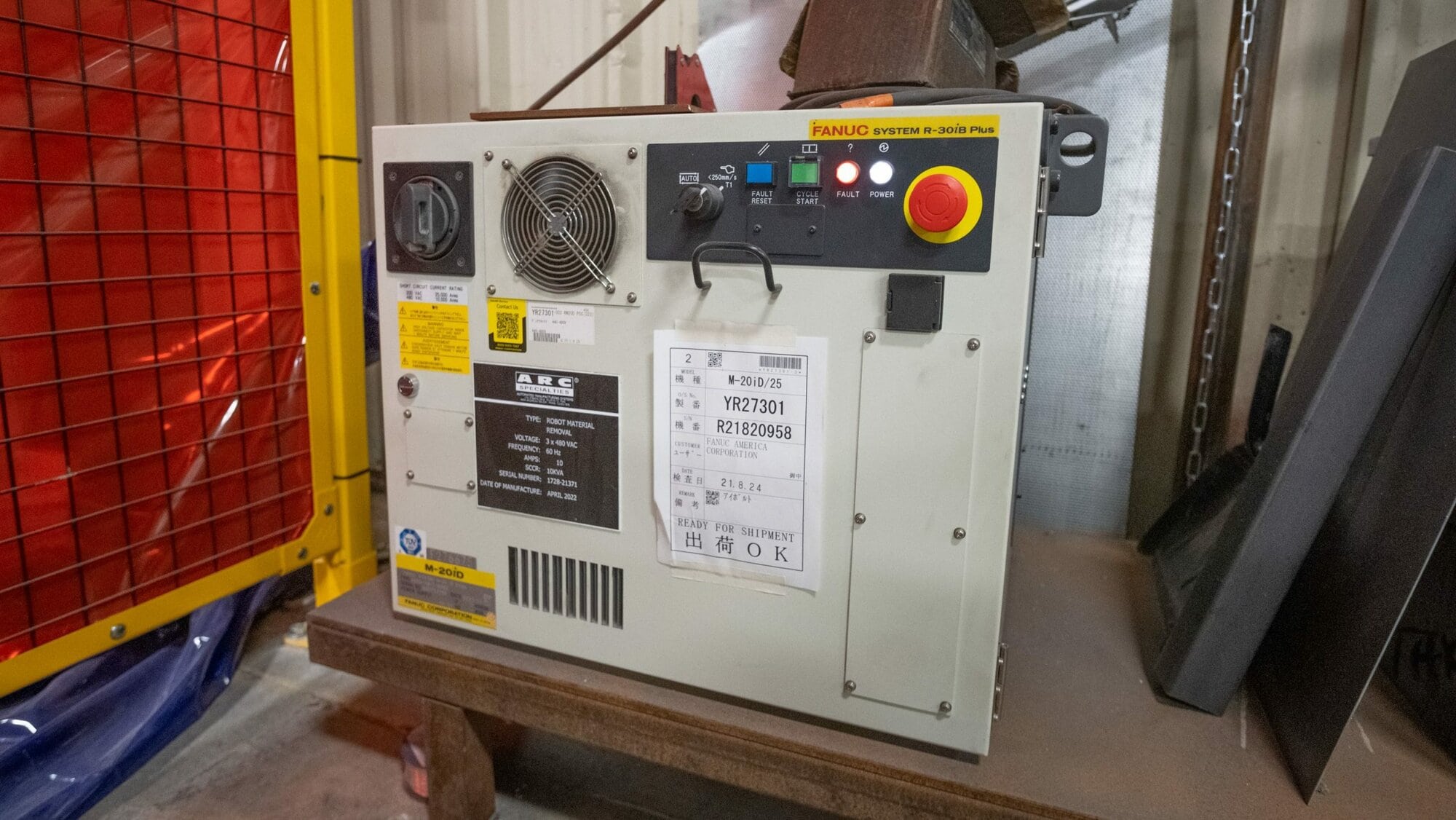

Controller: Fanuc R-30iB Plus

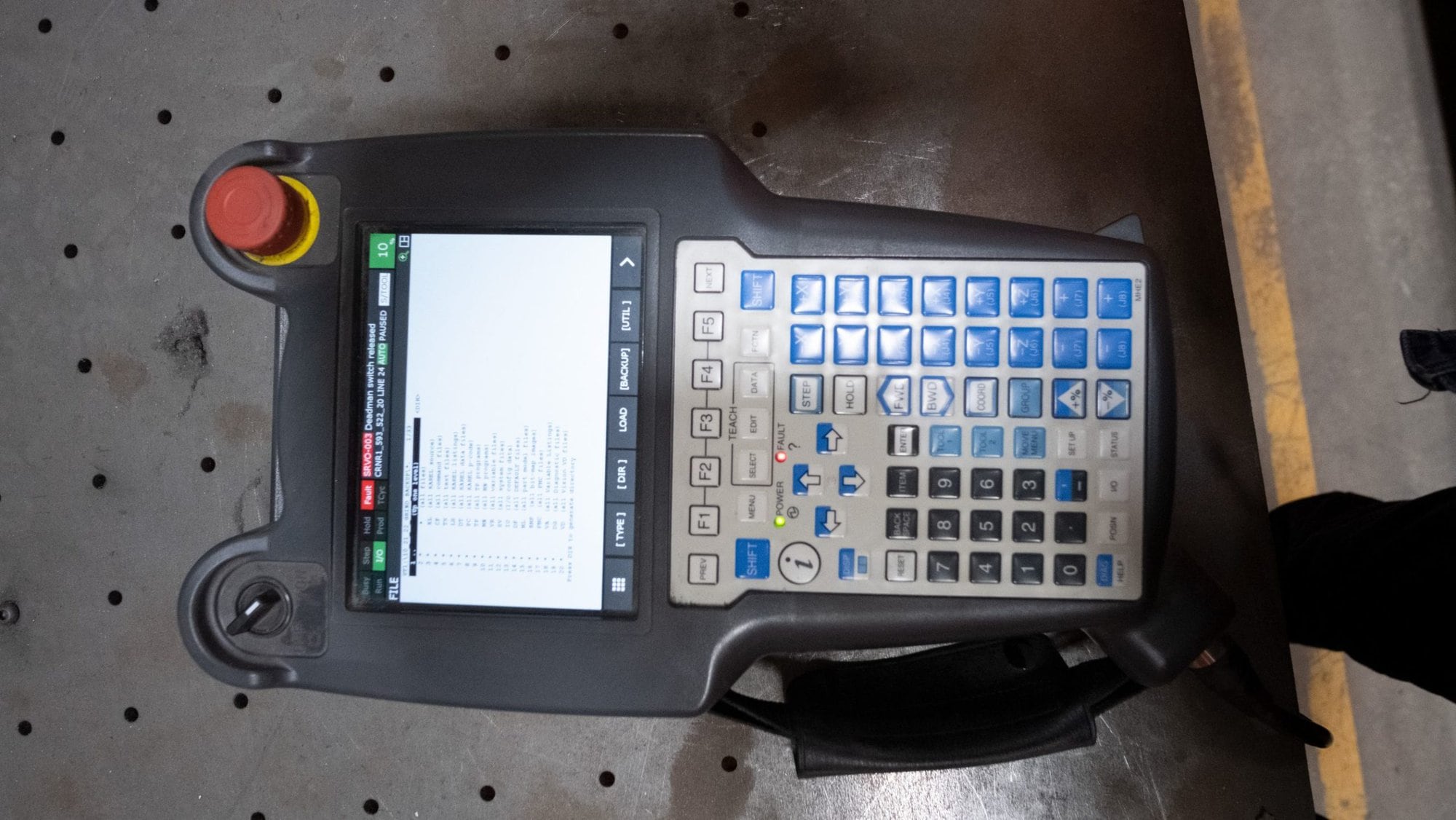

Teach Pendant: Included

Tooling: ATI passive compliant force control

Tool Compliance

Travel: 0.47 in

Tool Compliance Force: 2–59 lbf (pneumatically adjustable)

Power Requirement: 3-phase 480 VACFrequency: 60 HzPower Consumption: 10 kVASafety Enclosure: U-shaped, 10 ft x 15 ft x 7 ft

Installed Options

ATI compliant force-control end effector

Fanuc R-30iB Plus controller with teach pendant

Feature Spotlight

High-speed 6-axis robot with above-average 25 kg payload

Precision compliance tooling ideal for surface finishing applications

Compact, stackable controller for flexible layout integration

Machine Overview

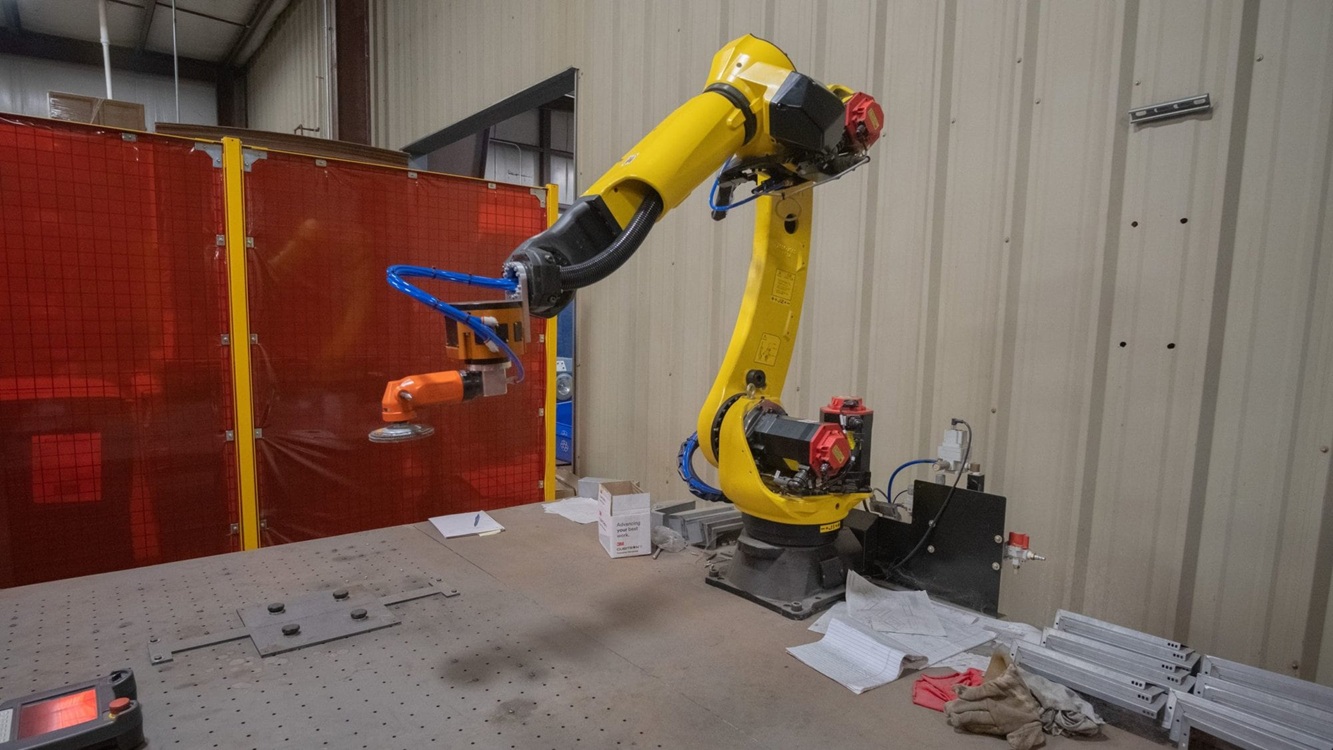

This robotic grinding cell features a Fanuc M-20iD/25 six-axis industrial robot offering a 25 kg payload, 1831 mm reach, and high-precision repeatability of ±0.02 mm. The system is integrated with a Fanuc R-30iB Plus controller and includes an ATI passive compliant tool that enables variable force grinding with 0.47 inches of compliance travel. A full U-shaped safety enclosure provides operational security. Built in April 2022, this unit is suited for material removal applications requiring speed, precision, and flexibility.

Location: USA

Price exworks as is / where is

Product Notice

Listing information contained herein is provided solely by seller. Garesco makes every effort to verify the accuracy of information; however listings are subjective to information obtained by seller and are not warranted by Garesco. Items provided as-is unless otherwise stated or negotiated.

Please note that this description may have been translated automatically. Contact us for further information.
