(2017) 150HP Vecoplan VAZ1600-M-FF (Film & FIBER) SINGLE SHAFT SHREDDER

Description

GMB#67222

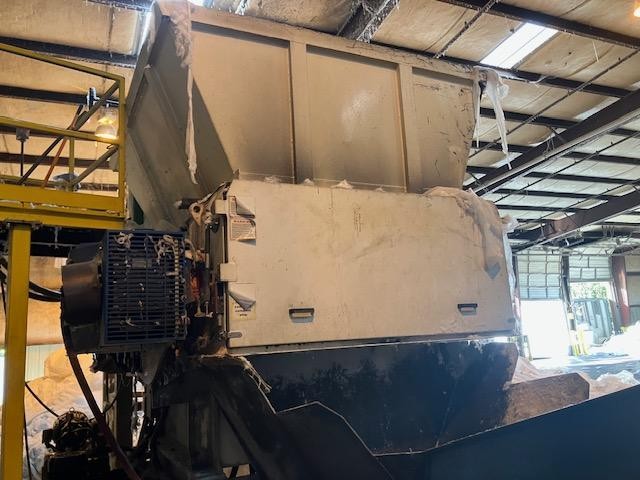

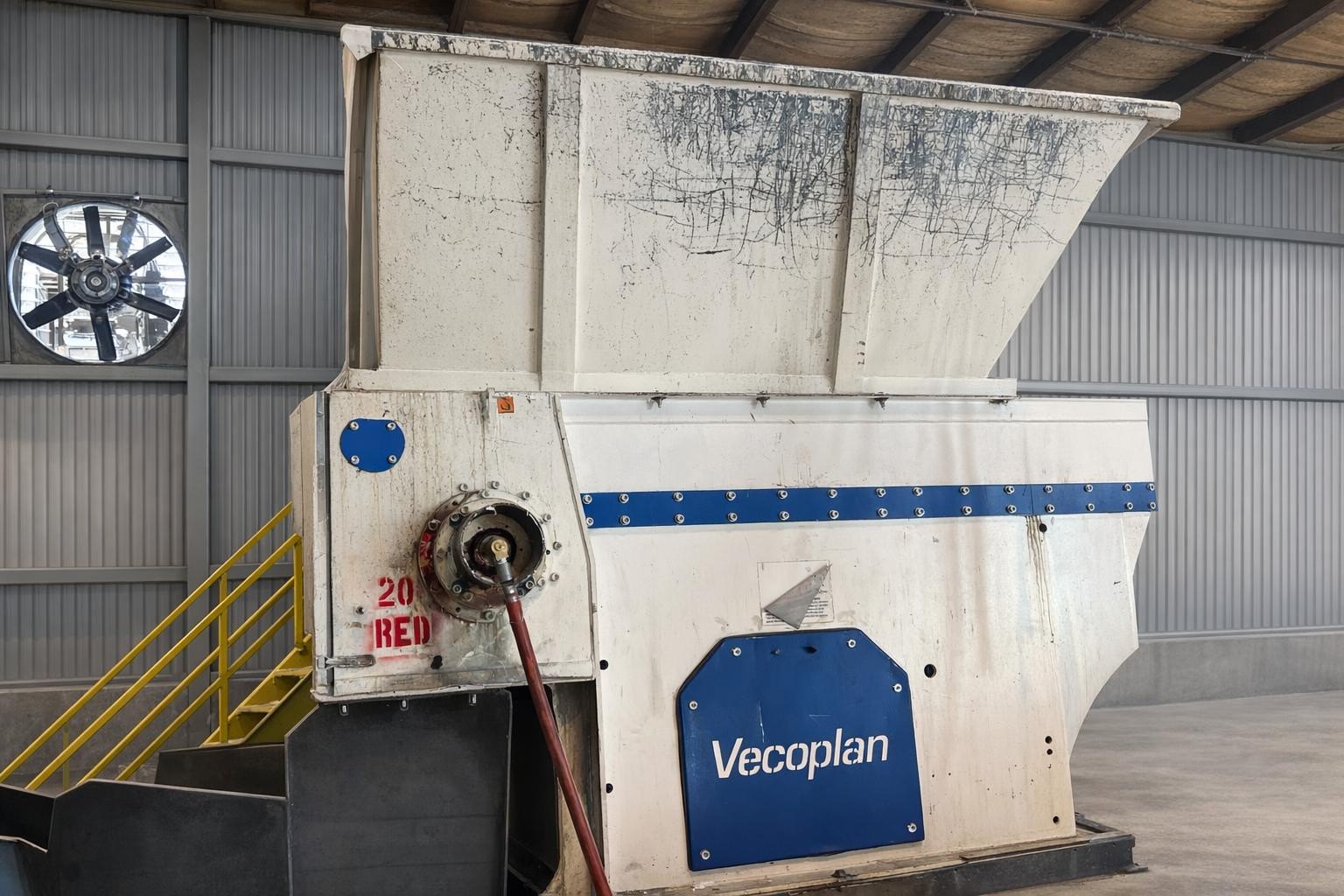

(2017) 150HP Vecoplan VAZ1600-M-FF (Film & FIBER) SINGLE SHAFT SHREDDER

Make:  Vecoplan

Model: VAZ1600-M-FF

Year: 2017

Heavy Duty 5/8″ thick screen with 44 holes

1 spare set of “new” Bed Knives

63″ wide x 80″ long ram dimension with abrasion resistant top plate

15″ diameter, 63″ long, solid stub-shaft design with Interchangeable rotor profiles

to High Production Profile if required at a later date

High manganese content for abrasion resistance

Double-walled cutting chamber to prevent bearing contamination or sidewall wear

5.5 – 6.5 cubic yard capacity

PLC controlled, VFD speed & dual pressure hydraulic ram, external ram guides

for bridge-free interior and simplified maintenance

Fully surrounded chamber, spring-loaded wipers for even wear

4″, reversible, zero-tolerance to prevent material wrapping

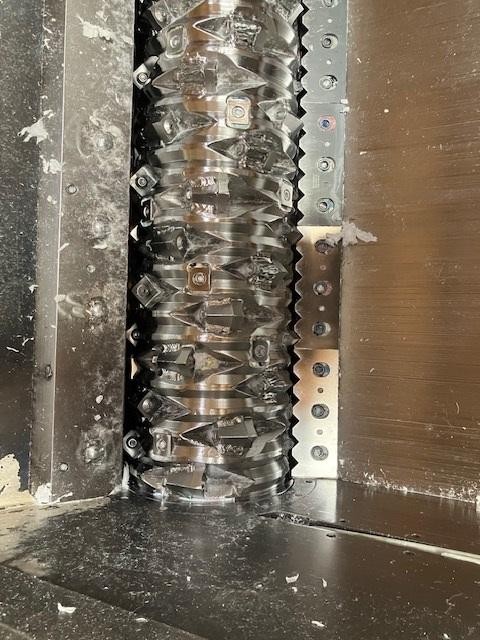

107 total cutting tools – 72 primary – fully supported, 4-way indexable, hardened

compound, concave profile cutters, 35 auxiliary nip cutters

135 RPM, driveshaft power transfer to fluid clutch and solid-case reducer

150 HP, TEFC, 460/3/60, programmable Allen Bradley soft-start unit

Allen Bradley controls package with touch-panel display interface

This machine is fitted with Vecoplan’s excluslve double sidewall construction

with rotating rotor end discs. These features are designed to eliminate frictional

heat generation and sidewall wear from processing material rubbing against the

inner cutting chamber sidewalls. Additionally, this design eliminates the possibility

of bearing contamination.

This unit incorporates Vecoplan’s patented SureCut FIim and Fiber processing

package. Included in this package is a rotor, bedknife and screen configuration

designed to process standard materials as well as fibrous scrap and film. This

package is designed to eliminate material wrapping and screen blockage.

Pre-channeled rotor and bearing housings are included (plumbing optional)

VAZ machine frame

Driveshaft power transfer

Individually adjustable and reversible bedknife sections (6 sections)

Location: USA

Price exworks as is / where is
