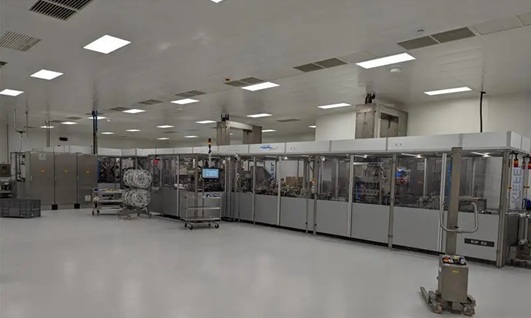

GMB#40372 (2022) Kiefel Technologies KIF 52 Bag Making Machine for forming, filling, and sealing medical-grade bags and IV bags

Description

GMB#40372

(2022) Kiefel Technologies KIF 52 Bag Making Machine for forming, filling, and sealing medical-grade bags and IV bags

Brand: Kiefel

Model: KIF 52

Serial Number: 416-030

Year: 2022

Stainless Steel Grades: 316L

This machine can manufacture and fill 100ml and 250ml infusion bags

UM1

Max. roll diameter – external: 600 mm

Core diameter: 152.4 mm / 6"

Max. film width: 400 mm

Working rollers/reserve rollers: 2/0

AP1

Max. punch pressure: 0.24 kN

Max. press stroke at top: 30 mm

Max. press stroke at bottom: 30 mm

Max. useful surface: 134 x 10 mm

Weight: 100 kg.

Compressed air connection: 6 bar

Cooling water connection: G 3/8″

AP2

Max. punch pressure: 2.0 kN

Max. press stroke at top: 60 mm

Max. press stroke at bottom: 60 mm

Max. useful surface: 440 x 100 mm

Weight: 100 kg.

Compressed air connection: 6 bar

Cooling water connection: G 3/8″

AP3

Max. punch pressure: 2.0 kN

Max. press stroke at top: 60 mm

Max. press stroke at bottom: 60 mm

Max. useful surface: 440 x 100 mm

Weight: 100 kg.

Compressed air connection: 6 bar

Cooling water connection: G 3/8″

IM1

Feed: 490 mm

Max. film width: 250 mm

Compressed air connection: 6 bar

WT2

Max. force: 50 kN

Max. stroke at top: 100 mm

Max. stroke at bottom: 55 mm

Max. useful surface: 490 x 320 mm

Welding procedure: TC

Compressed air connection: 5 bar

Cooling water connection: G 3/8″

AC2

Max. force at top: 1.5 kN

Max. force at bottom: 2.5 kN

Max. stroke at top: 50 mm

Max. stroke at bottom: 50 mm

Max. useful surface: 480 x 240 mm

Compressed air connection: 5 bar

Cooling water connection: G 3/8″

SM1

Stripper: 4x set of products

Stripping stroke of linear unit with servomotor Max.: 1050 mm

Knee lever stroke pneumatic drive: 39 mm

Hold-down clamp stroke pneumatic drive: 40 mm

TL1

Stripper: 4x set of products

Transfer stroke of linear unit with servomotor: 890 mm

Suction pick and place unit stroke of pneumatic drive: 50/50 mm double stroke

Compressed air connection: 5 bar

TL2

Stroke of linear unit with servomotor: 700 mm

Suction pick and place unit / swivel unit stroke of linear unit with servomotor: 100 mm / 90°

Compressed air connection: 5 bar

AP7

Max. vertical servo stroke: 40 mm

Max. horizontal PN stroke: 153 mm

Max. adjustment: +/-6 mm

Compressed air connection: 5 bar

Location: Netherlands

Price exworks as is / where is
