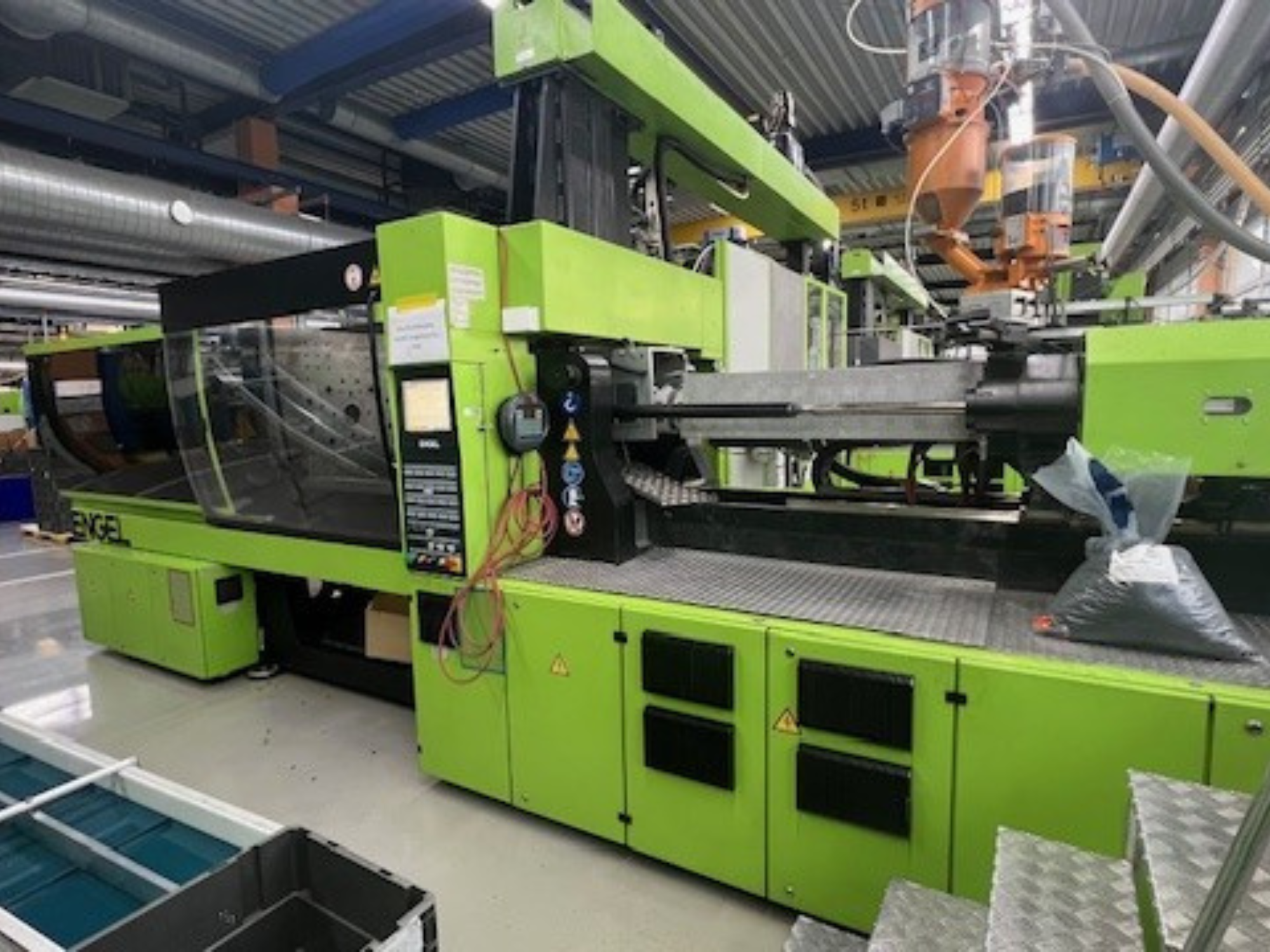

(2007) 300Ton Engel Victory VC1800/300 P Hydraulic injection molding machine With Robot ERC64

Description

GMB#50168

(2007) 300Ton Engel Victory VC1800/300 P Hydraulic injection molding machine With Robot ERC64

Make: Engel

Model: Victory VC1800/300 P

Year: 2007

Production hours: 101,500

Clamping Force: 3000 kN

Power supply: 3 x 400 V + N + PE / 50 Hz

Control system: ENGEL CC200 A02 (15" TFT touchscreen)

Opening stroke: 900 mm

Maximum platen distance: 1,500 mm

Minimum mould installation height: 600 mm

Ejector stroke: 200 mm

Ejector force: 90 kN

Pump drive power: 37 kW

Injection unit version: M3

Available screw diameters: 60 / 70 / 80 mm

Screw diameter installed: 70 mm

Maximum swept volume (70 mm): 1,039 cm³

Maximum screw speed: 226 rpm

Injection rate (70 mm): 385 cm³/s

Specific injection pressure (70 mm): 1,442 bar

Maximum injection pressure (increased): 1,735 bar

Nozzle stroke: 500 mm

Nozzle contact force: 110 kN

Maintenance/Service history: Complete hydraulic hose replacement in 2025. Motor and planetary gearbox replacement in 2021. High-pressure cylinder replacement in 2020. Several cost-intensive main components renewed in recent years.

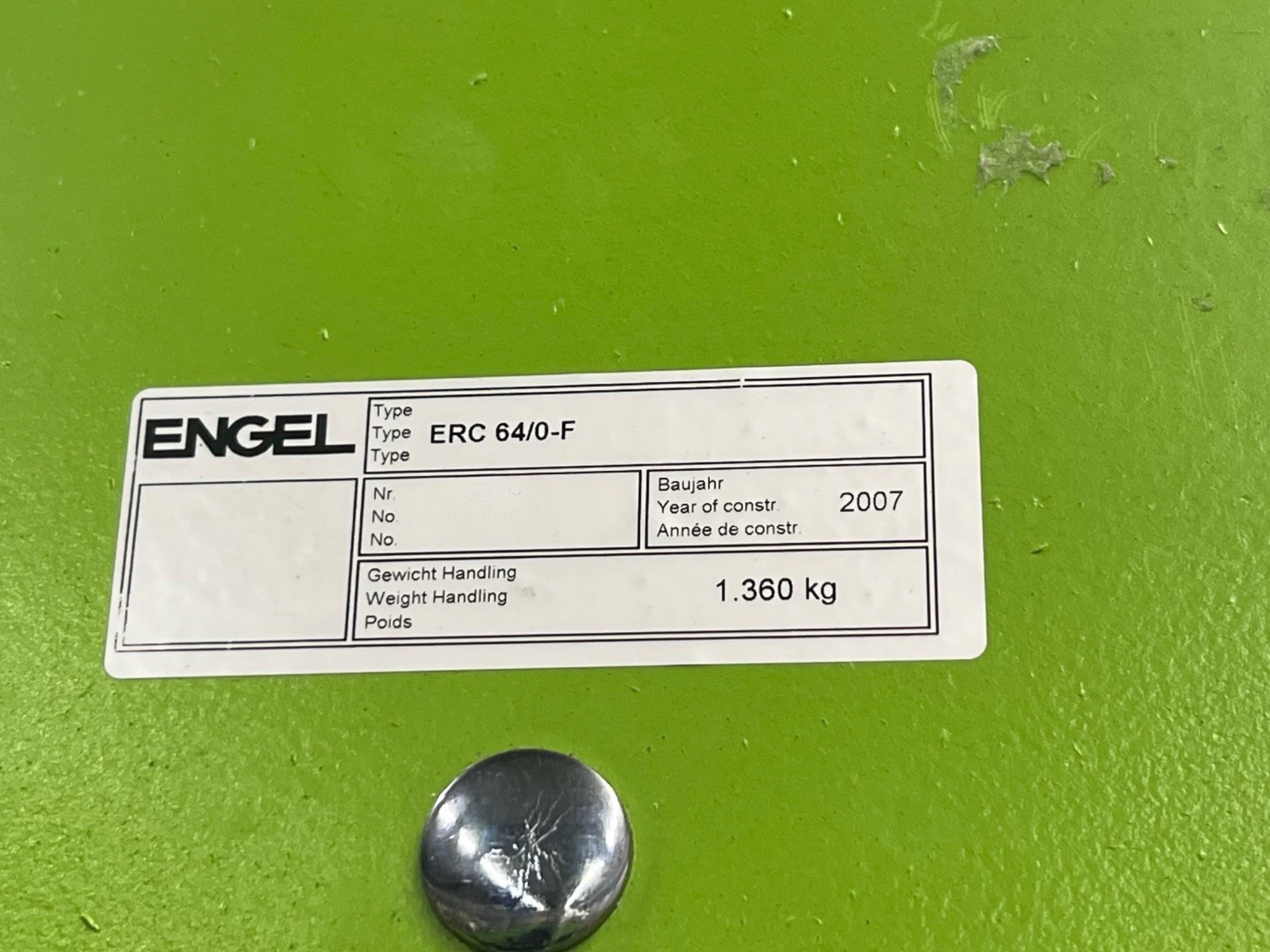

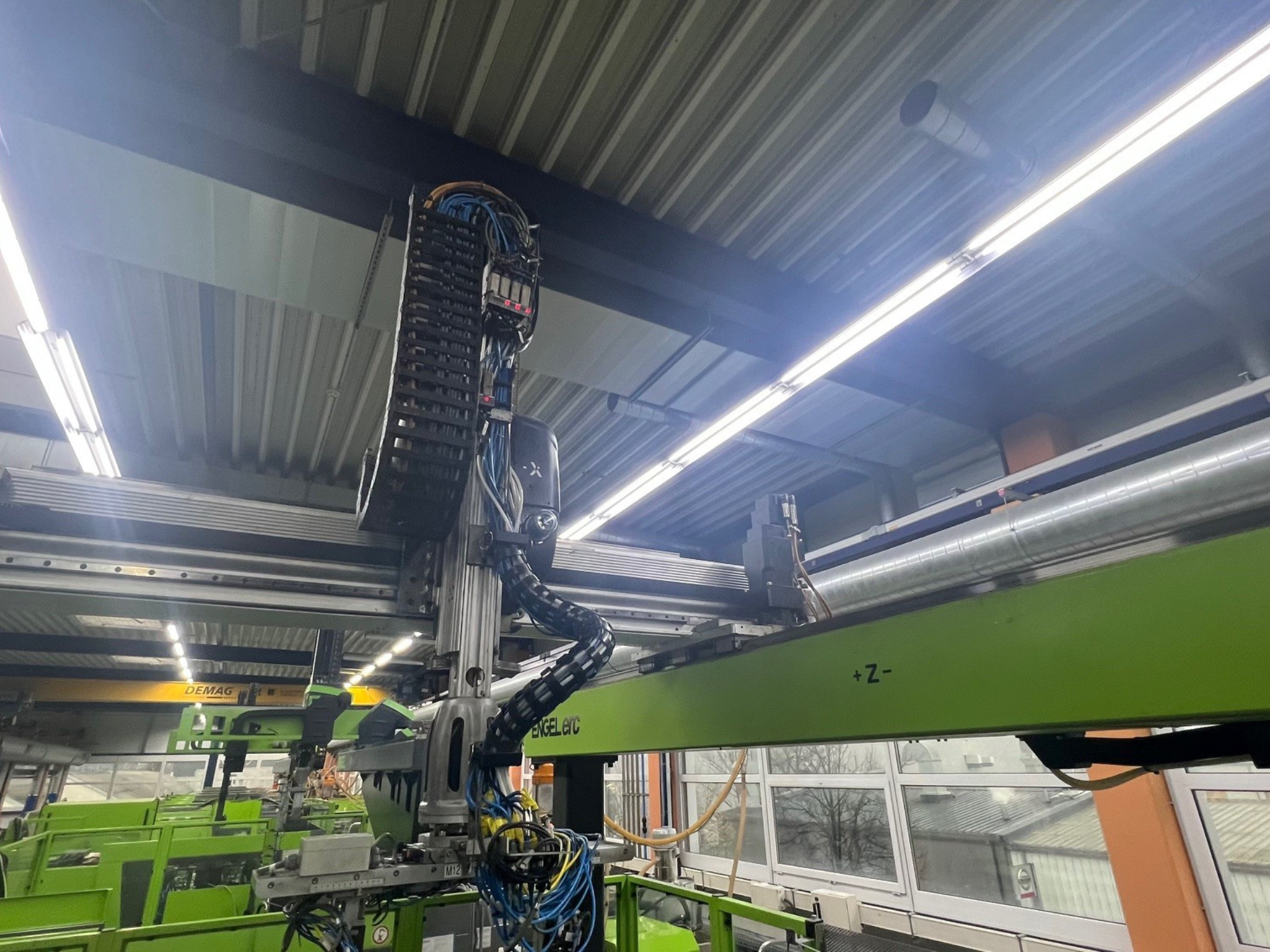

Robot: ENGEL ERC 64 (included)

Axes travel: X 1,200 mm, Y 1,300 mm, Z 3,600 mm

B-axis rotation: -90° to +270°

Vacuum circuits: 4

Pneumatic circuits: 8

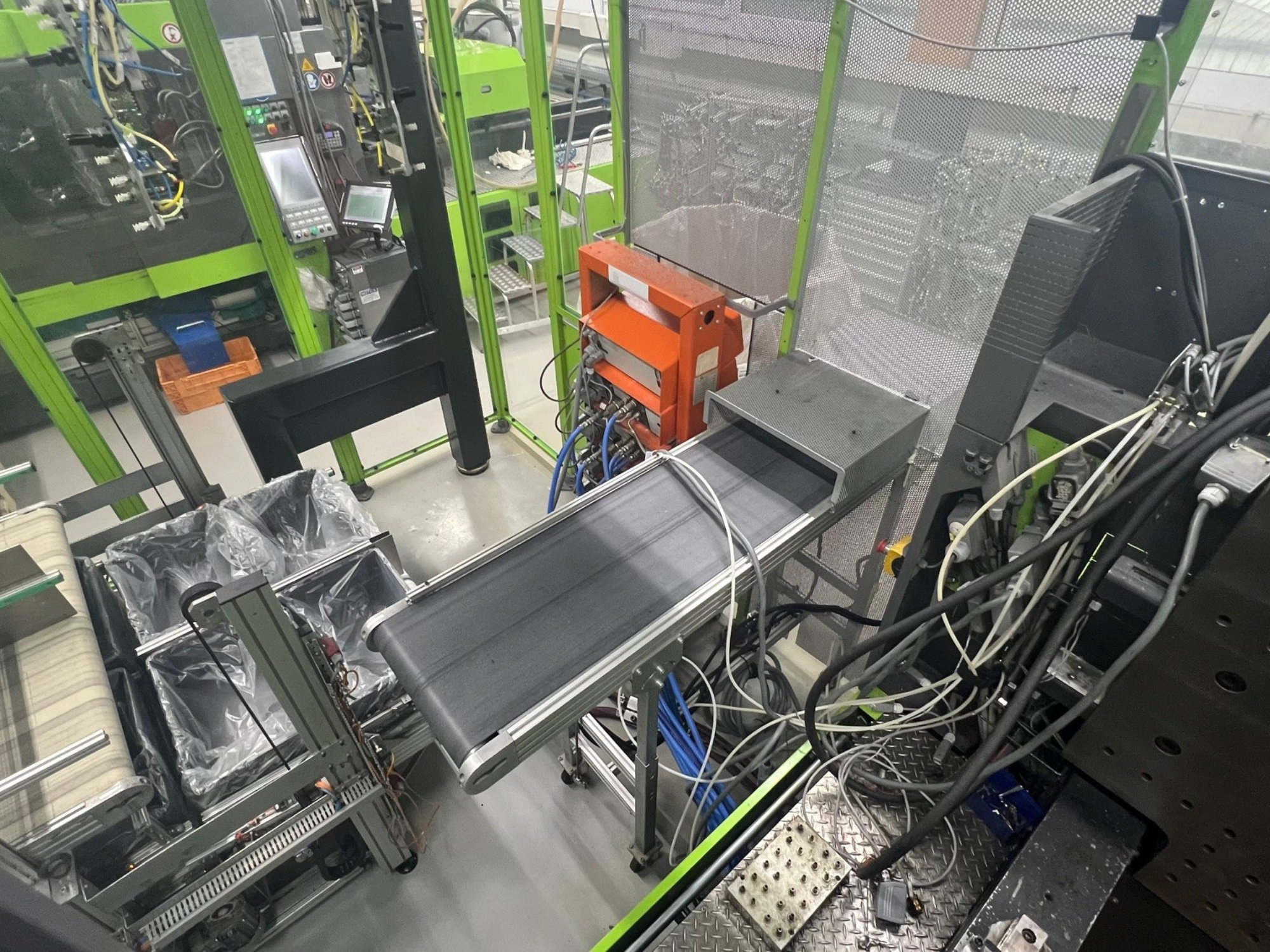

Reject/quality conveyor belt

Box transfer for 600 x 400 x 250 mm boxes

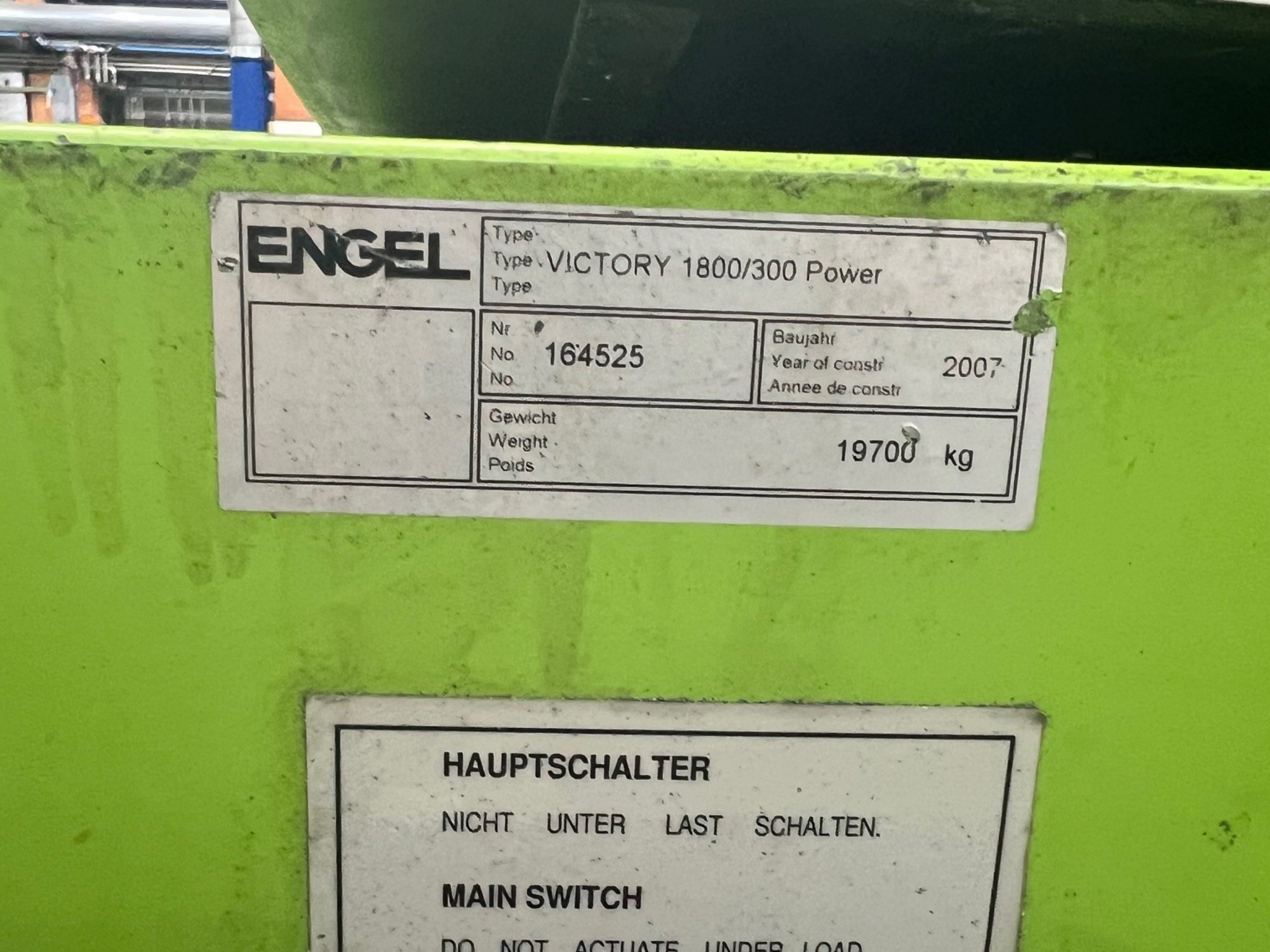

Machine Weight: 19700 kg

Location: Austria

Price ExWorks as is / where is

Note: GWK temperature control tower (optional)

Product Notice

Listing information contained herein is provided solely by seller. Garesco makes every effort to verify the accuracy of information; however listings are subjective to information obtained by seller and are not warranted by Garesco. Items provided as-is unless otherwise stated or negotiated.

Please note that this description may have been translated automatically. Contact us for further information.
