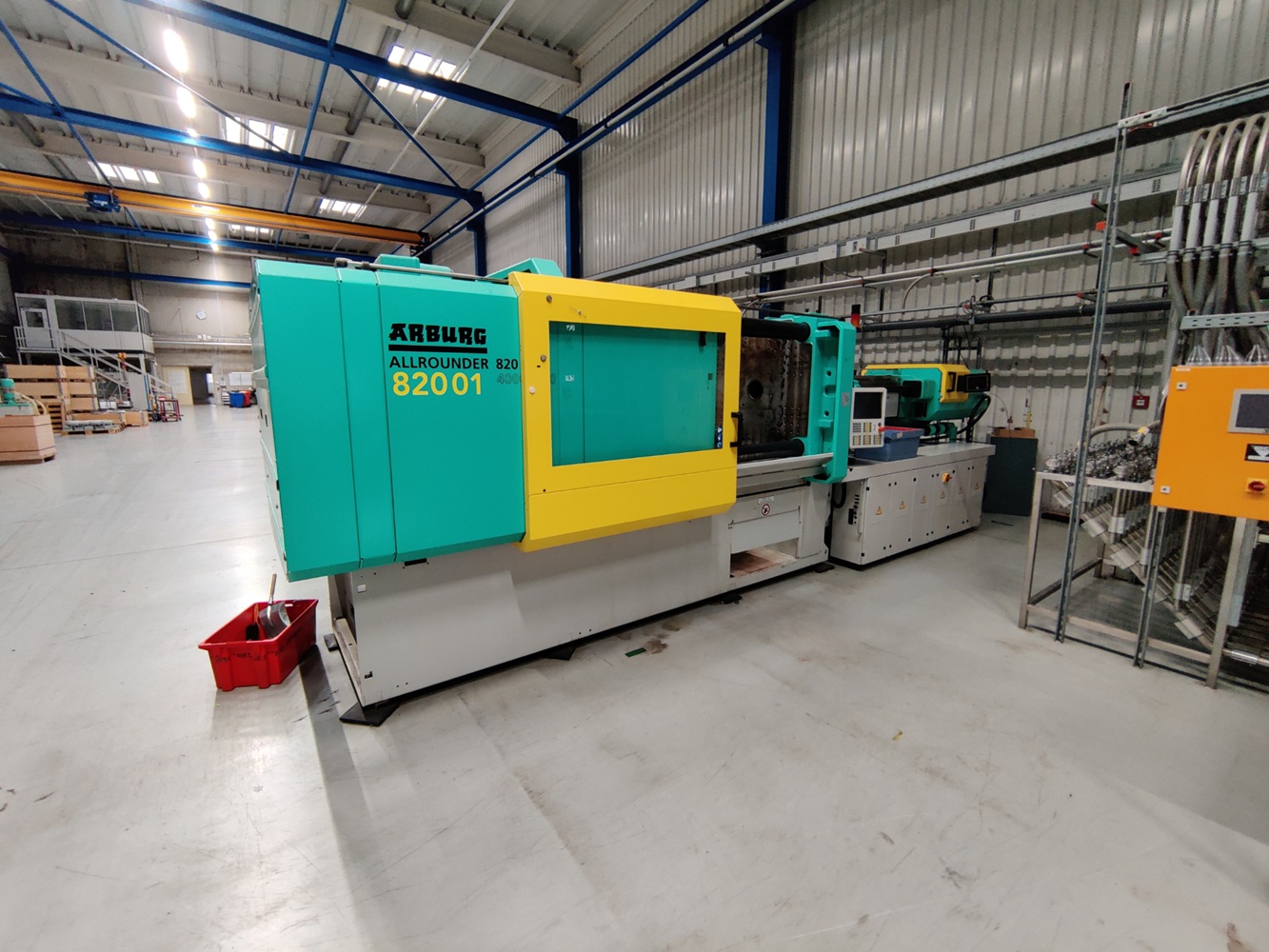

(2016) 400TON ARBURG 820 S 4000-2100 HYDRAULIC INJECTION MOLDING MACHINE

Description

GMB#50177

(2016) 400TON ARBURG 820 S 4000-2100 HYDRAULIC INJECTION MOLDING MACHINE

Brand: Arburg

Model: 820 S 4000-2100

Year: 2016

Length: 8000 mm

Weight: 22700 kg

Width: 2300 mm

Clamping Force: 4000 kN

Screw Diameter: 70 mm

Control system: SELOGICA direct

Distance between tie bars: 820 x 820 mm

Platen size: 1171 x 1171 mm

Max. mould installation height: 850 mm

Max. opening stroke: 700 mm

Max. daylight: 1550 mm

Ejector force: 100 kN

Ejector stroke: 250 mm

Max. weight of movable mould half: 4500 kg

Injection unit: 2100

Heating zones: 6 + nozzle

Drive power (hydraulic pump): approx. 55 kW

Total installed power: 88.9–96.2 kW

Total connected load: 124 kW

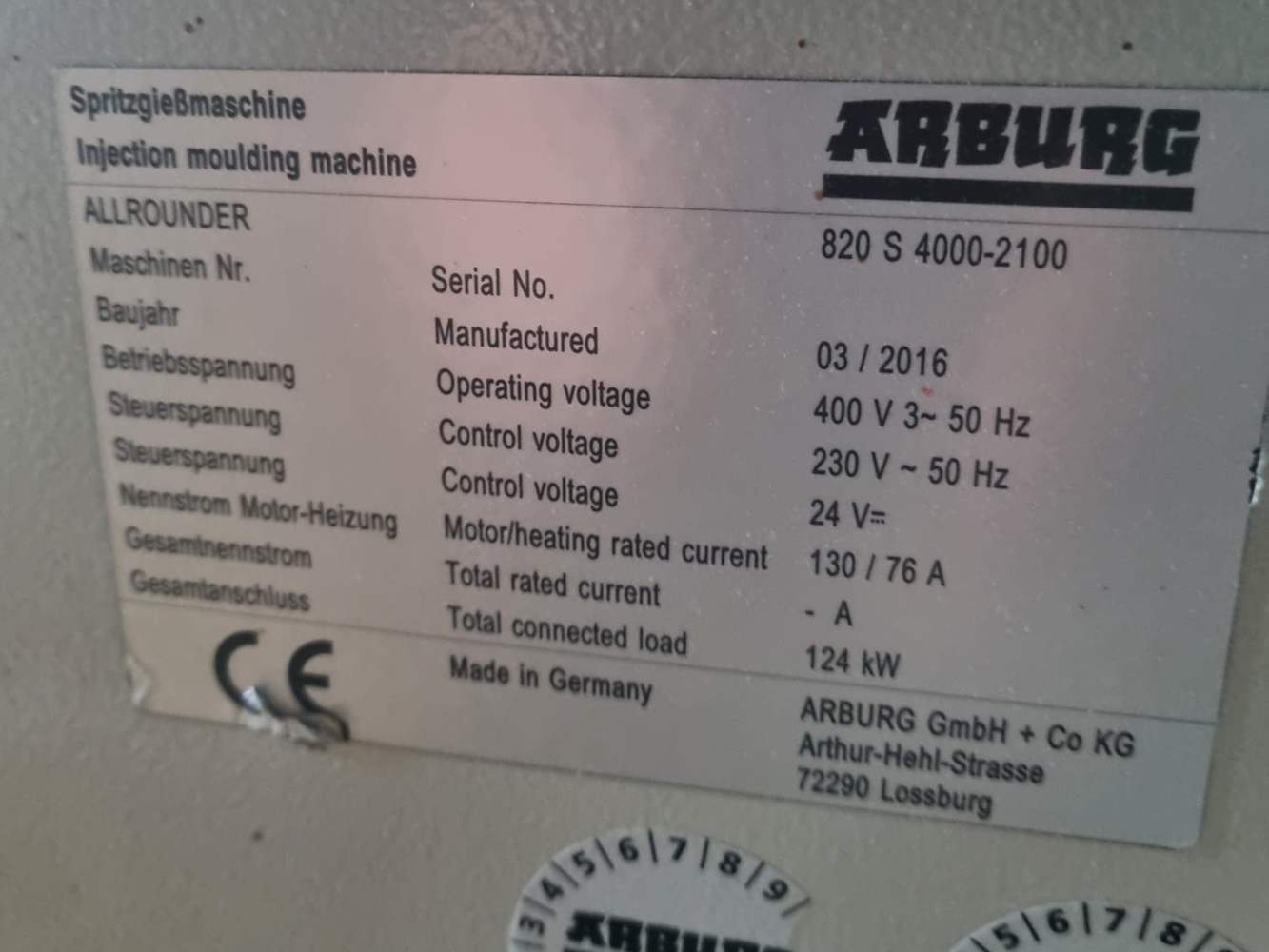

Operating voltage: 400 V 3~ 50 Hz

Machine cycles: 4,157,591

Pump hours: 69,800 h

Automatic operation hours: 58,556 h

Machine options: 2x core pulls, AES Energy Saving System

Additional equipment

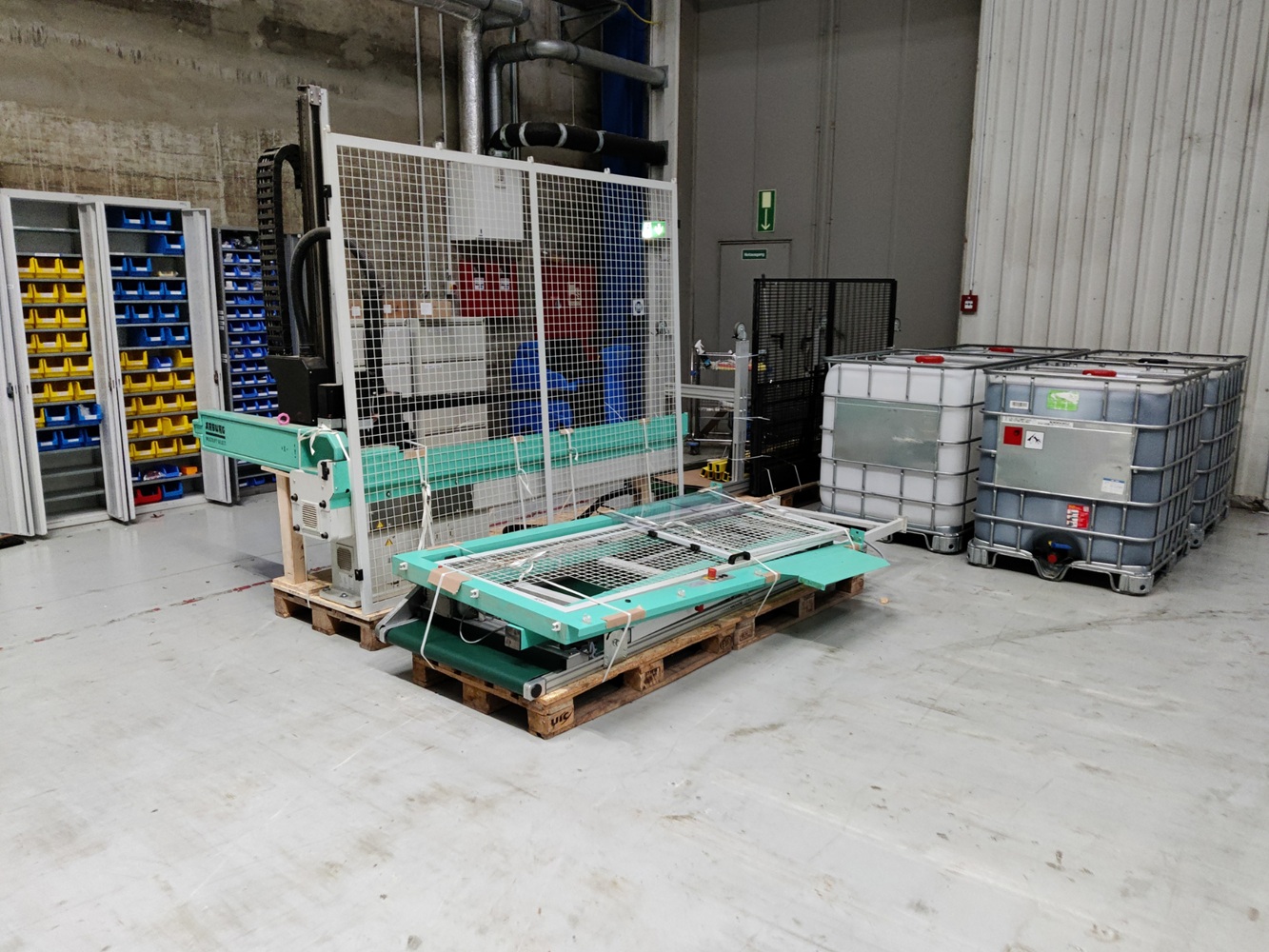

ARBURG Multilift Select 15 kg robot (2016, transverse)

Load capacity: 15 kg

Y-axis stroke extension: 1400 mm

C-axis: pneumatic 0/90°, 28 Nm torque

Vacuum equipment: 2 circuits (23 l/min each)

Gripper interface: 8 inputs / 4 outputs (programmable)

Valve equipment: 5/3-way valve

Safety: monitored adjustable workspace

Conveyor belt: 800 x 2500 mm

Air blow unit

Location: GERMANY

Price exworks as is / where is
