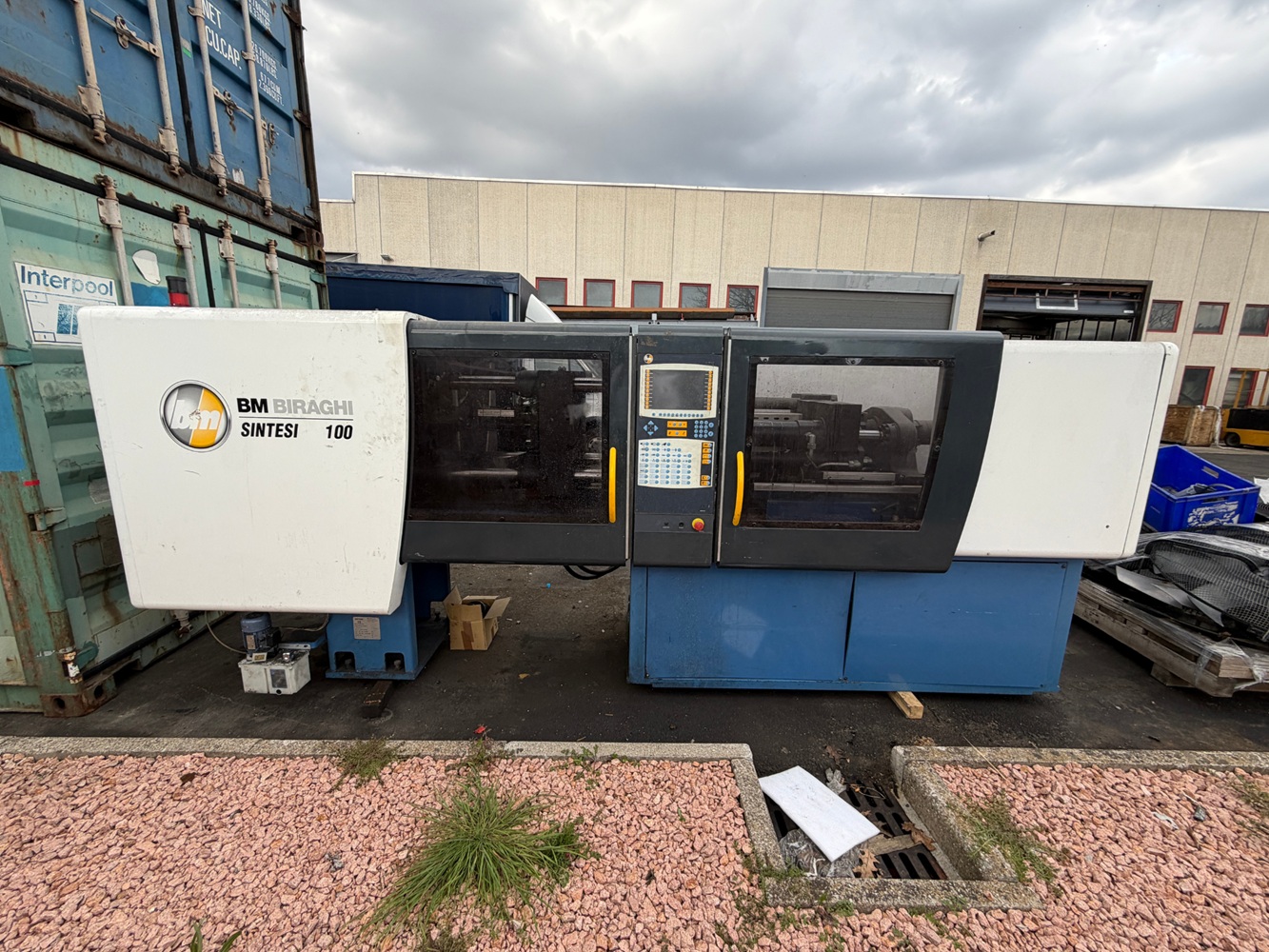

(2009) 100TON NEGRI BOSSI BM BIRAGHI SINTESI 100 HYDRAULIC INJECTION MOLDING MACHINE

Description

GMB#50178

(2009) 100TON NEGRI BOSSI BM BIRAGHI SINTESI 100 HYDRAULIC INJECTION MOLDING MACHINE

Brand: Negri Bossi

Year: 2009

Model: BM BIRAGHI SINTESI 100

Height: 1990 mm

Length: 4480 mm

Weight: 4900 kg

Width: 1217 mm

Clamping Force: 1000 kN

Opening stroke: 370 mm

Platen size: 610 × 550 mm

Distance between tie bars: 420 × 360 mm

Min/Max mould height: 120 / 450 mm

Ejector force: 34 kN

Ejector stroke: 120 mm

Max mould area (250 bar): 400 cm²

Injection unit (screw options)

32 mm: L/D 24; injection volume 169 cm³; shot weight (PS) 156 g; injection rate 95 cm³/s; injection pressure 2352 bar; plasticizing capacity (PS) 18 g/s

37 mm: L/D 21; injection volume 219 cm³; shot weight (PS) 202 g; injection rate 127 cm³/s; injection pressure 1759 bar; plasticizing capacity (PS) 20 g/s

45 mm: L/D 17; injection volume 324 cm³; shot weight (PS) 298 g; injection rate 188 cm³/s; injection pressure 1189 bar; plasticizing capacity (PS) 22 g/s

General injection data

Screw torque: 440 Nm

Max screw speed: 440 rpm

Barrel heating power: 7.5 kW

Heating zones: 3 + 1

Nozzle contact force: 49 kN

Electrical and hydraulics

Motor power: 15 kW

Total installed power: 22.5 kW

Hydraulic oil capacity: 150 L

Footprint: 5.4 m²

Location: Italy

Price exworks as is / where is
