(2014) Meheen R Series Complete Bottling Line - Lightly Used

Description

GMB#40382

(2014) Meheen R Series Complete Bottling Line - Lightly Used

Brand: Meheen

Model: R Series

Year: 2014

Previously ran 14oz glass bottles of Kombucha with 28mm Roll on Pilfer Proof (ROPP) caps, and a 40oz bottle, drawings of bottles and caps previously ran available upon request

System includes:

Excel Packaging Rotary Table, RSM-800A Rotating table for manual depalletization

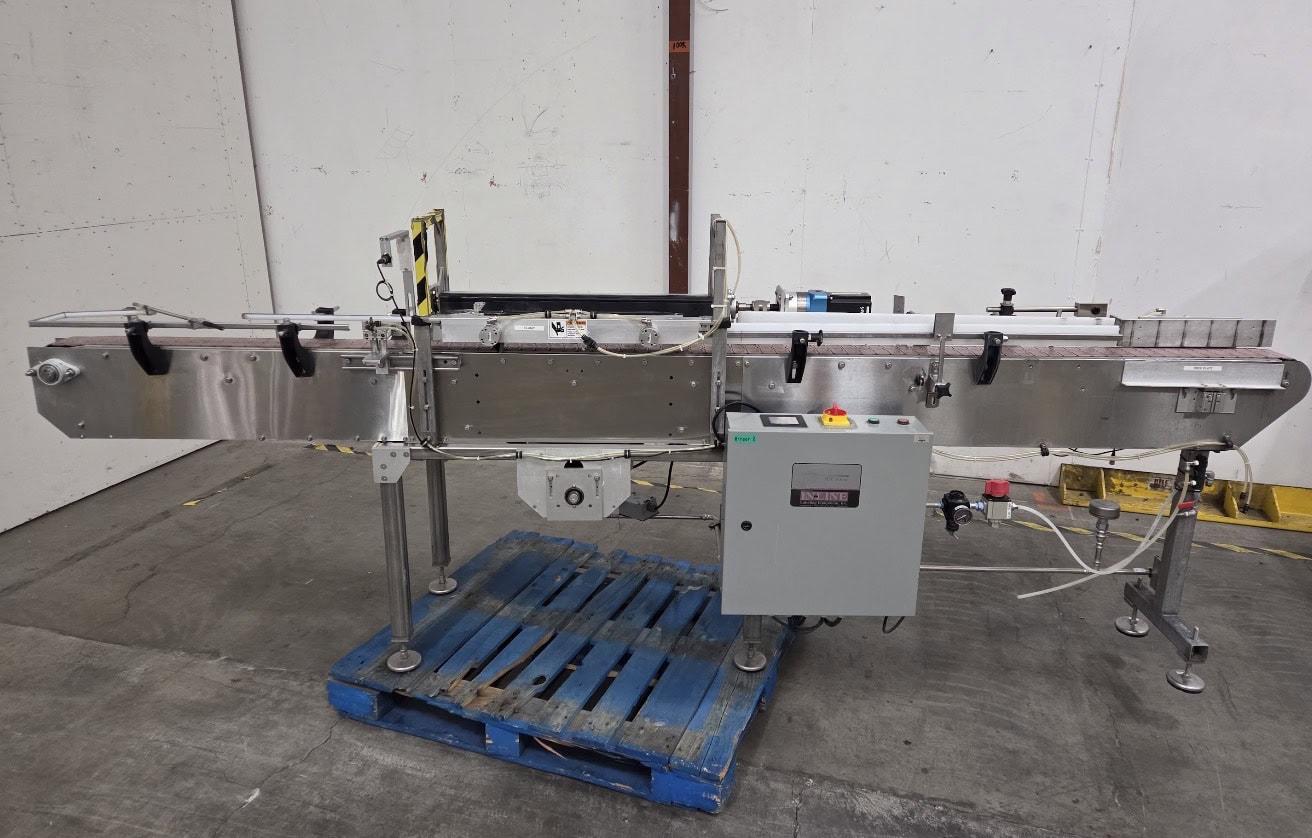

In-Line Packaging Systems RSC Automatic Rinser

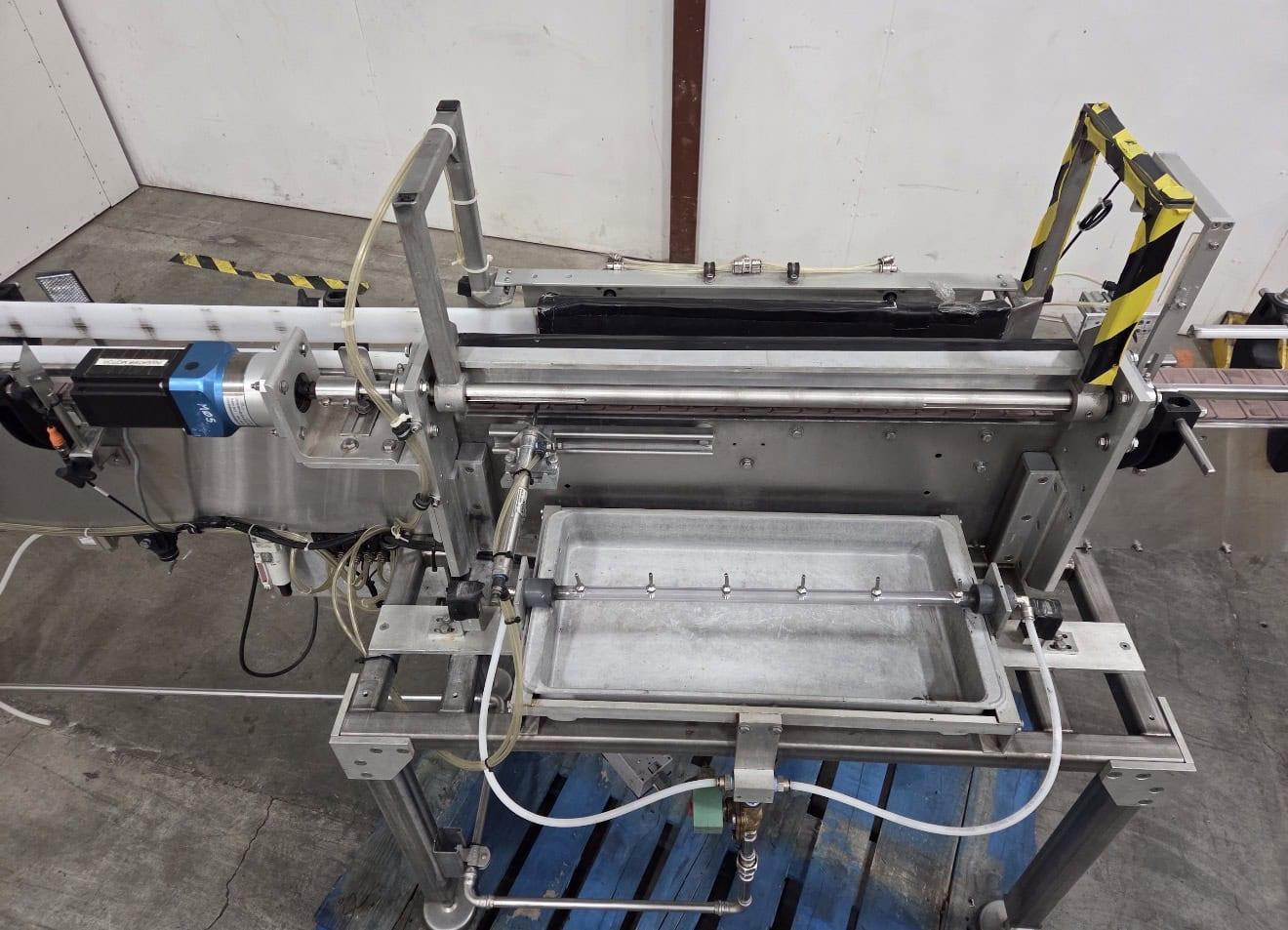

The Rinser is designed to take incoming containers, invert them for rinsing or air cleaning, return them upright, and continue down the production line. The machine functions in this way:

– Bottles are counted as they enter the rinser area by the counting eye. When the bottles

per cycle count is complete (this count is changed in the Systems settings screen) the

holdback gate fires, preventing any further bottles from entering the rinser.

– After the completion of the clamp delay, the bottles are clamped and held.

– A pivot delay starts, and when complete, the pivot move begins to invert the bottles.

– The pivot speed, pivot move length, accel and decel parameters control how the inverter mechanism inverts the bottles to position them above the rinser manifold.

– After the move is complete, a water jet delay begins and when complete the water pump turns off, forcing water up through the water jets and into the bottles.

– The water is on for the water jet dwell and then stops. The drain length allows the water

to run out and drain from the bottles.

– When that is complete, the inverter mechanism returns the bottles back to the conveyor.

– A clamp release delay completes and the bottle clamp turns off.

– A Front gate delay then begins. When the delay is complete, the front gate opens and

allows the rinsed bottles to exit. The gate remains open the length of the front gate dwell, which should be just enough time for the containers to pass the front gate. After the dwell the gate closes to start collecting the next cycle.

– The backup photoeye, if blocked for the length of the Discharge backup delay, will

prevent the front gate from opening. It will remain closed until the backup eye clears at

which time the entire cycle will resume.

– When the front gate opens, a holdback gate retract delay begins. When complete, the holdback gate opens and allows new containers to pass the counting eye.

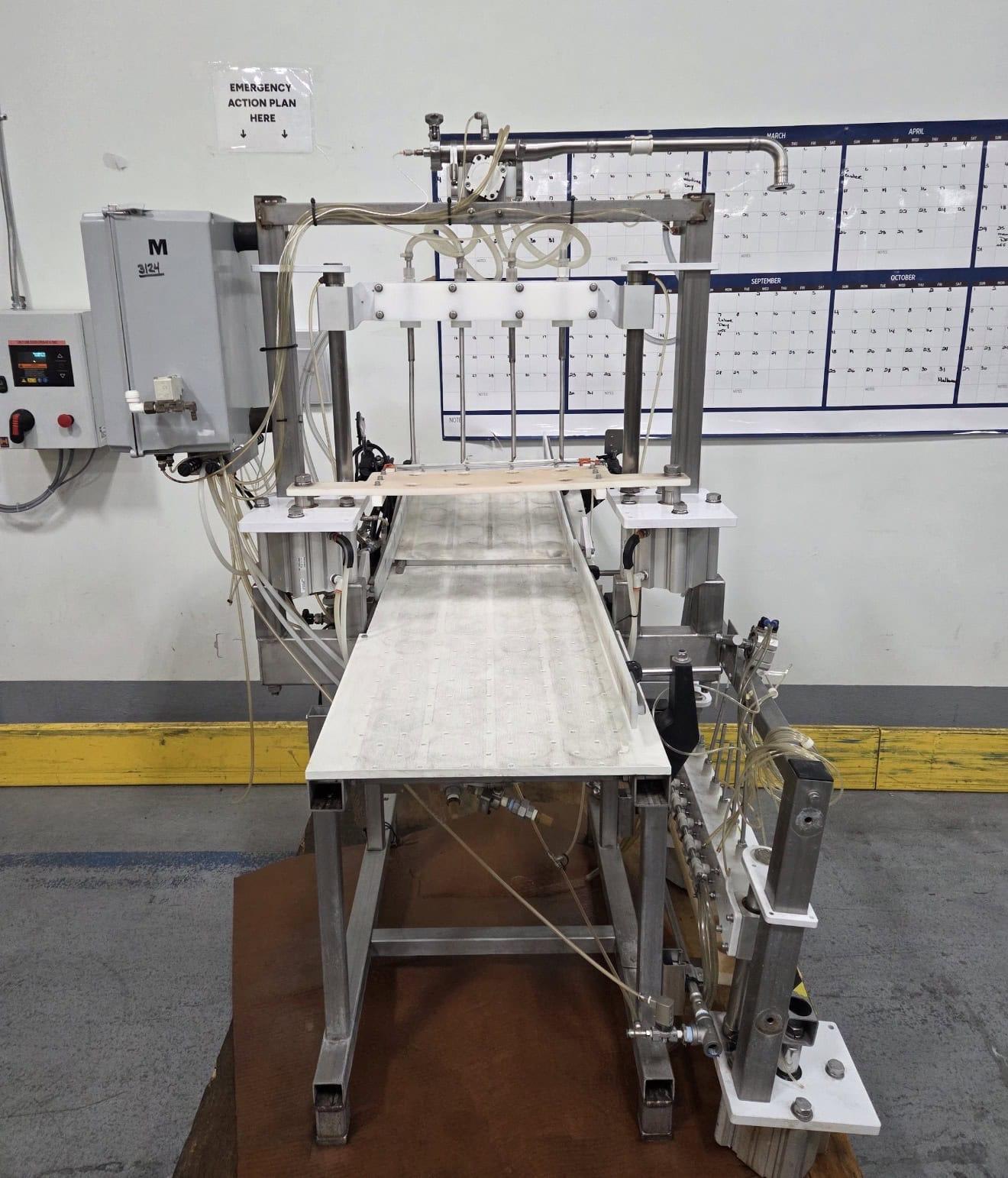

Meheen R-Series Bottle Filling Machine

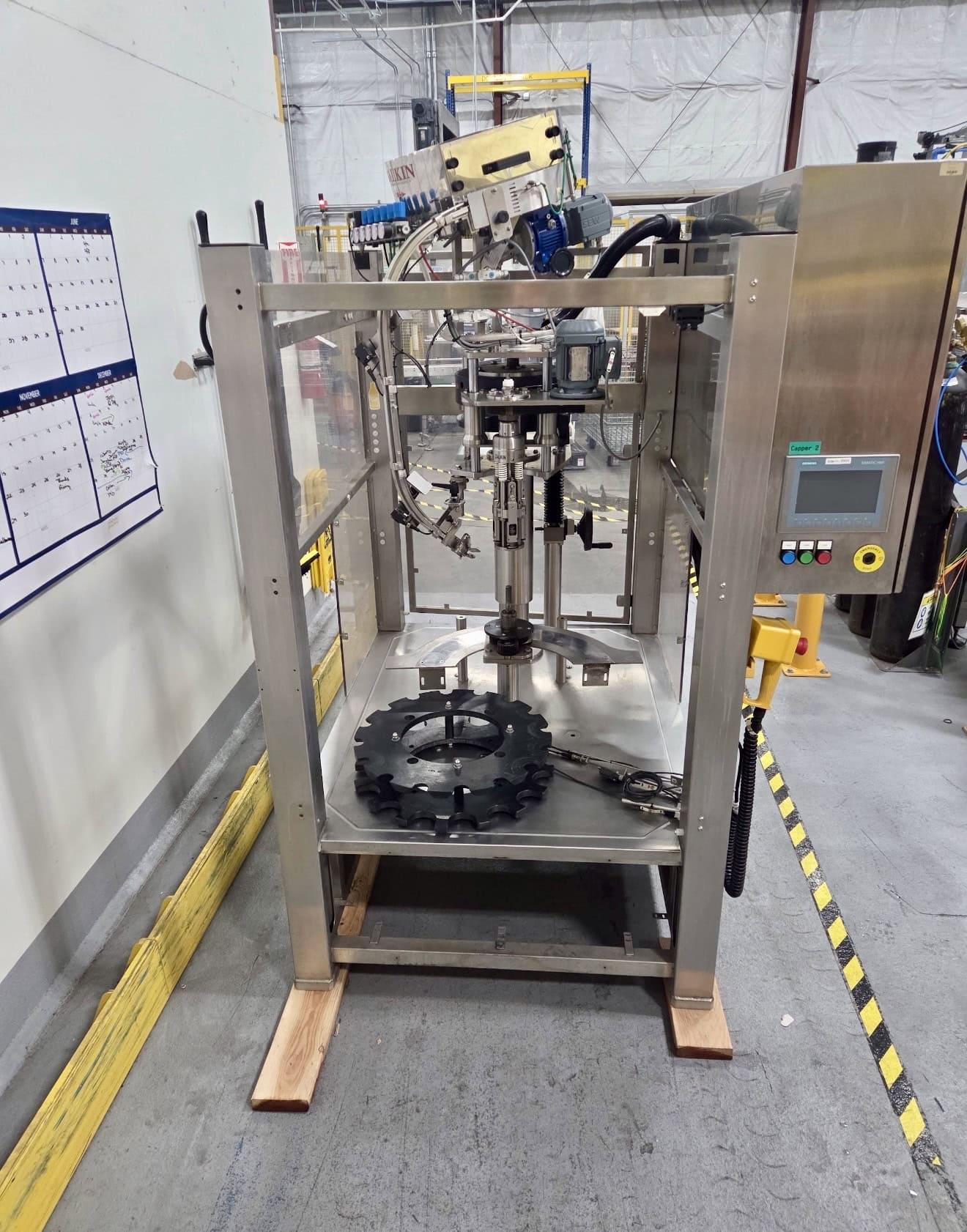

Zalkin ROPP Capper

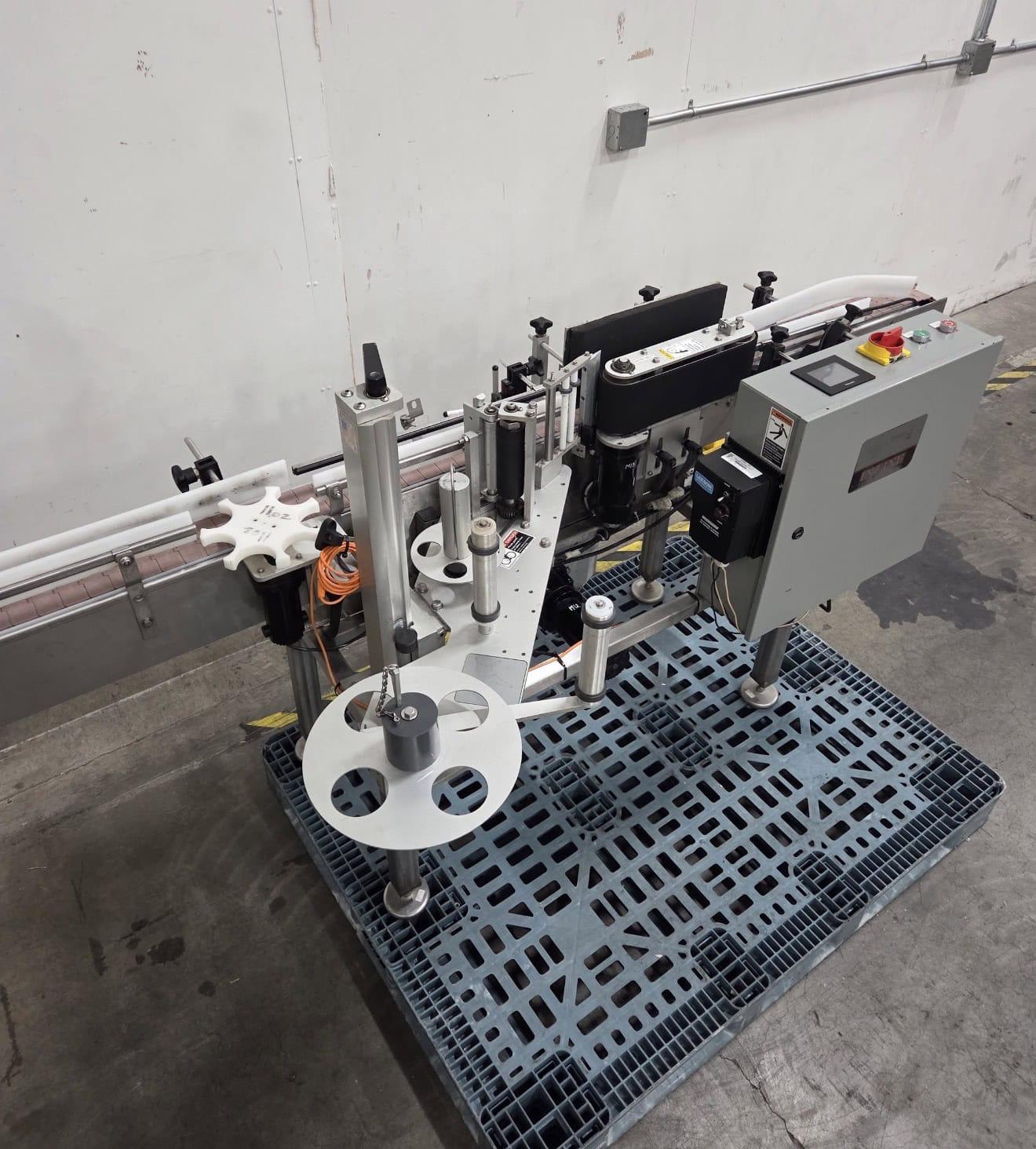

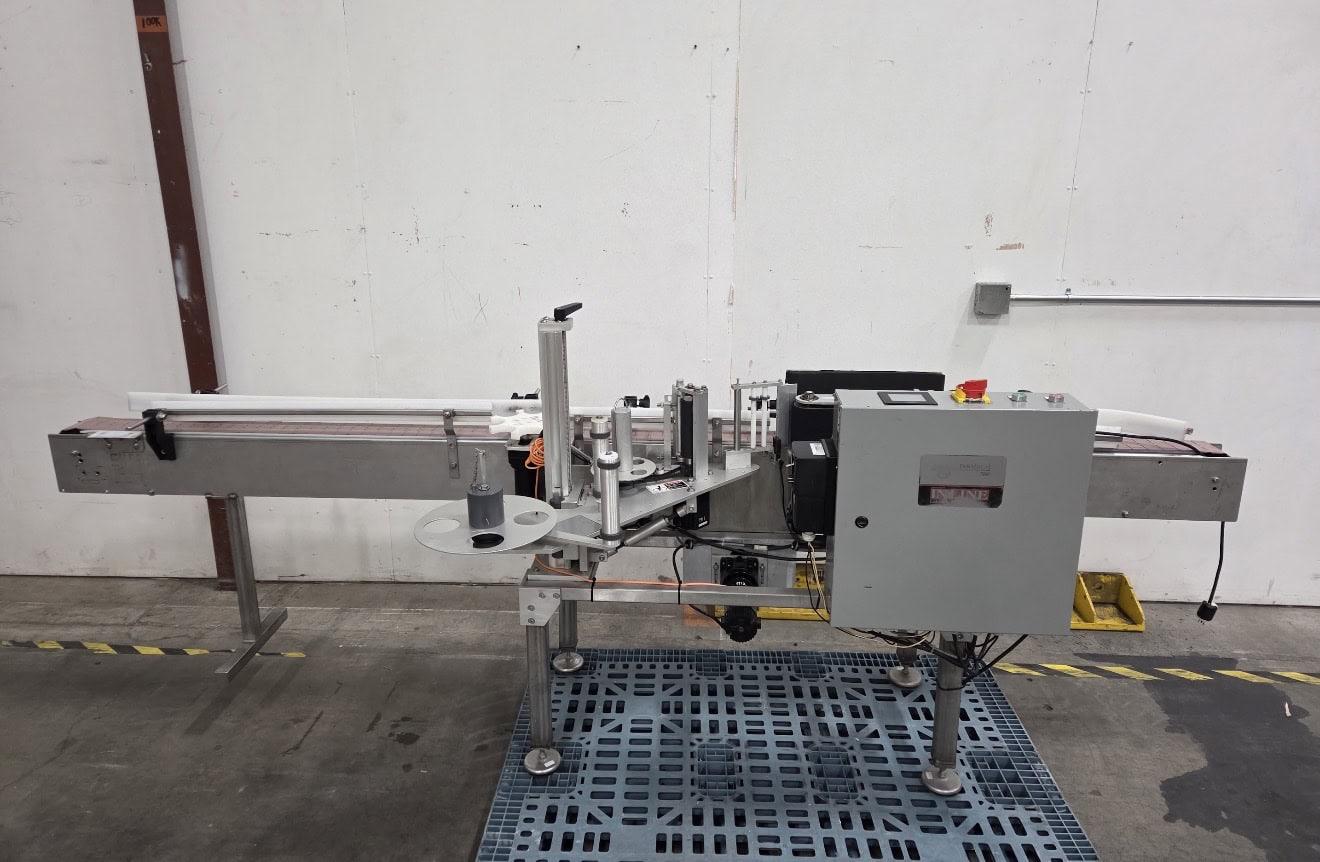

Inline-Packaging Equipment Paradigm 700VS Labeler: The model Paradigm 700VS is a fully automatic labeling machine capable of applying labels to

cylindrical containers.

– Bottle dimensions: 1 inch to 5 inches

– Label height: 1 inch to 4 1/2 inches

– Label Width (length): 2 inch to 12 inches long

– Speed: Variable to 700 inches per minute

– Maximum Rate: 60 Labels/minute

– Label Gap: 1/8 inch standard (up to 1/4 inch on some)

– Core size: 3 inches in diameter

– Roll Size: Maximum 12 inches

– Product Detection: Photoelectric eye –Background Suppression

– Label Detection: Photoelectric eye – Through Beam

– Power Requirements: 120 VAC, 60 hz, 3 amp

– Compressed Air 3-4 cfm @ 65 psi if needed for coder

Rotary accumulation table

Location: USA

Price exworks as is / where is
