(2021) 2200TON UBE 2200MMX-470 SERVO HYDRAULIC INJECTION MOLDING MACHINE

Description

GMB#50179

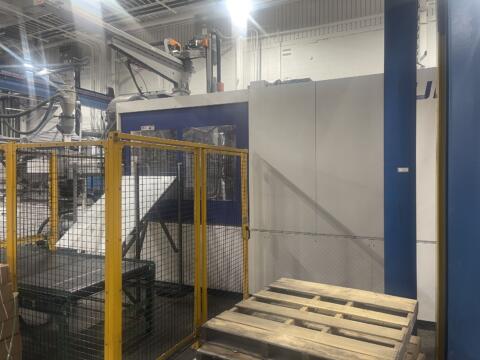

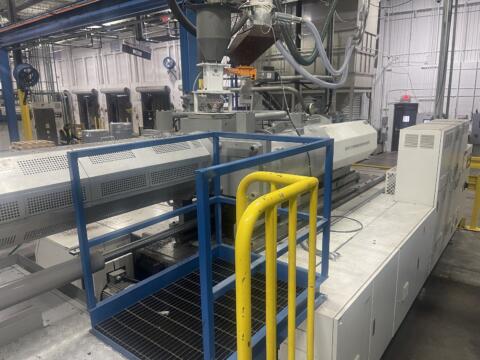

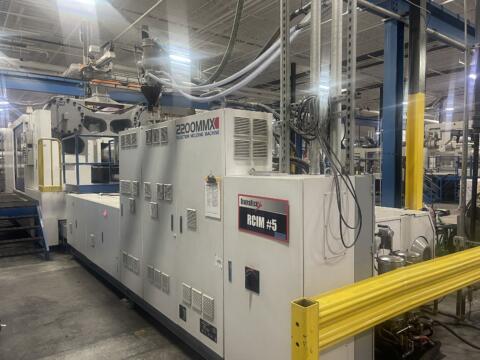

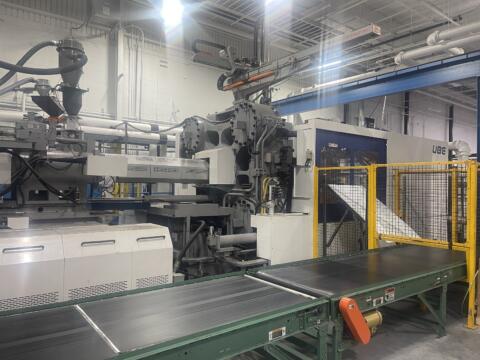

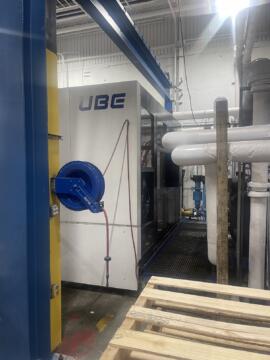

(2021) 2200TON UBE 2200MMX-470 SERVO HYDRAULIC INJECTION MOLDING MACHINE ONLY 28,193 HOURS

Brand UBE

Model 2200MMX-470

Year 2019

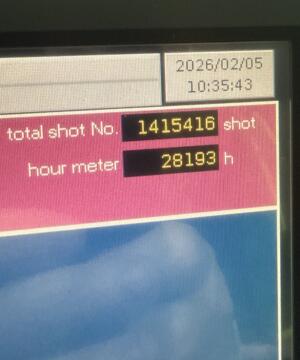

Only 28,193 hours

Tonnage  2200 Ton

Shot Size   427 oz.

Clamp 2-Platen Servo Hydraulic

Tie Bar Distance 72.83 inches  x  64.96 inches

Platen Size 98.42 inches x  88.58 inches

Daylight Min      29.53 inches 98,42" Clamp Stroke

Daylight Max      127.95 inches 59.05" Maximum Mold Height

Core Pull Sequences     Yes

Types of Controls Mac IX

Voltage     460

Servo-Hydraulic, Hydraulic cores 2 on stationary 2 on moving, Hydraulic core decompression circuit, Air ejector 1 on stationary 1 on moving, EU70 magnetic clamper interface, UB Ultra barrier screw chrome plated hard facing 22:1, 6 hydraulic valve gates, 6” locating ring, Longer ejector rods, ANSI 2017, In mold ejector confirmation circuit, Mold water piping, Hydraulic oil temp controller, Programmable output options (6), Hold pressure switch control includes external signal if needed, EU67 50 pin robot interface, In-mold ejector circuit.

Dimensions  46.8 ft x 13.2 ft x 11.1 ft

Overall Condition Excellent

Location: USA

Price ExWorks as is / where is
