(2016) 1450TON X 6" SMS HYBREX ALUMINUM EXTRUSION PRESS

Description

GMB#8705

(2016) 1450TON X 6" SMS HYBREX ALUMINUM EXTRUSION PRESS

Make: SMS

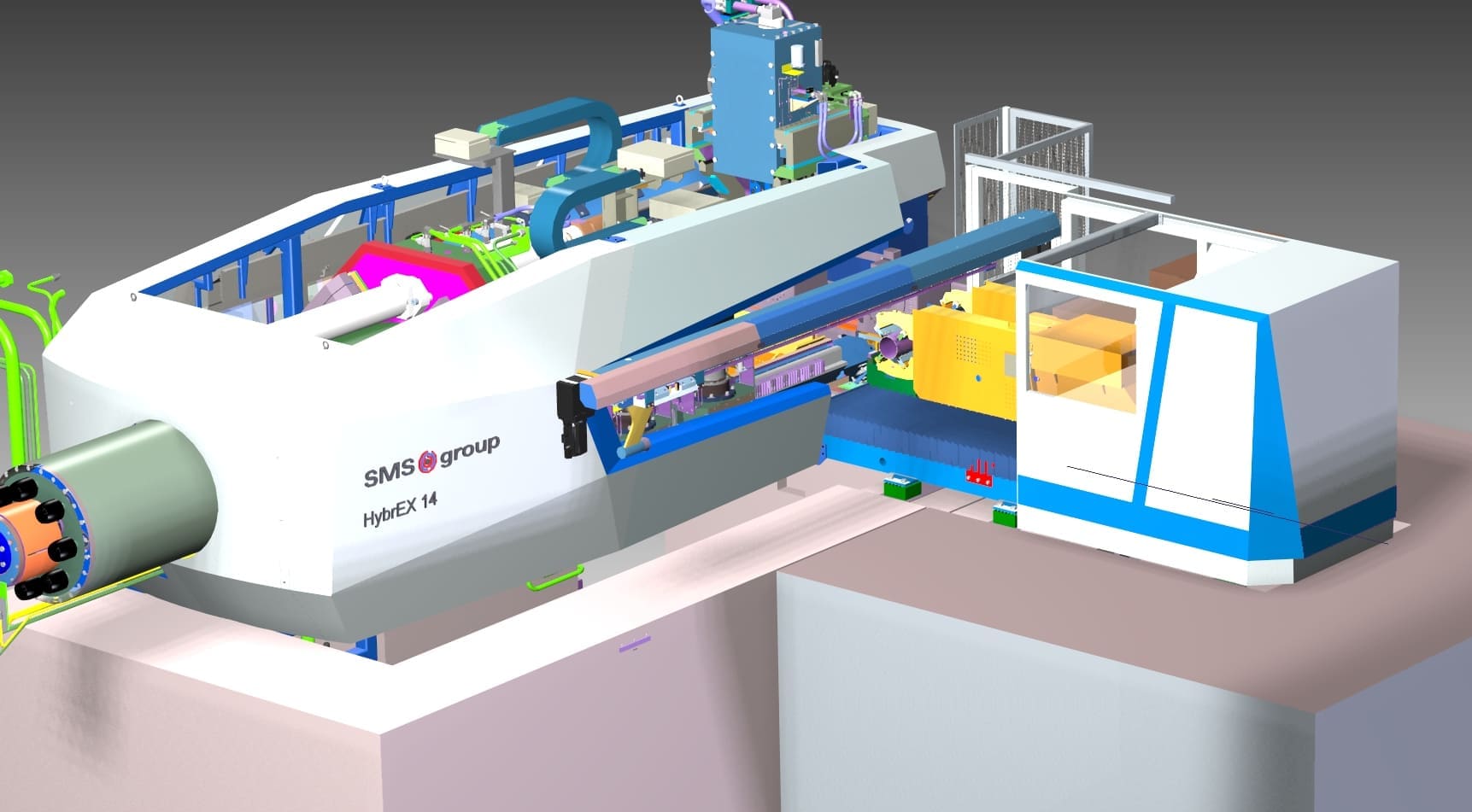

Model: HybrEX

Year: 2016

Tonnage:

- 1450 tons (14.5MN)

- 310 bar pressure

Billet Size:

- 160mm (6.3") x 800mm max (31.5")

Status:

- In operation

- Scheduled shutdown date = August 31, 2026

- Only the Press is for sale. The Handling Equipment is NOT included.

- Dismantling to begin September 3, 2026

Scope of Supply:

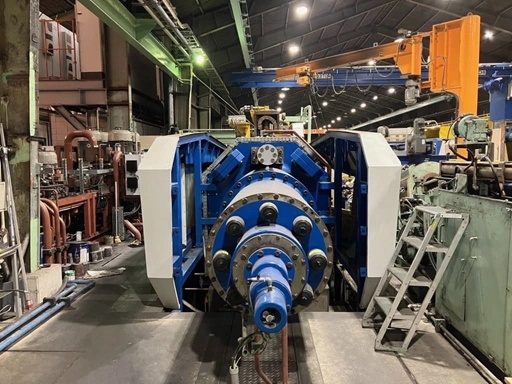

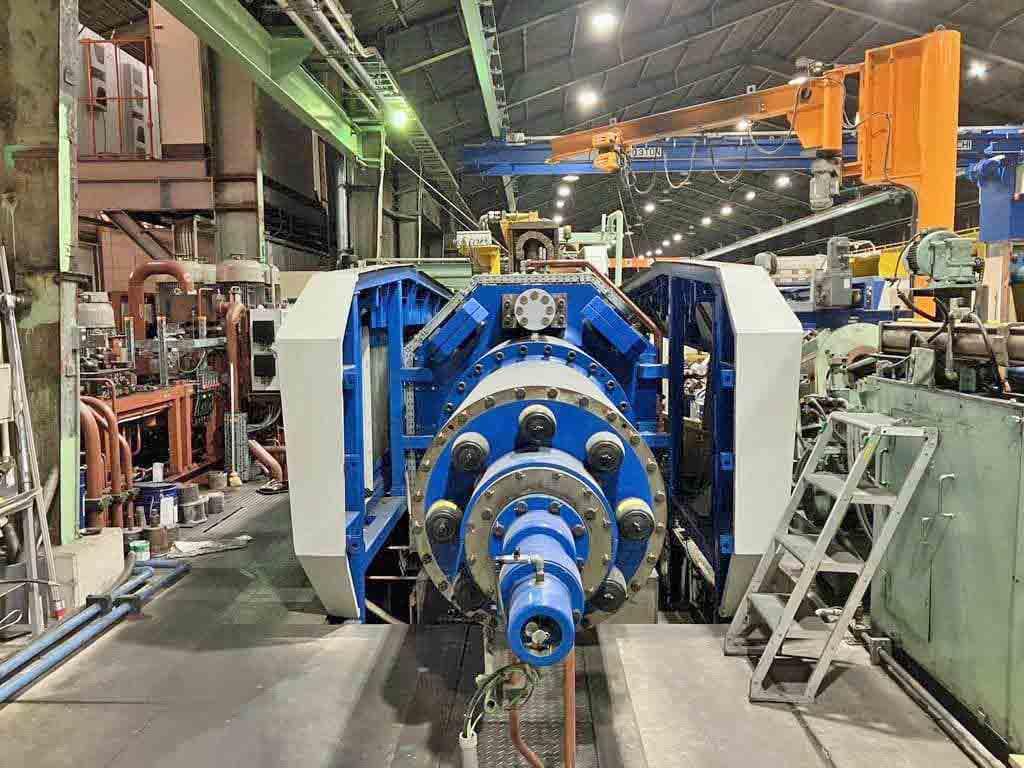

Press proper

Press motors and pumps

Billet Container Holder

Cassette Slider

Tool Cassette

Discard Shear

Intermediate Table

Billet Slide

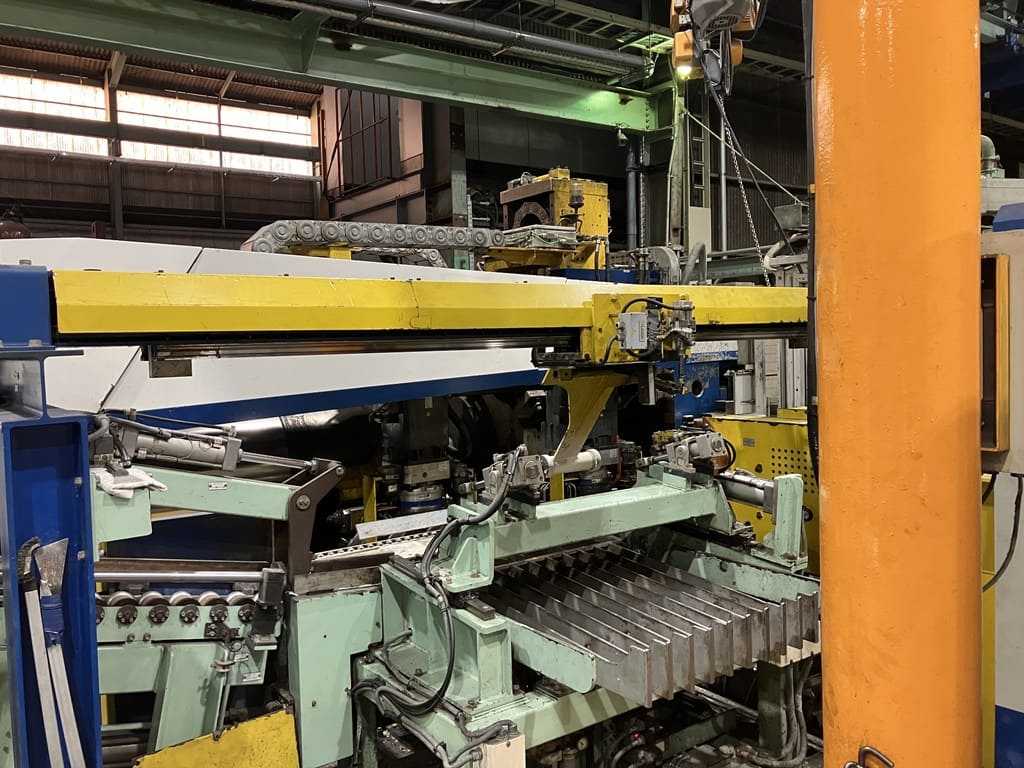

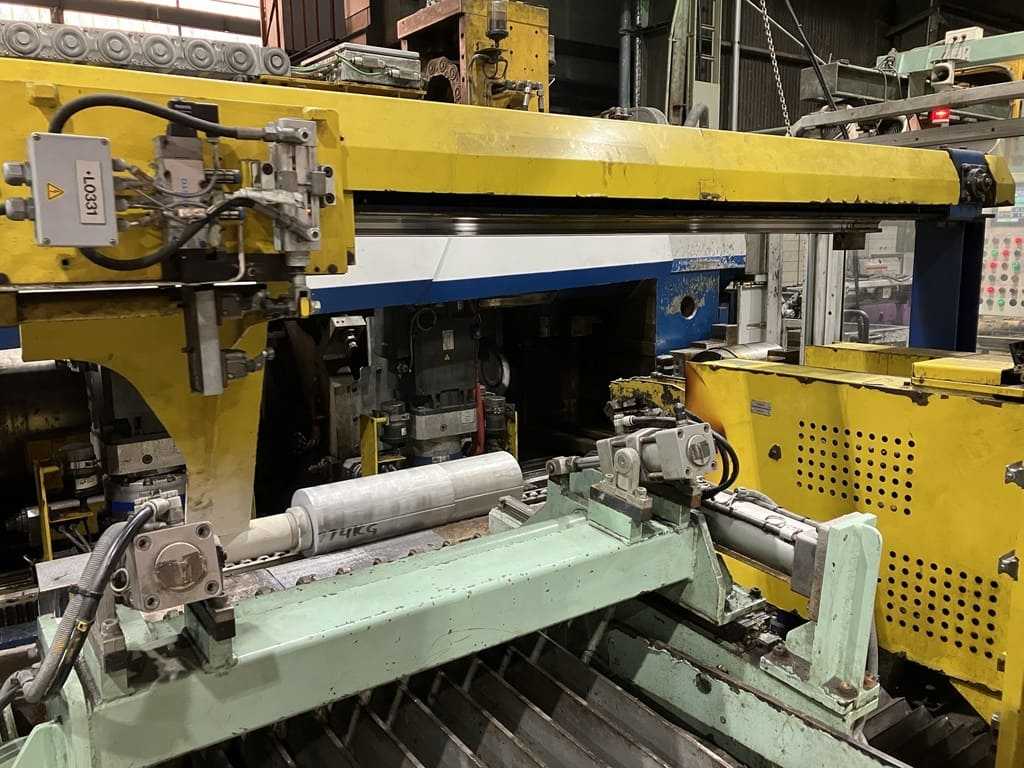

Billet Loader

Discard Conveyor

Hydraulic Equipment

Electrics

Specifications:

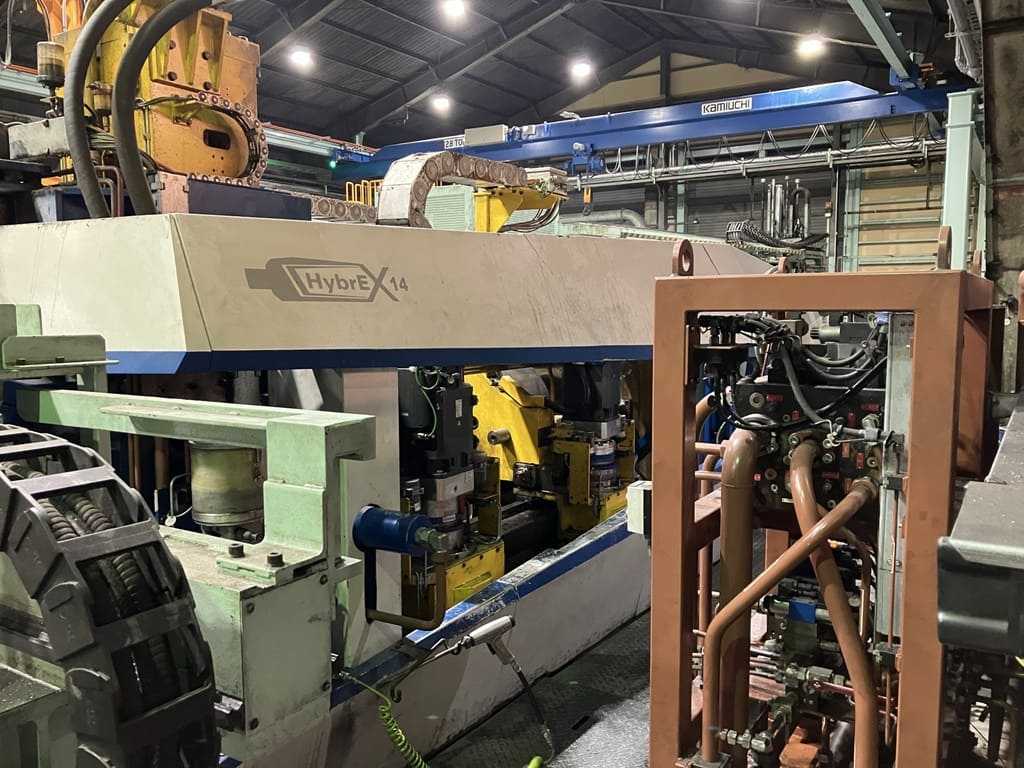

Press:

- Press Stroke: 960mm

- Press Speed: 17-23 mm/s (at 1450 tons = 17mm/s)

- Extruding center: 1000mm

- Extruding height: 3400mm

- Compressed Air: 6 bar

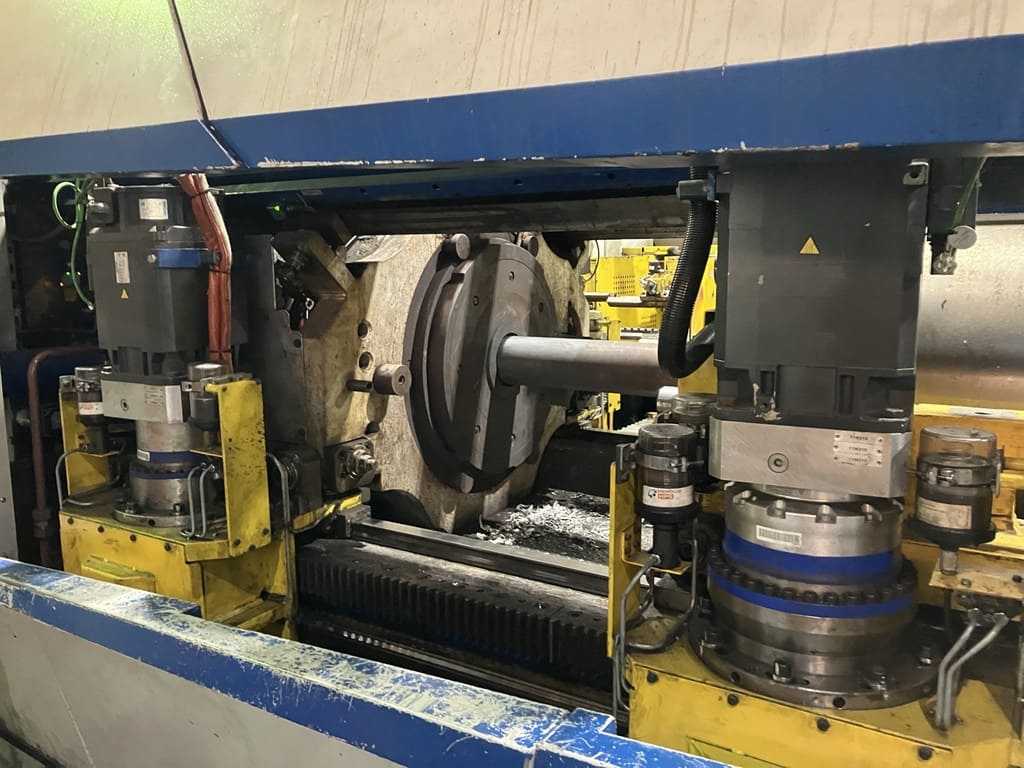

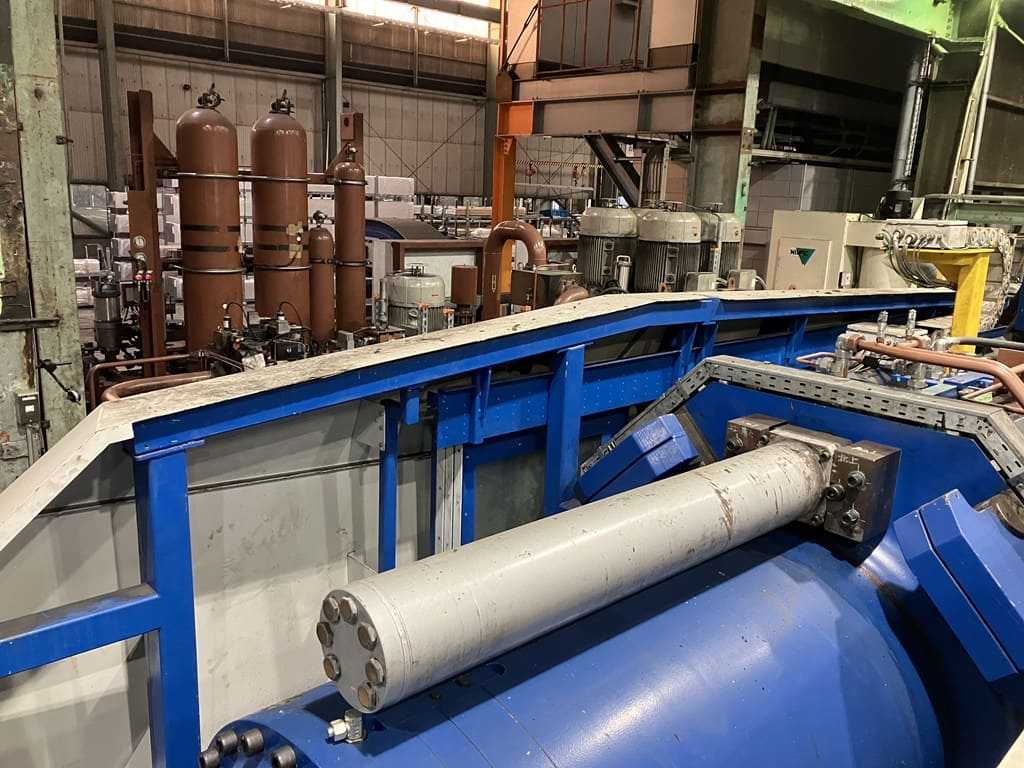

6" Billet Container:

- Pressing force: 140ton

- Pullback force:100ton

- Intake stroke: 1155mm

- Die Hole/Bore range:160mm

- Container length: 830mm

- Billet length range: 250-800mm

- Pressure plate opening: 190mm diameter x 230mm width

- Tool package: 330/ 277.5mm Diameter x 380mm Height

- Drive: 15kW x 2 units

- Weight: 2800kg (6,173 lbs)

Electric Servo Drive:

- Billet Container Drive Power: 2 x 15.7kw motors

- Moving Crosshead Drive Power: 2 x 31.7kw motors

- Billet Loader Drive Power: 14kw

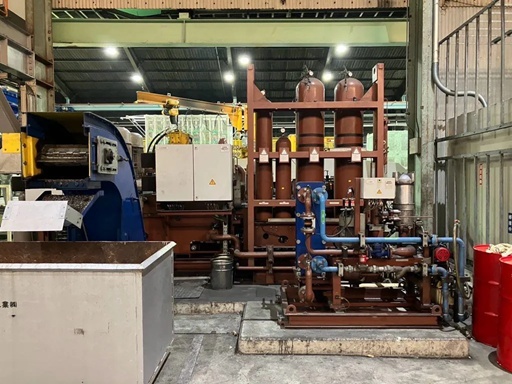

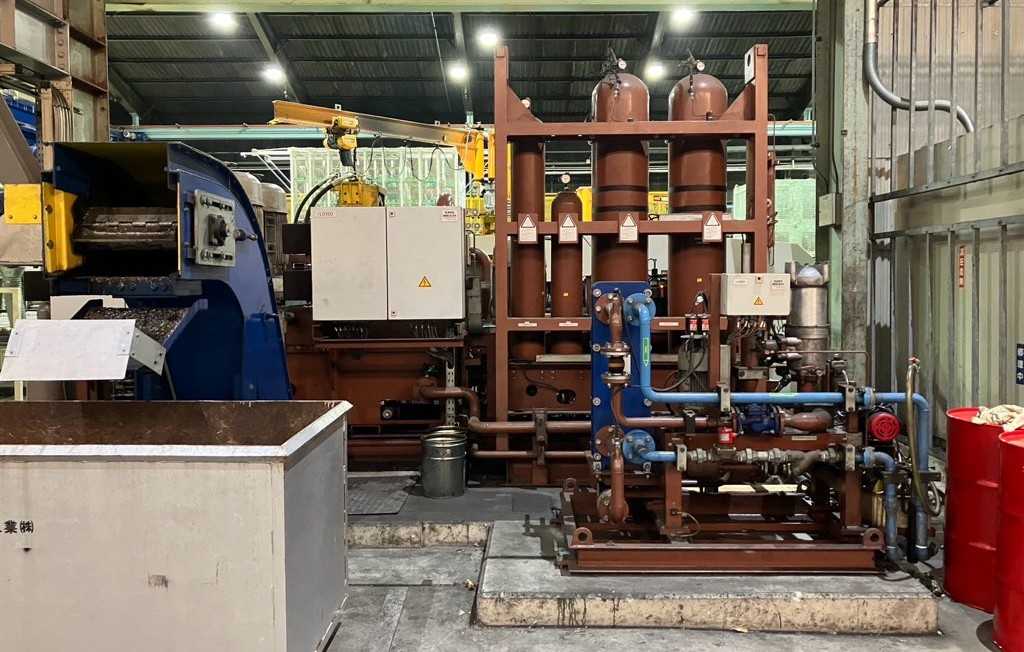

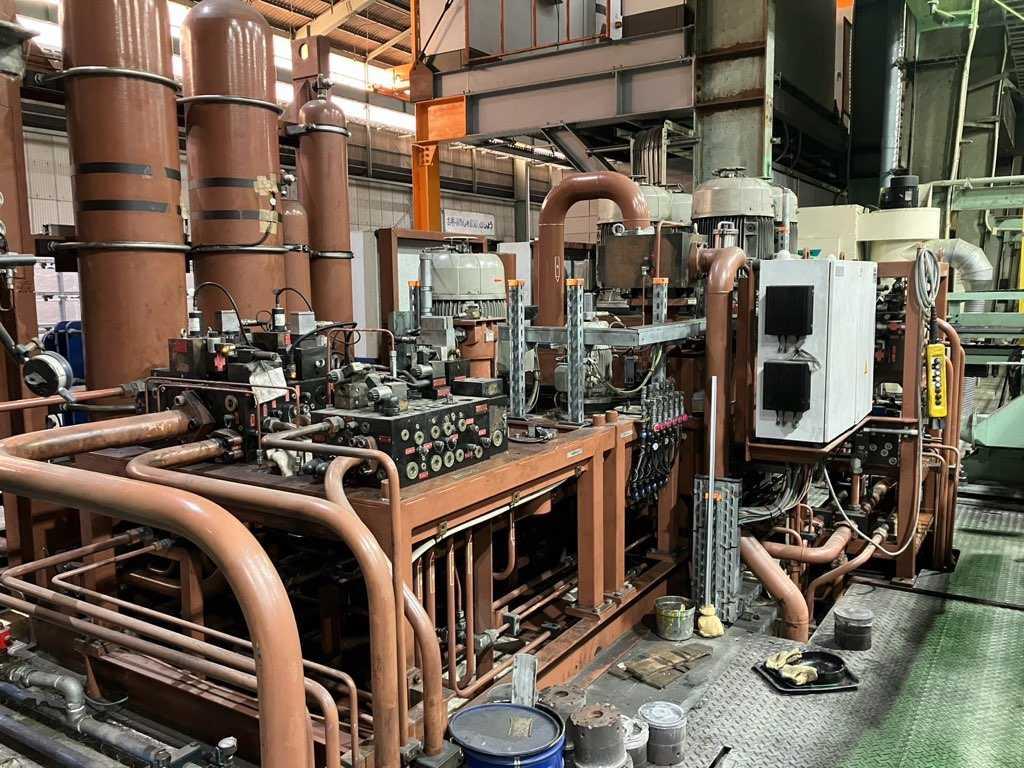

Hydraulic System:

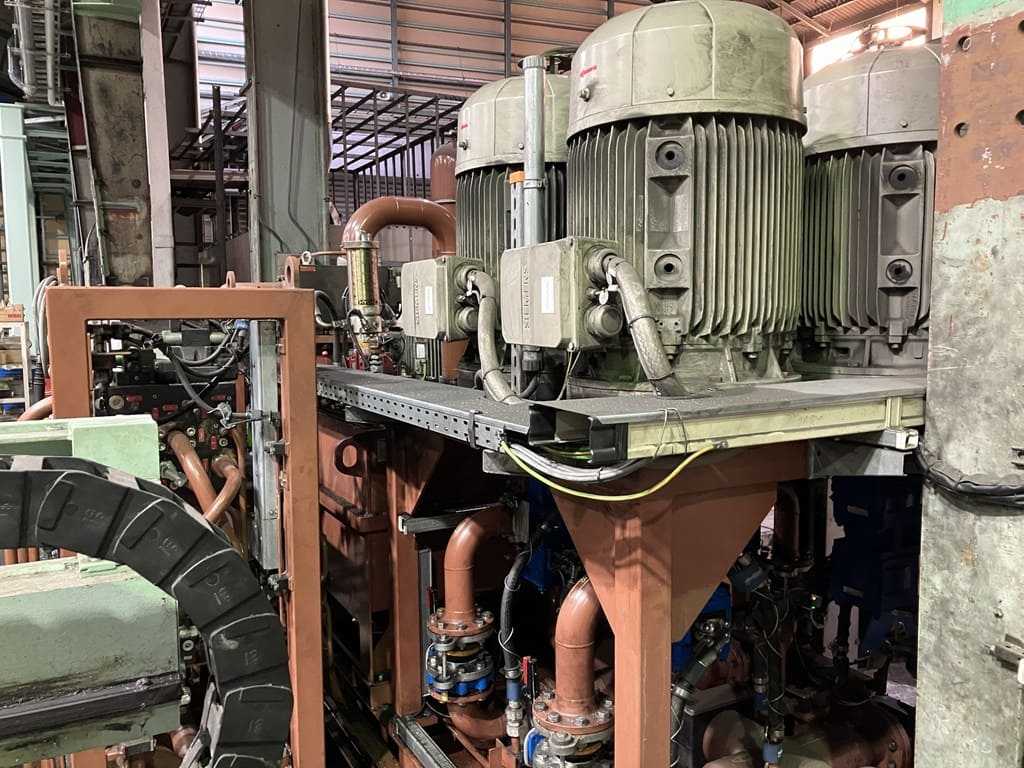

- 4 x High Pressure, Double Internal Gear Oil Pumps

- Operation pressure: 310bar, max.

- Transport amount, max.: 172L/min

- Drive force: 75KW

- Drive RPM: 400-2200 rpm

- Motor type: V1

- High pressure Control Pump:

Operation pressure: 320bar, max.

Transport amount, max.: 9.2L/min

Drive force: 5.5KW

Drive RPM: 400-1500 rpm

- Low Double Pressure Pump:

Operation pressure: 200bar, max.

Transport amount, max.: 90L/min

Drive force: 37KW

Drive RPM: 400-1500 rpm

Electrics:

- 220/440 Operating voltage (+/- 5%)

- 3 phase / 60Hz

- The connected load of the motor switching device:600kVA

- The connected load of container heater switching device: 35kVA

Controls:

- Control System: Siemens S7

- Program Language: English

Location: ASIA

Price On Request
