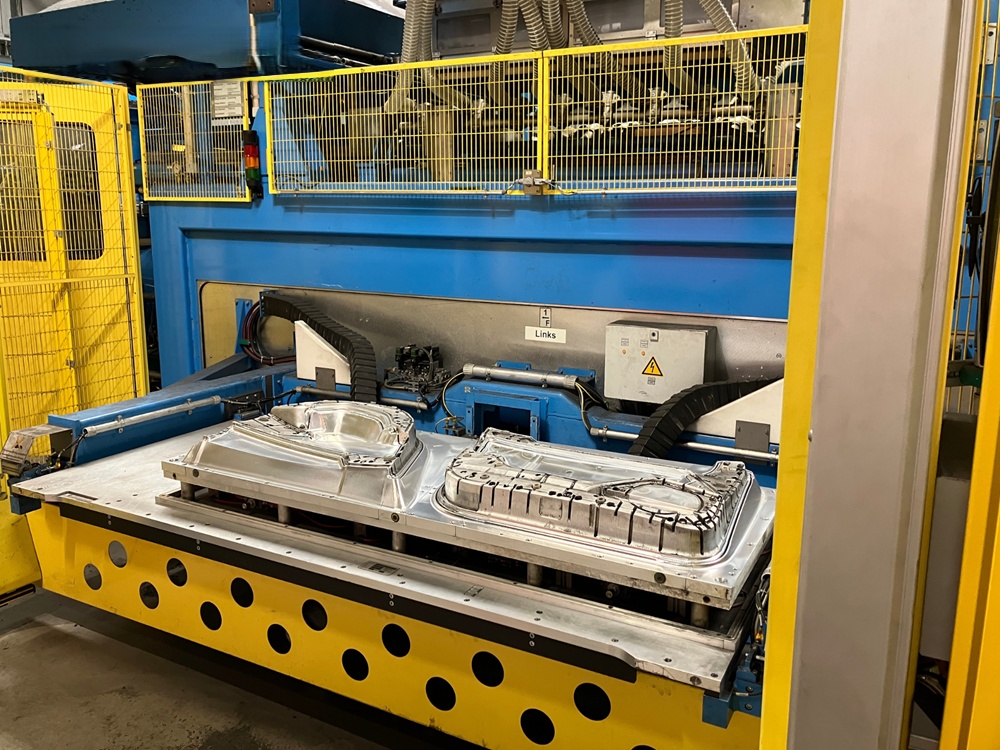

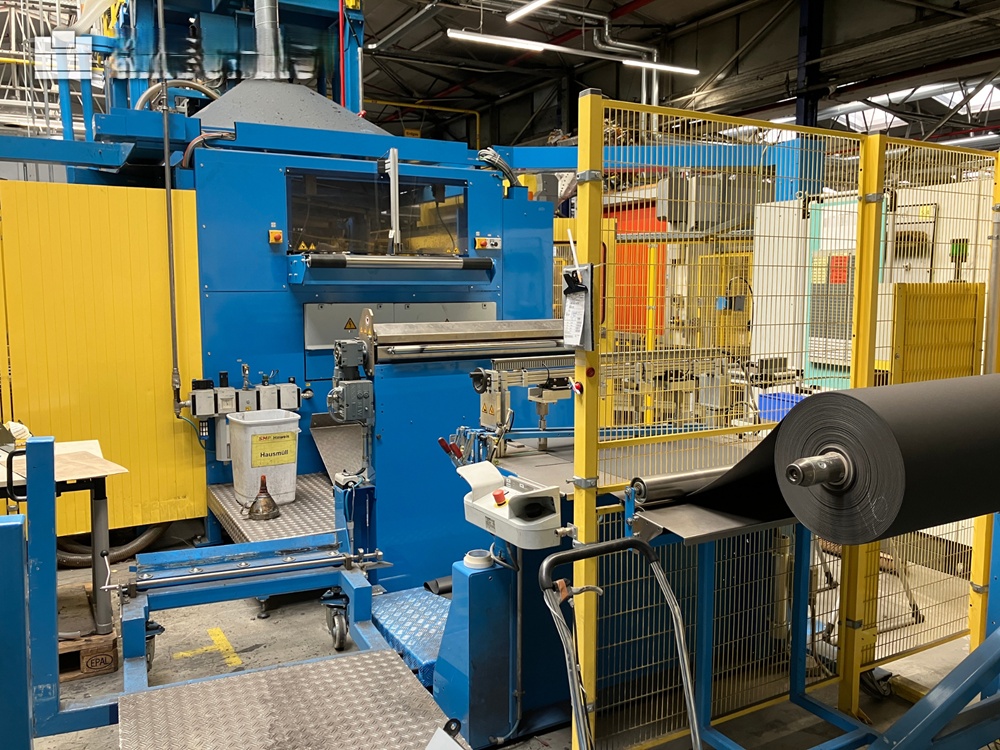

(2011) KIEFEL KLS 86/235 AUTOMATIC ROLL-FED THERMOFORMING MACHINE

Description

GMB#1484

(2011) KIEFEL KLS 86/235 AUTOMATIC ROLL-FED THERMOFORMING MACHINE

Make: KIEFEL

Model: KLS 86/235

Year: 2011

Production hours: 35000

Max. forming area: 860 x 2350 mm

Min. forming area: 340 x 1200 mm

Max. forming part height: 350 mm

Film level: 1805 mm

Max. lower table stroke: 1330 mm

Max. upper table stroke: 585 mm

Rotary upper table: 4-part (Forming / Punching)

Punching force upper table: 30 kN

Punching counterforce lower table: 30 kN

Operating pressure: 6 bar

Compressed air requirement: approx. 300 Nl/cycle

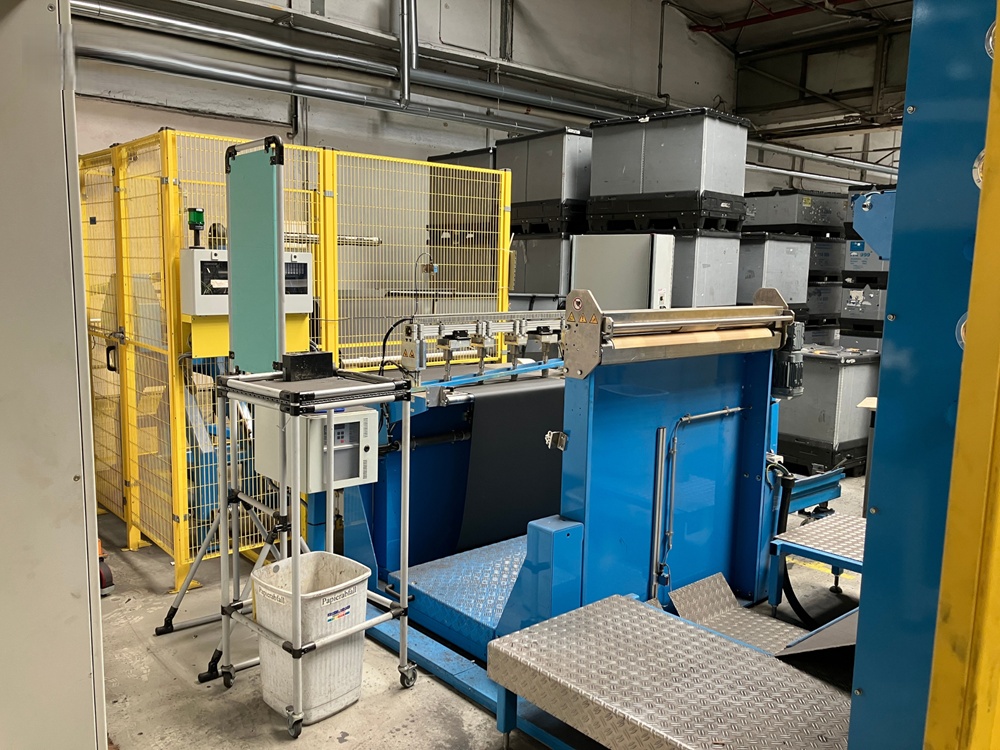

Max. roll diameter: 600 mm

Max. film width: 1100 mm

Max. film roll weight: 400 kg

Coil diameter max: 76 mm

Vacuum system suction power: 2 x 300 m³/h

Vacuum system power: 7.6 kW

Tank volume: approx. 1000 L

Side channel blower suction: 14 m³/min

Side channel blower power: 8.5 kW

Feed width chain rails: max. 940 mm

Operating voltage: 3 x 400V + N + PE / 50 Hz

Connected load: 225 kVA

Nominal current: 264 A

Preliminary fuse: 315 A

Short-circuit strength: 50 kA

Control voltage: 24 VDC

Country: Germany

Price ExWorks as is / where is
