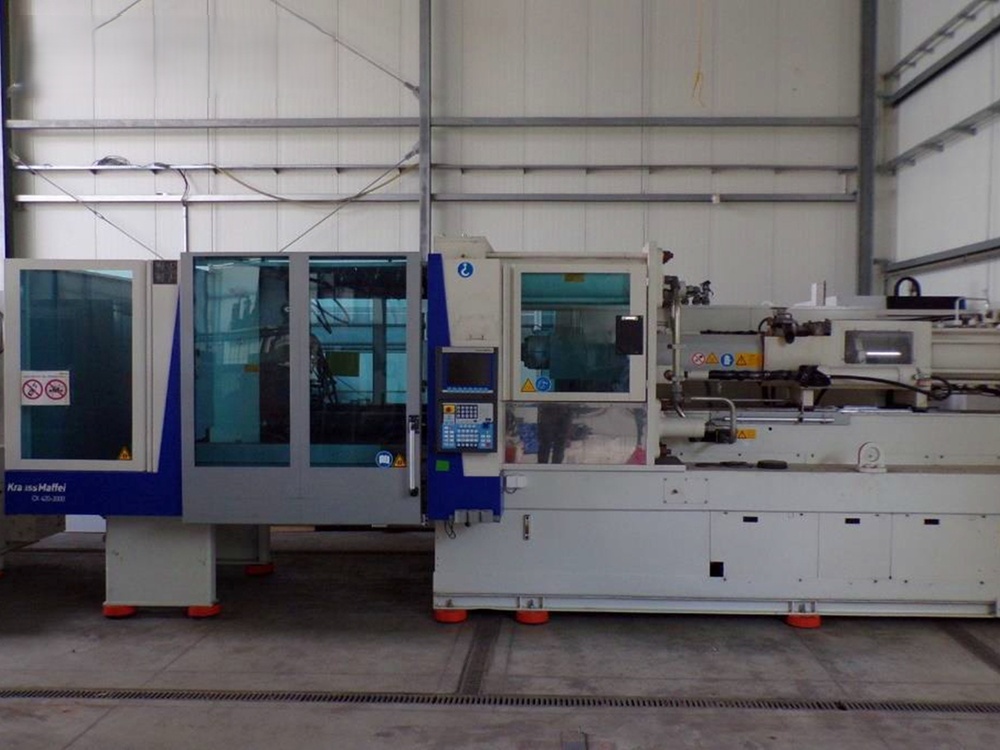

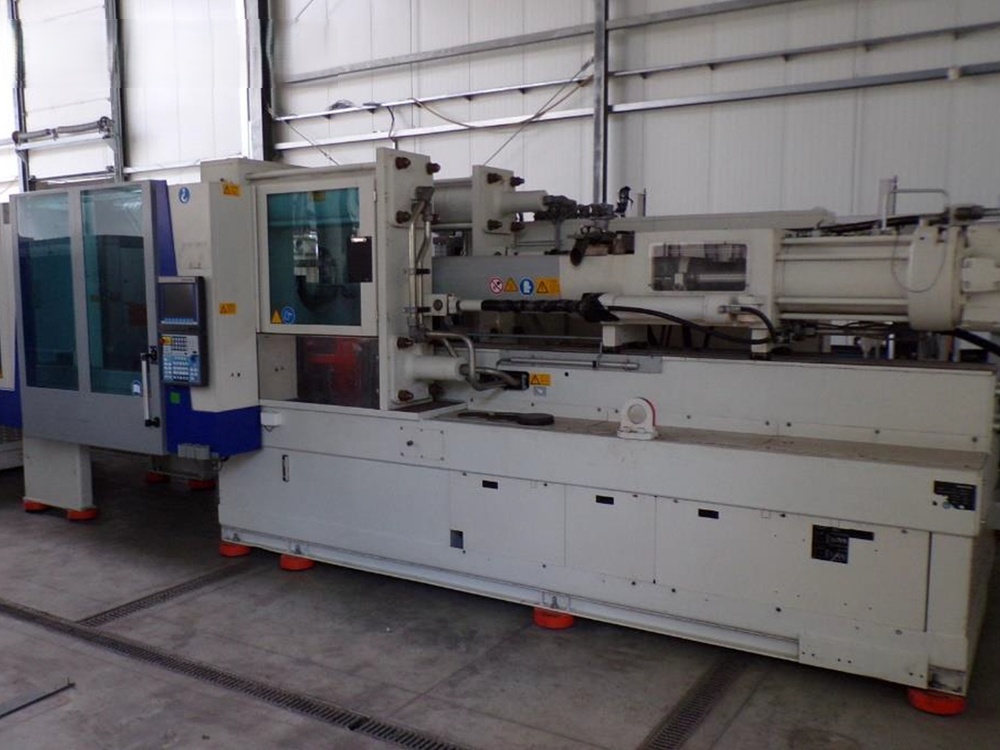

(2011) 420 Ton Krauss Maffei 420-3000 CX hydraulic injection molding machine

Description

GMB#50189

(2011) 420 Ton Krauss Maffei 420-3000 CX hydraulic injection molding machine

Make: Krauss Maffei

MODEL: 420-3000 CX

Year: 2011

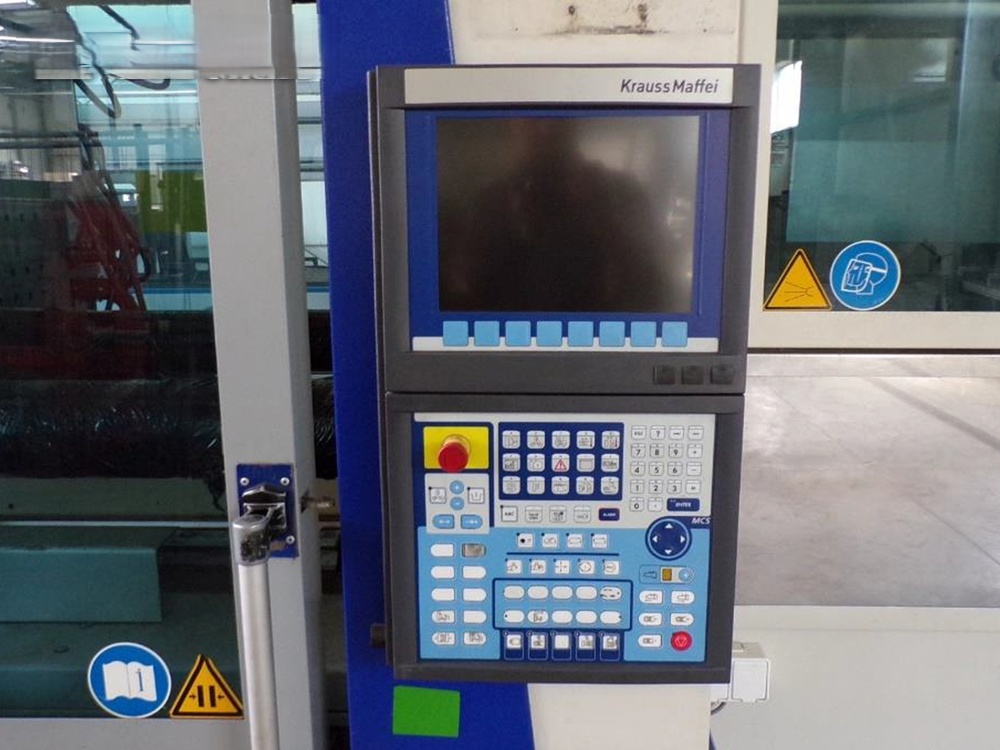

Control Brand: KRAUSS MAFFEI

Control Model: MC5

Clamping Force: 4200 kN (420 Ton)

Max. Shot Weight: 1464 g

Screw Diameter: 80 mm

Additional Information

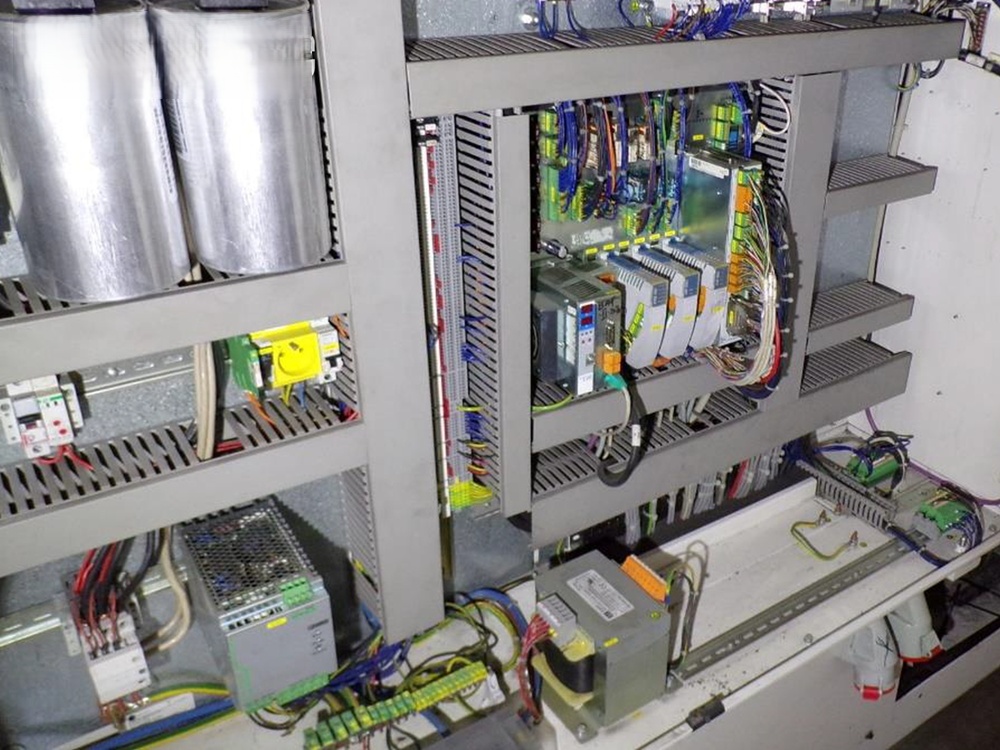

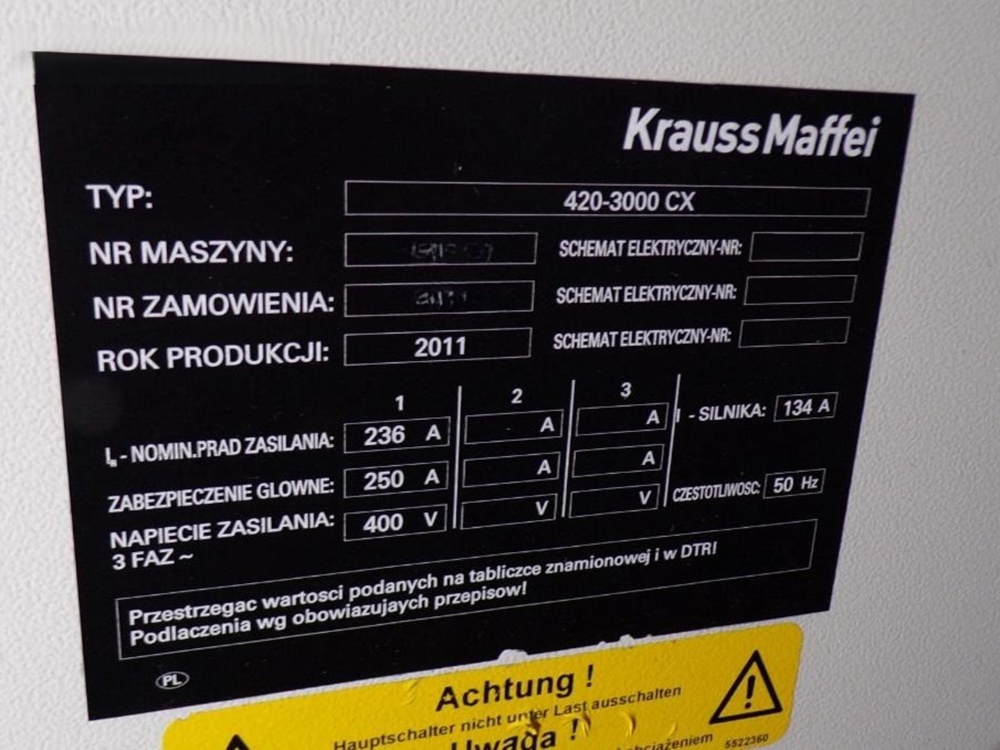

Electrical data:

Power supply: 400 V / 3N~ / 50 Hz

Installed heating power: 36 kW

Rated pump motor power: 75 kW

Number of barrel heating zones: 7

Performance and control:

Dry cycles (Euromap 6): 1,200 cycles/h

Control system/version: MC5 3.3

Machine color: grey / white / blue

Clamping unit:

Mold opening force: 249.6 kN

Distance between tie bars: 800 × 800 mm

Moving platen force (open/close): 124.7 / 102.4 kN

Platen dimensions: 1270 × 1200 mm

Mold opening stroke: 1020 mm

Minimum mold height: 380 mm

Ejector stroke: 250 mm

Platen opening stroke: 1400 mm

Injection unit:

Nozzle tip radius: 15 mm

Nozzle orifice diameter: 6 mm

Injection pressure: 1856 bar

Injection volume: 1608 cm³

Injection rate: 478 cm³/s

Machine Height: 2500 mm

Machine Length: 7300 mm

Machine Weight: 25500 kg

Location: Poland

Price ExWorks as is / where is
