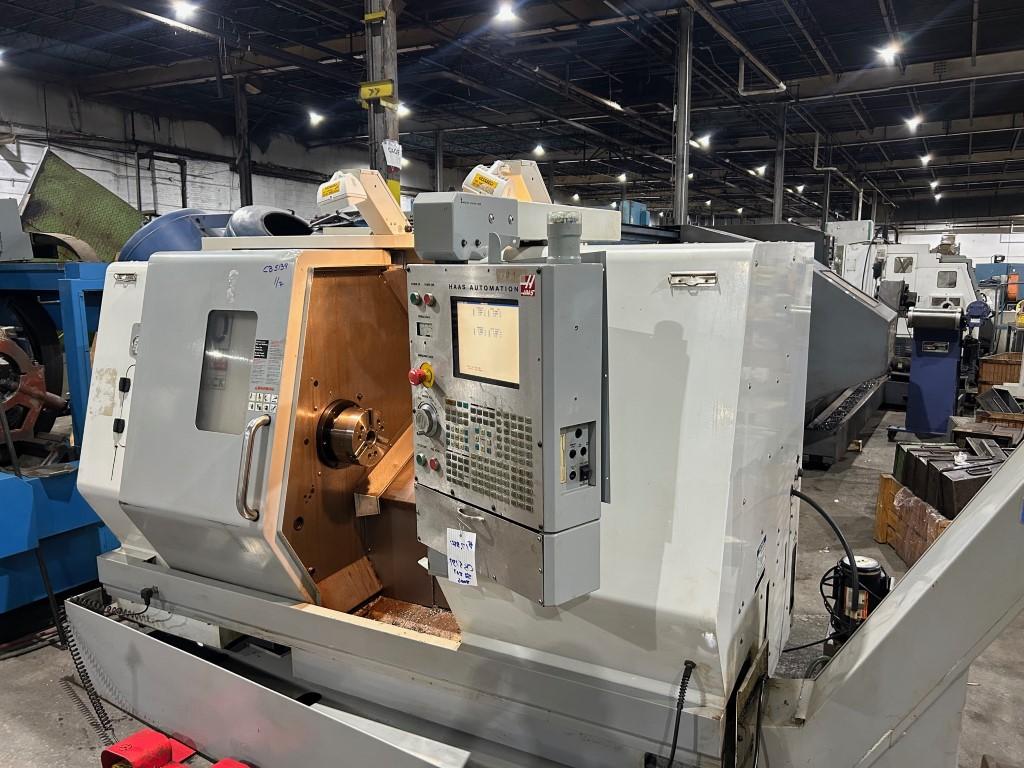

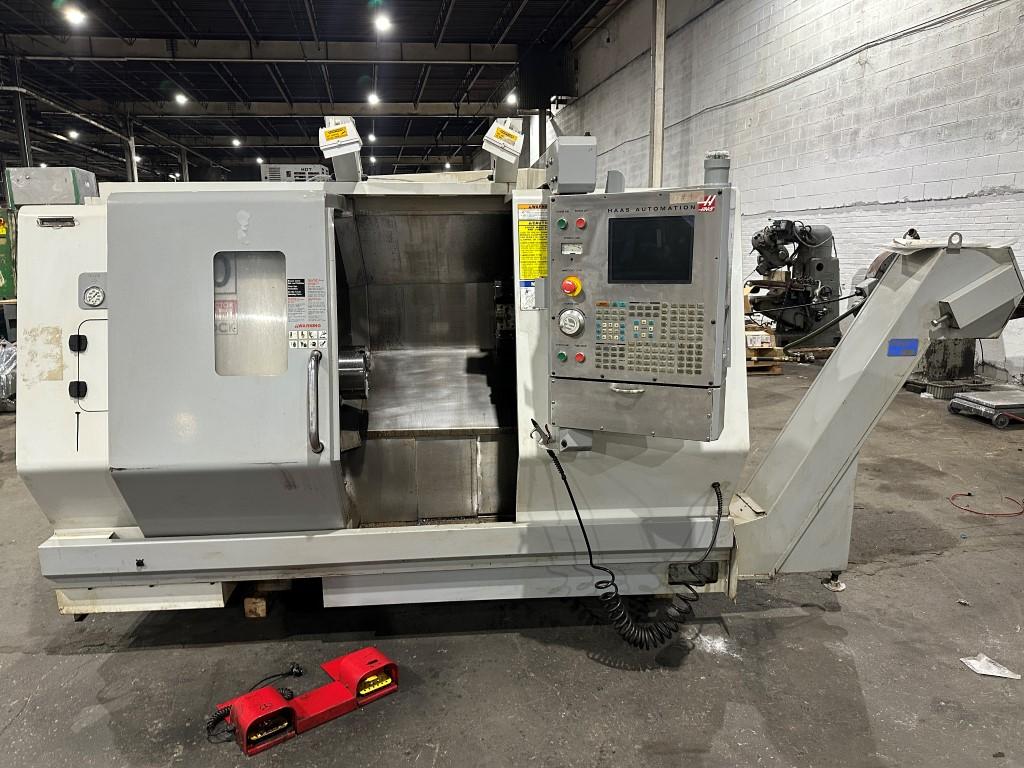

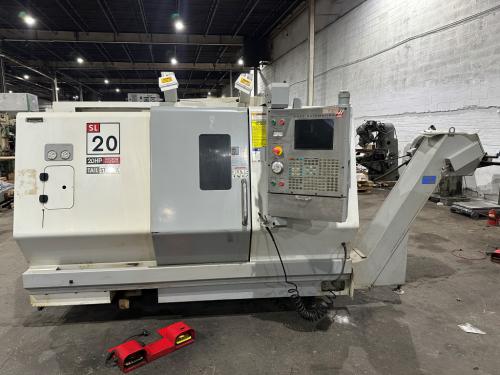

(2006) HAAS SL20T TAILSTOCK CNC TURNING CENTER

Description

GMB#8505

(2006) HAAS SL20T CNC TURNING CENTER

Make: HAAS

Model: SL20T

Year: 2020

Comes equipped with a tailstock

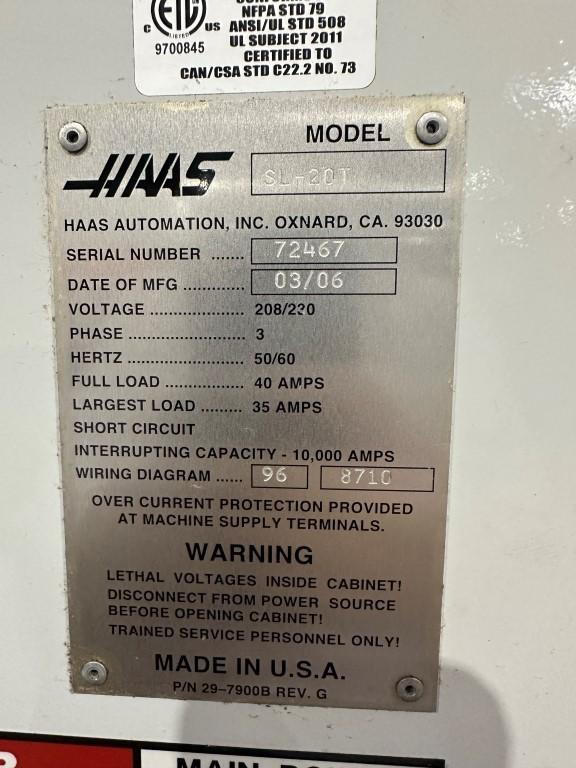

SERIAL: 72467

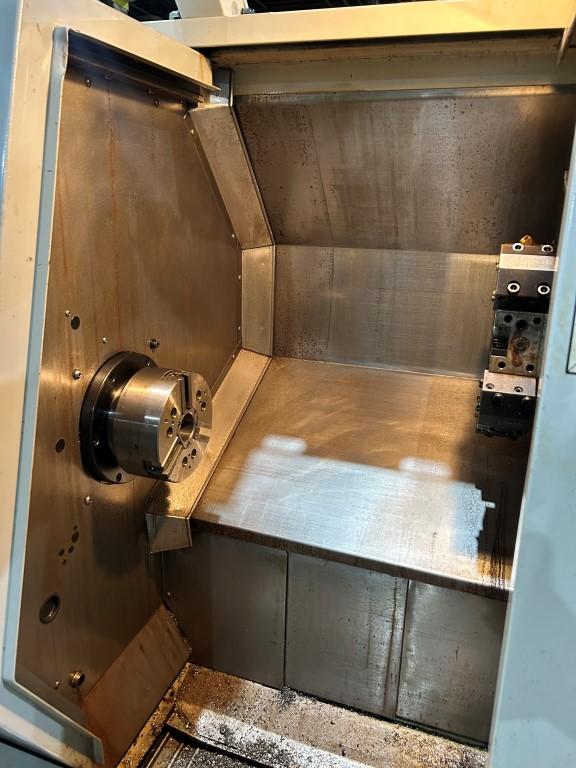

• Chuck Size: 8" Hydraulic Chuck

• Bar Capacity: 2.0" (51 mm)

• Max Swing: 23.0" over the front apron

• Max Turning Diameter: 10.3"

• Max Turning Length: 20" to 24" (varies slightly by workholding configuration)

• Spindle Speed: 4,000 RPM

• Spindle Motor: 20 HP

• Turret Capacity: 10-Station or 12-Station Bolt-On Tool (BOT) Turret

• Axis Travel: X-Axis: 8.45" | Z-Axis: 20"

• Rapid Traverse Rates: Up to 1,200 IPM

• Approximate Machine Weight: 9,000 lbs (4,082 kg)

COOLANT PAN

CHIP CONVEYOR

CURRENTLY WIRED 230V

Location: USA

Price ExWorks as is / where is
