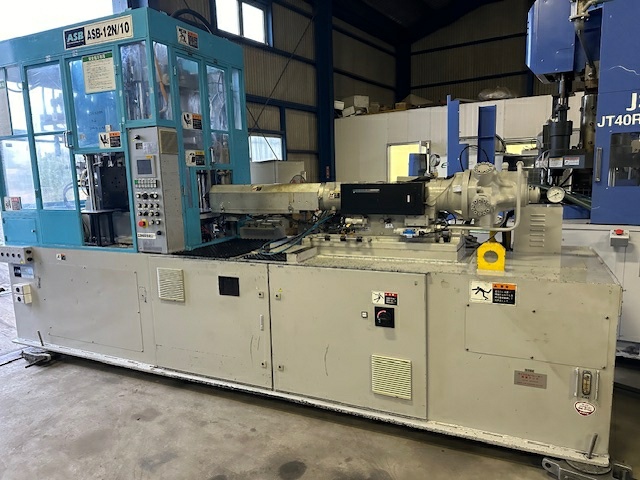

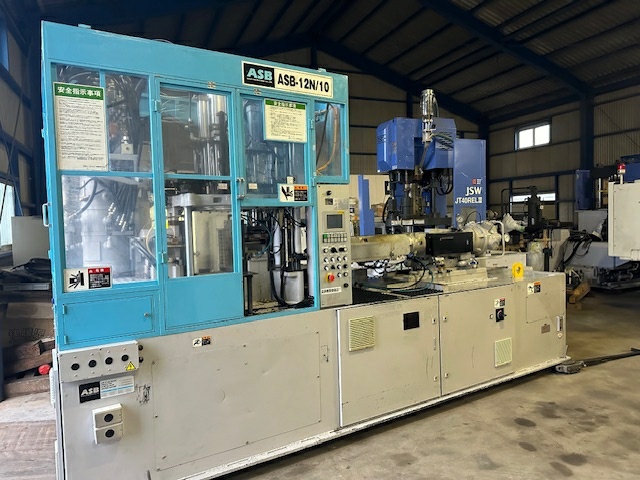

(2006) Nissei ASB-12N/10 one-step injection stretch blow molding machine (ISBM)

Description

GMB#7534

(2006) Nissei ASB-12N/10 one-step injection stretch blow molding machine (ISBM)

Make: Nissei

Model: ASB-12N/10

Year: 2006

Machine Specifications:

• Machine Dimensions:  (L x W x H): 4,083 x 1,110 x 2,957 mm

• Machine Weight: 3,628.74 kg

• Standard Screw Diameter: 44 mm

• Injection Clamping Force: 137 kN

• Blow Clamping Force: 116 kN

• Driving Power: 19.3 kW

• Oil Reservoir Capacity: 220 L

Product Specifications (Injection Blow):

• Cavity Number: 6 to 1

• Max. Capacity: 0.07 L to 0.80 L (varies with cavity number)

• Max. Thread Diameter: 21 mm to 72 mm (varies with cavity number)

• Max. Body Diameter: 35 mm to 118 mm (varies with cavity number)

• Max. Height: 100 mm to 140 mm (varies with cavity number)

• Max. Weight: 12 g to 77 g (varies with cavity number)

The machine can mold wide range of materials including PP, PC, PE, PET.

The machine is designed to be compact and versatile in producing a wide range of container sizes and shapes.

It is suitable for low-volume, high-mix production.

Enough Clamping Force for Wide Mouth Jars

Location: Japan

Price exworks as is / where is
