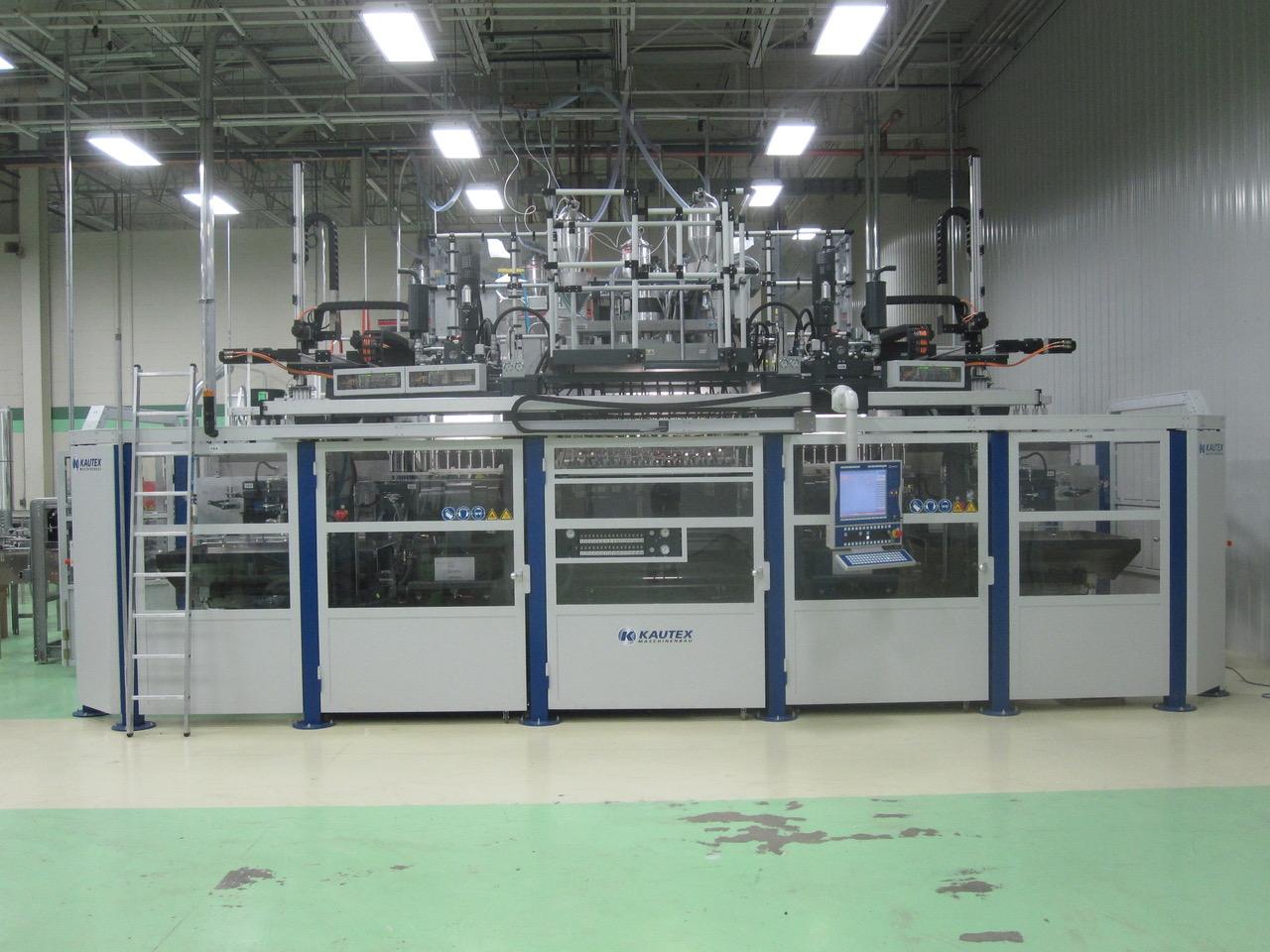

(2010) Kautex KLS 14-100D Co-Ex Continuous Extrusion Blow Molding Machine

Description

GMB#7565

(2010) Kautex KLS 14-100D Co-Ex Continuous Extrusion Blow Molding Machine

Make: Kautex (Germany)

Model KLS 14-100D

Year: 2010

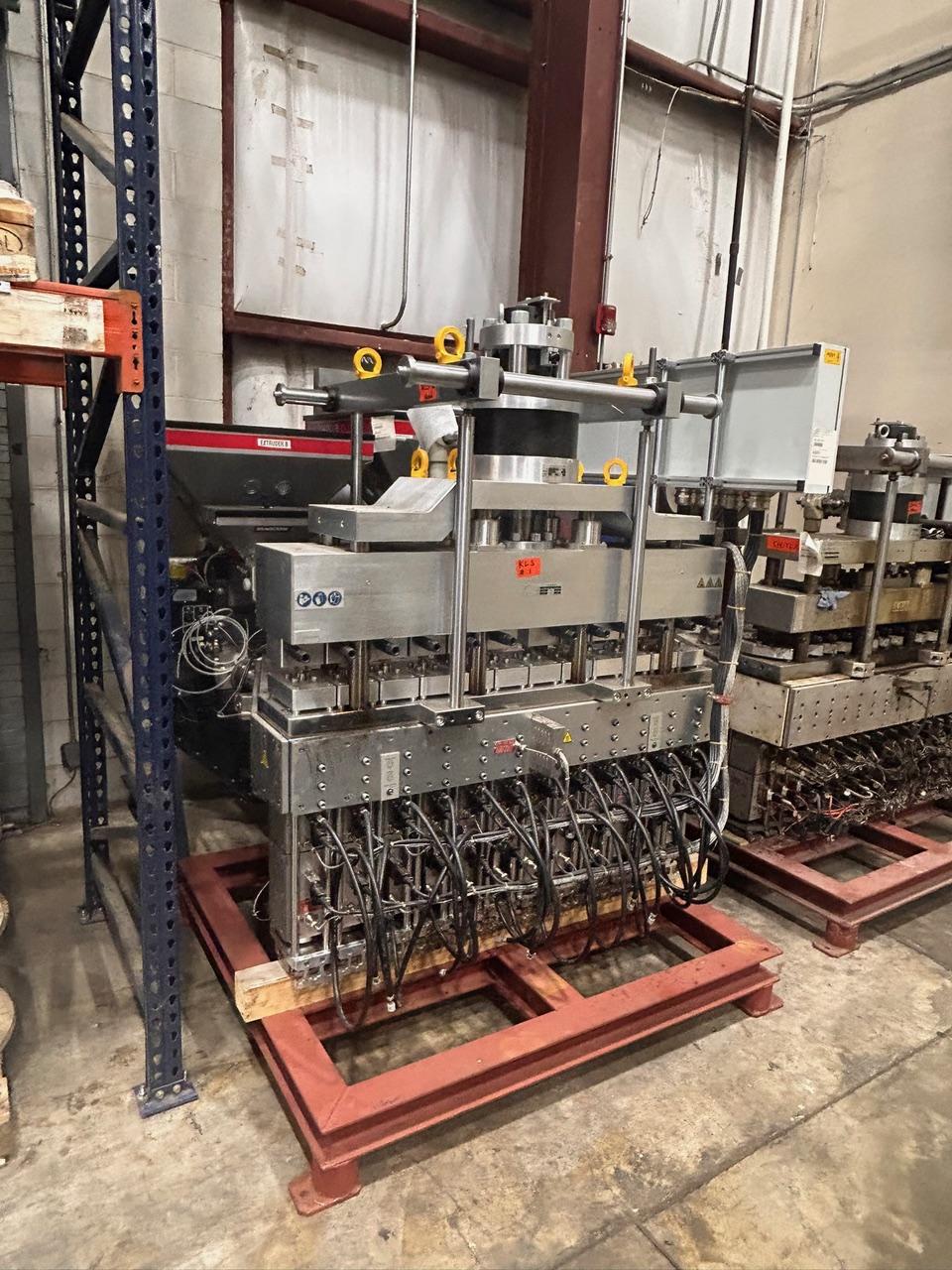

– Head configurations- (2) Willie Mueller heads included in offer: Head #1 – 12 parison head with 115 mm distance between die centers-  Head #2 – 15 parison head with 95 mm distance between die centers (both can make a 3 layer bottle)

– Press arrangement- dual sided

– In machine trimming capability

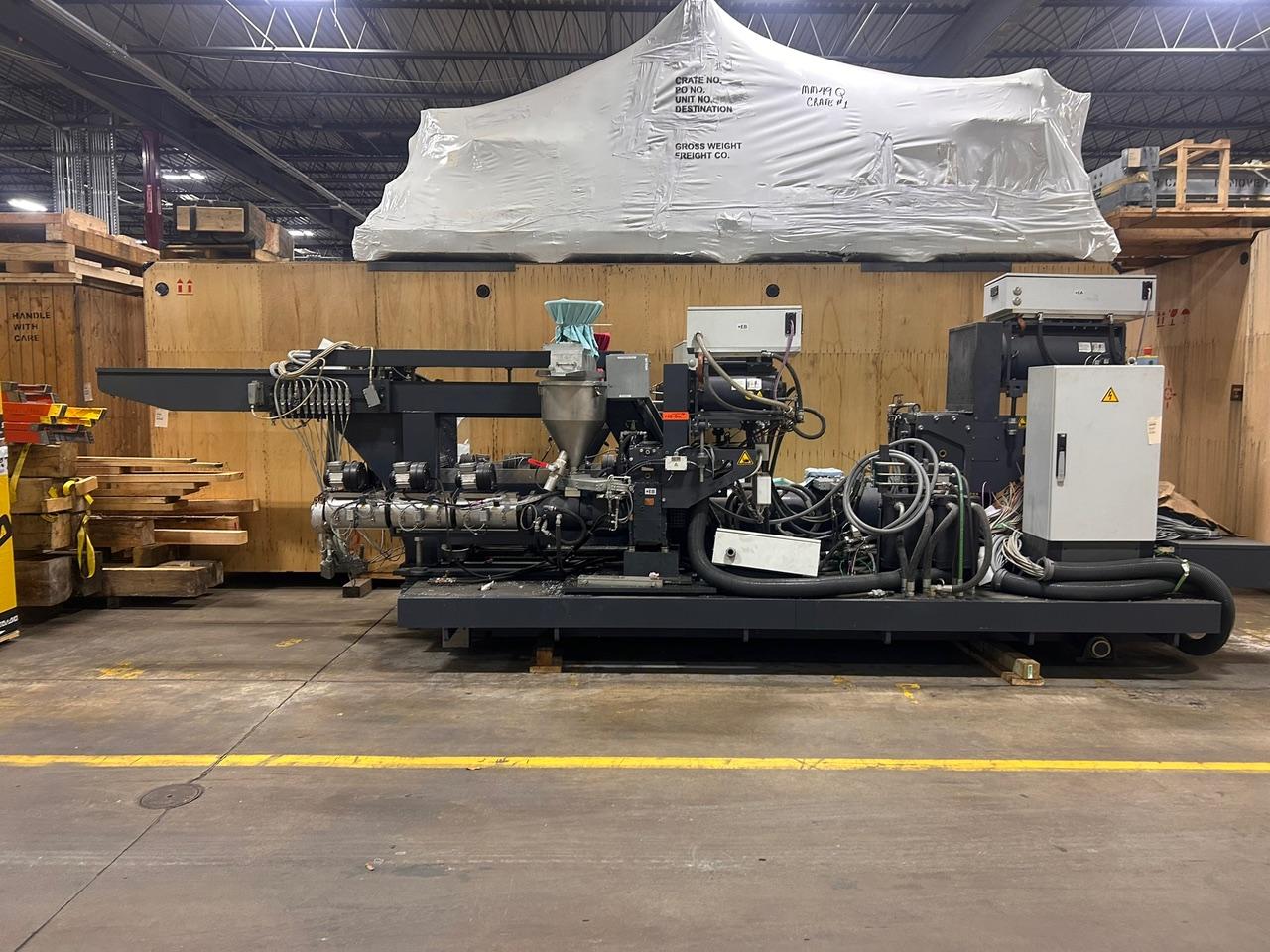

– Machine is equipped with 3 extruders and (2) heads that can produce a 3 layer bottle

– Clamp width- 1470 mm

– Clamp height- 375 mm

– Closing stroke- 2 x 180 mm

– Opening gap- maximum- 2 x 360 mm

– Closing force 40.8 metric tons

– Mold width maximum- 1470 mm

– Mold height maximum- 425 mm

– Mold thickness minimum- 2 x 180 mm

– Machine dimensions- 9600 mm length x 8800 mm width (without cabinet) x 4400 mm height

– Cabinet width- 3600 mm

– Power specifications- 460 volts- 3 phase- 60 cycles

– Condition- can be inspected in storage

Location: USA

Price On Request'
