Refurbished 110 Kw Herbold Plastcompactor HV-50/110 Agglomerator Plant

Description

GMB#67095

Refurbished 110 Kw Herbold Plastcompactor HV-50/110 Agglomerator Plant

Make: Herbold

Model: Plastcompactor HV-50/110

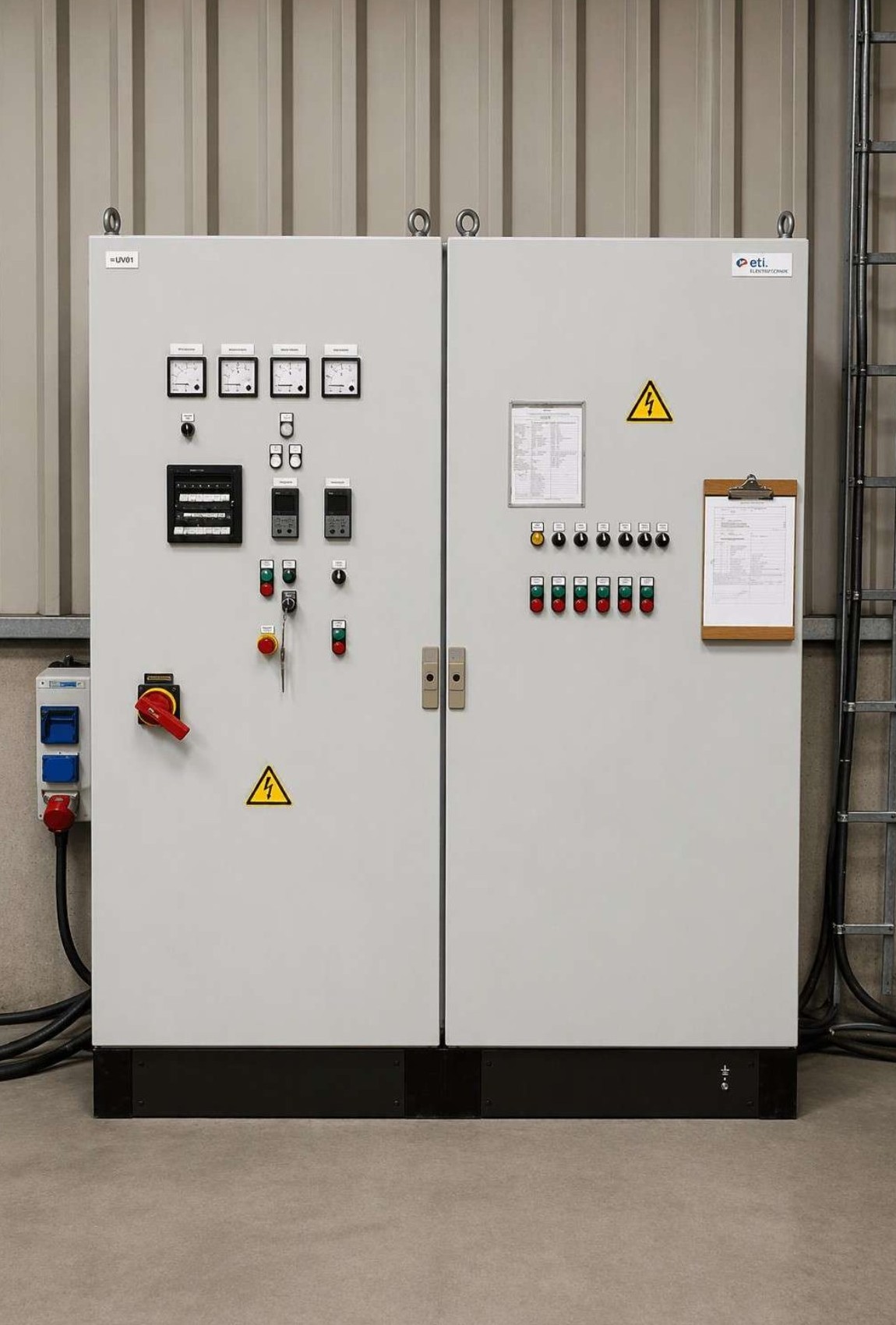

Immediately available system with a used control cabinet, version with a square feeding device.

Consisting of:

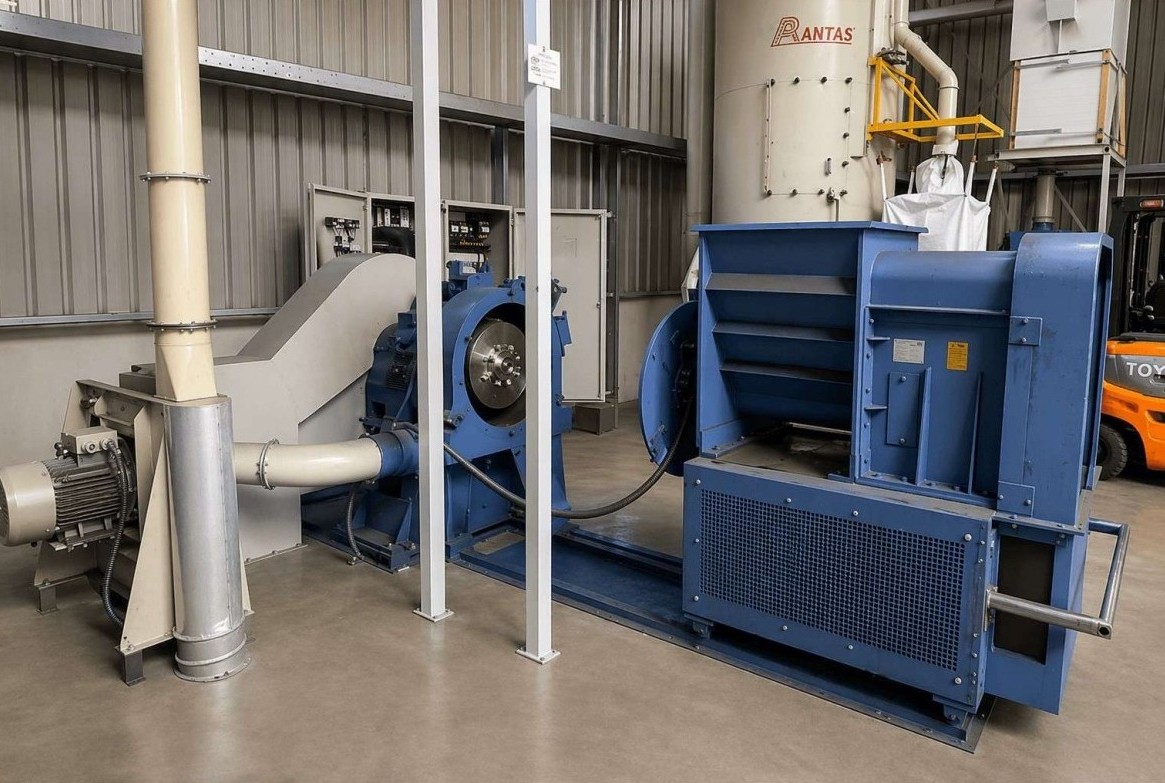

Plastcompactor HV 50/110, square feeding device, regranulator / secondary granulator, air classifier / sifter, and bagging station.

Technical Specifications:

•   Suction line: Self-priming conveying to the feeding hopper.

•   Feeding device: Buffer hopper with approx. 1?" m" ?^3 capacity, equipped with high-level sensor.

•   Integrated feeding screw: Drive power approx. 11 kW.

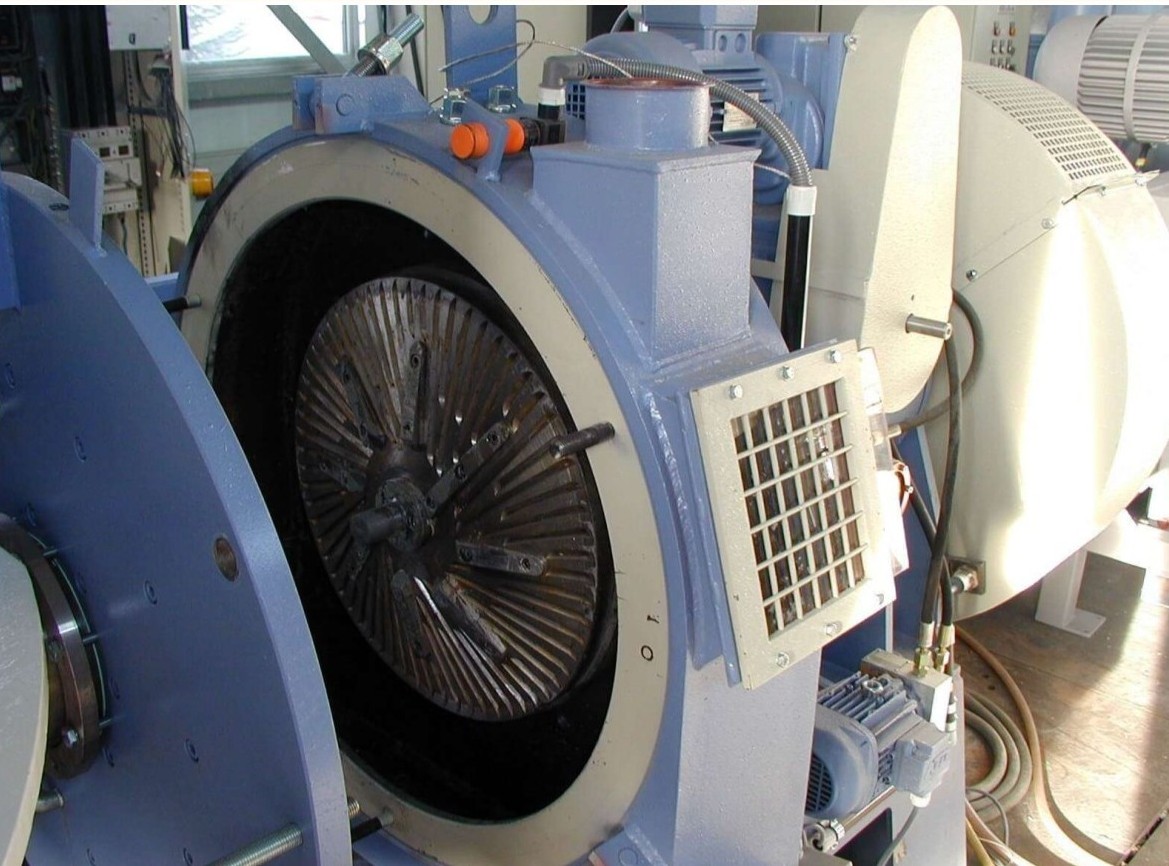

•   Compactor disc diameter: 500 mm; rotating and stationary discs are water-cooled (chiller system provided by customer).

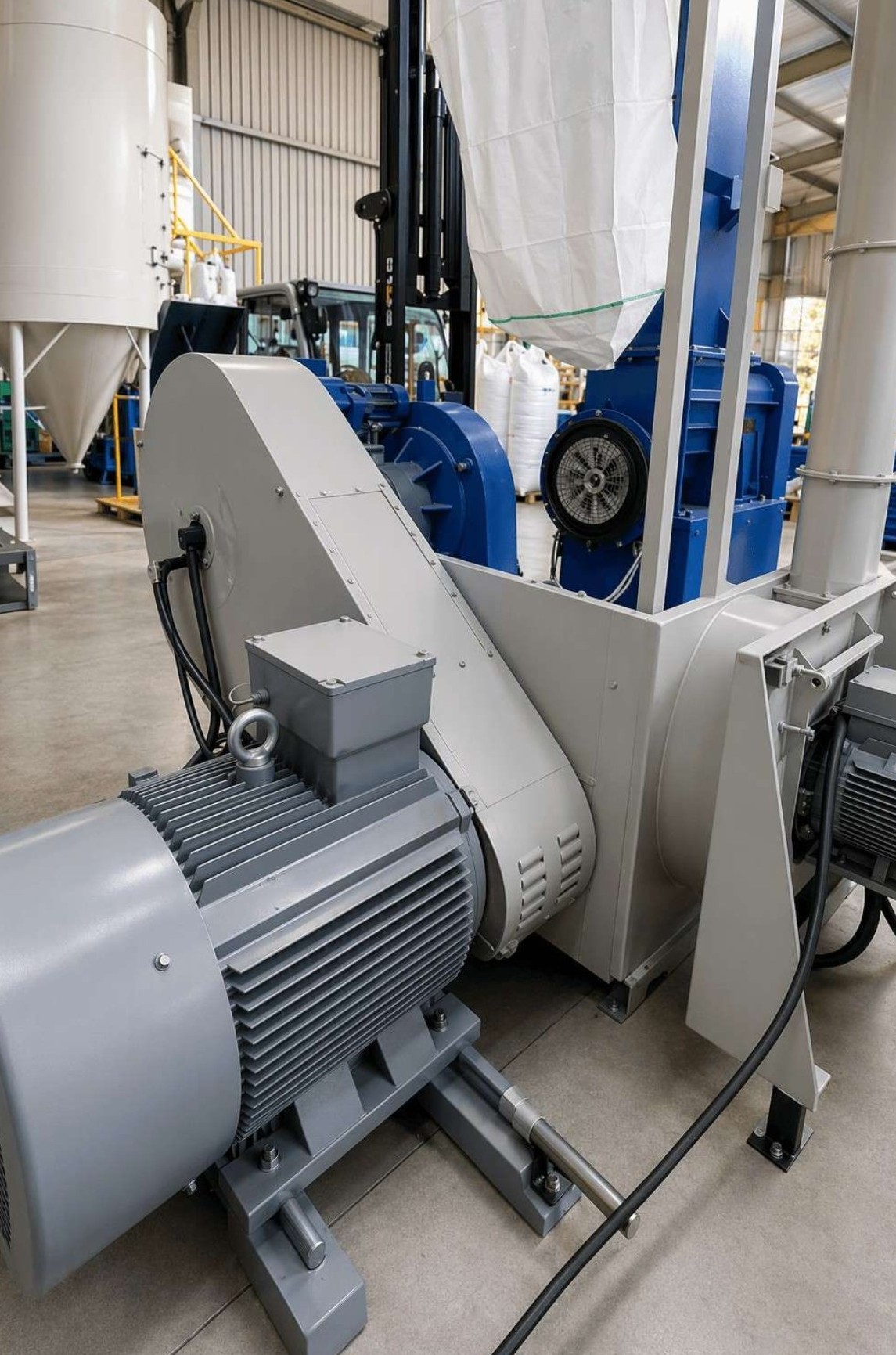

•   Main motor drive power: 110 kW.

•   Throughput capacity: Approx. 400–800 kg/h (depending on material).

•   Central extraction system: 11 kW drive motor, conveying pipe to secondary granulator, cyclone separator mounted above the granulator.

•   Secondary granulator: Approx. 600 mm working width, 30 kW drive.

•   Fines separation: Fines are returned directly to the feeding hopper.

Condition: Used, dry-run tested, refurbished by previous owner.

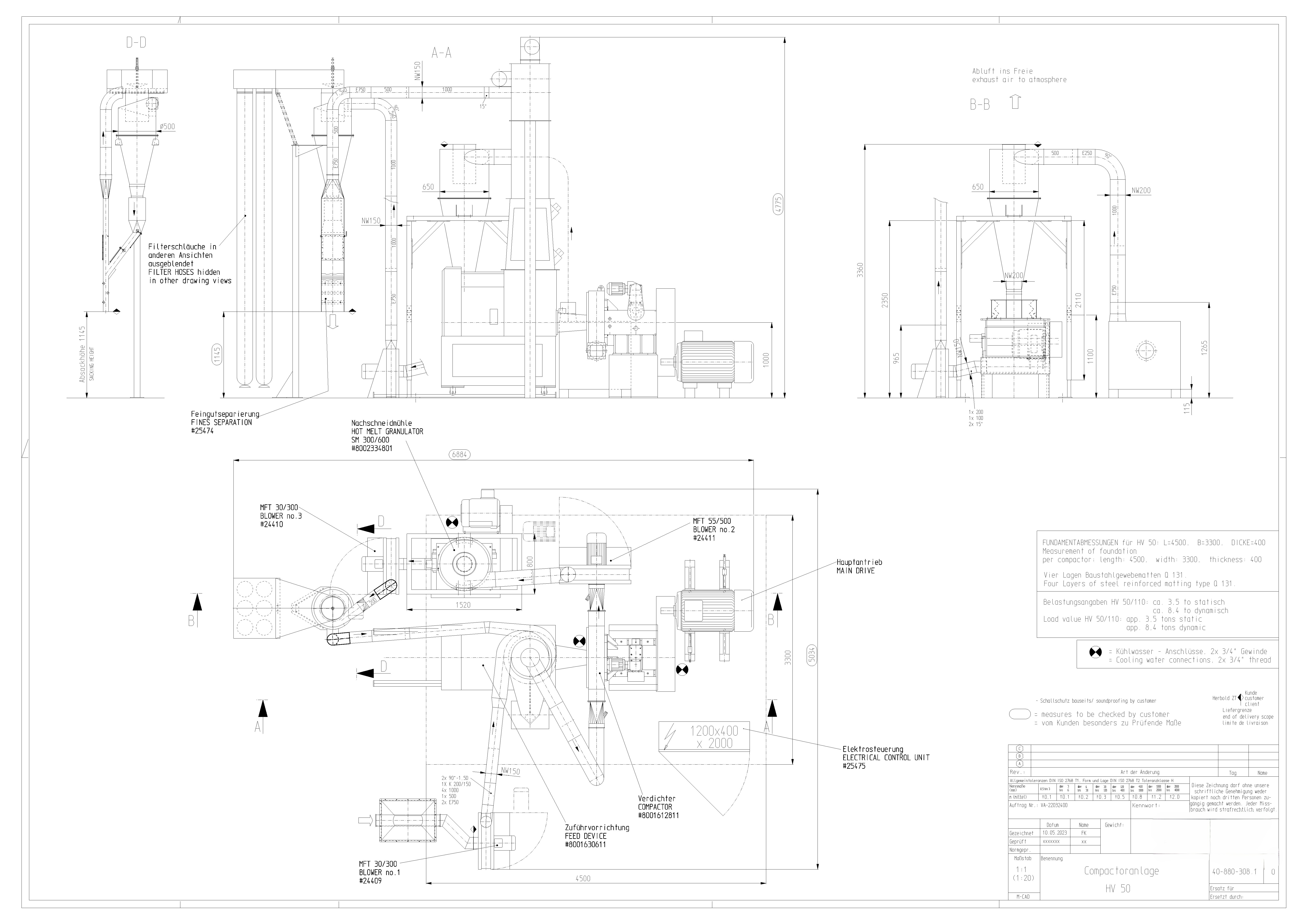

Layout available on request.

Catalogue Herbold Plastcompactor HV series avialable on request.

Location: Germany

Price ExWorks as is / where is €181,900.00 Euro
