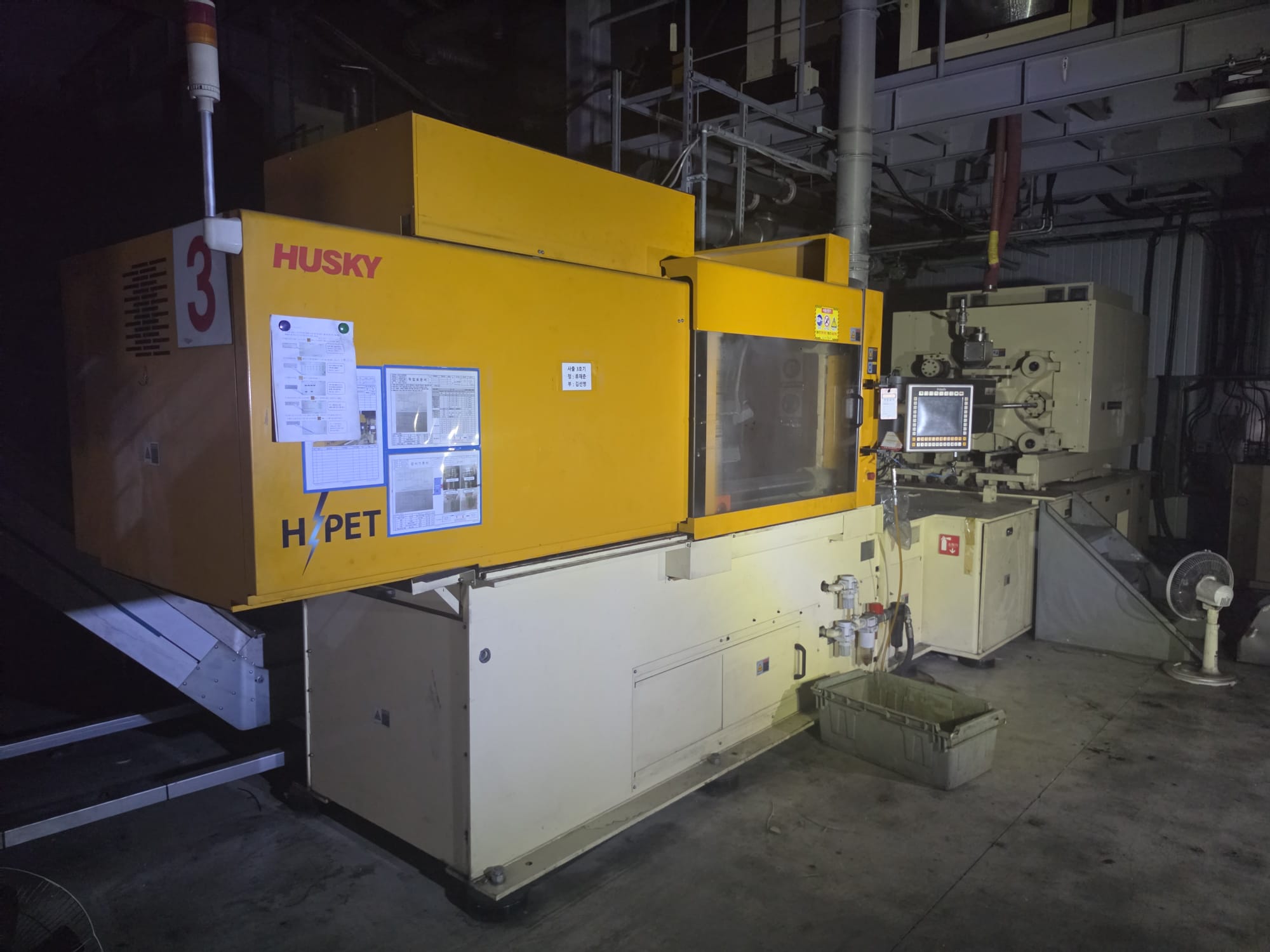

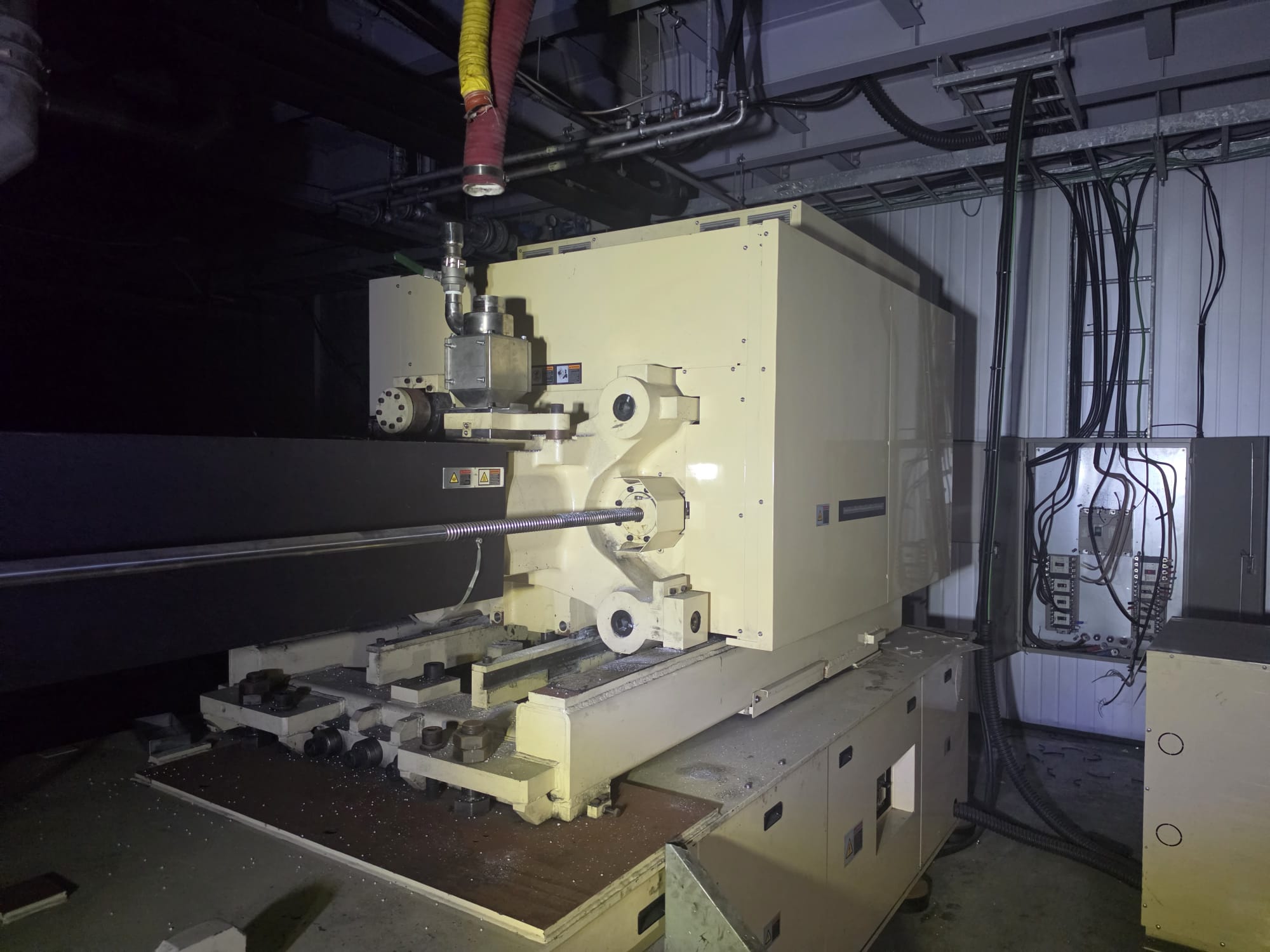

(2015) 230 Ton Husky H-PET™ AE HPETL230E-RSE80D-80 All-Electric PET Preform Injection Molding Machine with Preform Take-Out Robot

Description

GMB#50207

(2015) 230 Ton Husky H-PET™ AE HPETL230E-RSE80D-80 All-Electric PET Preform Injection Molding Machine with Preform Take-Out Robot

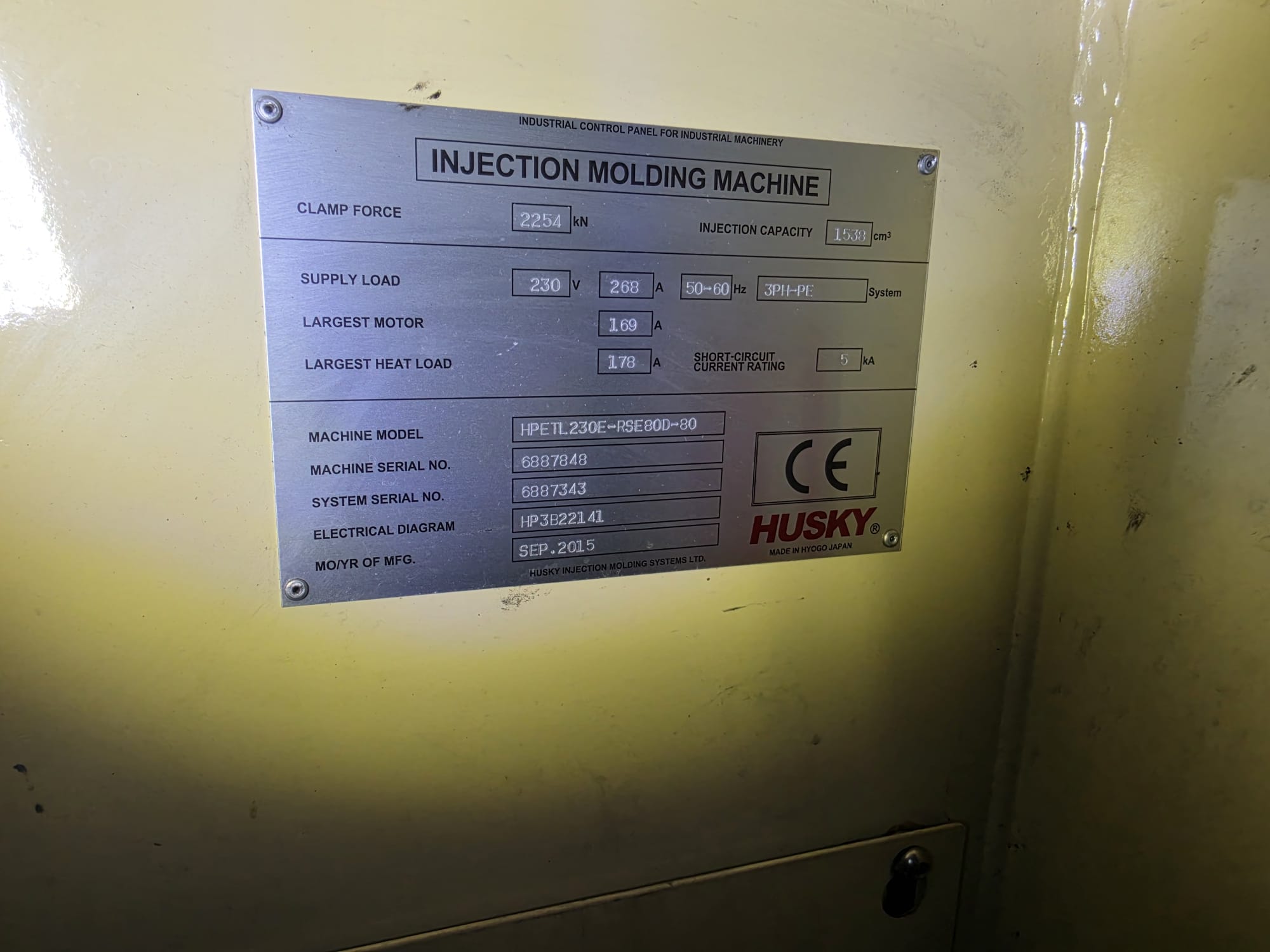

Make: Husky

Model:  HPETL230E-RSE80D-80

Year:  Sept. 2015

Machine Serial No.: 6887848

System Serial No.: 6887343

Electrical Diagram: HP3B22141

Designed for high-efficiency PET preform production

Model Designation Breakdown

•     HPETL: Husky H-PET Long / Standard Stroke Platform (Optimized for Preform Tooling)

•     230E: 230-Ton Electric Clamp Unit (2,254 kN)

•     RSE80D-80: Rotary Screw Electric (RSE) Injection Unit, 80 mm screw diameter / 80 mm shooting pot/plunger configuration

Technical Specifications

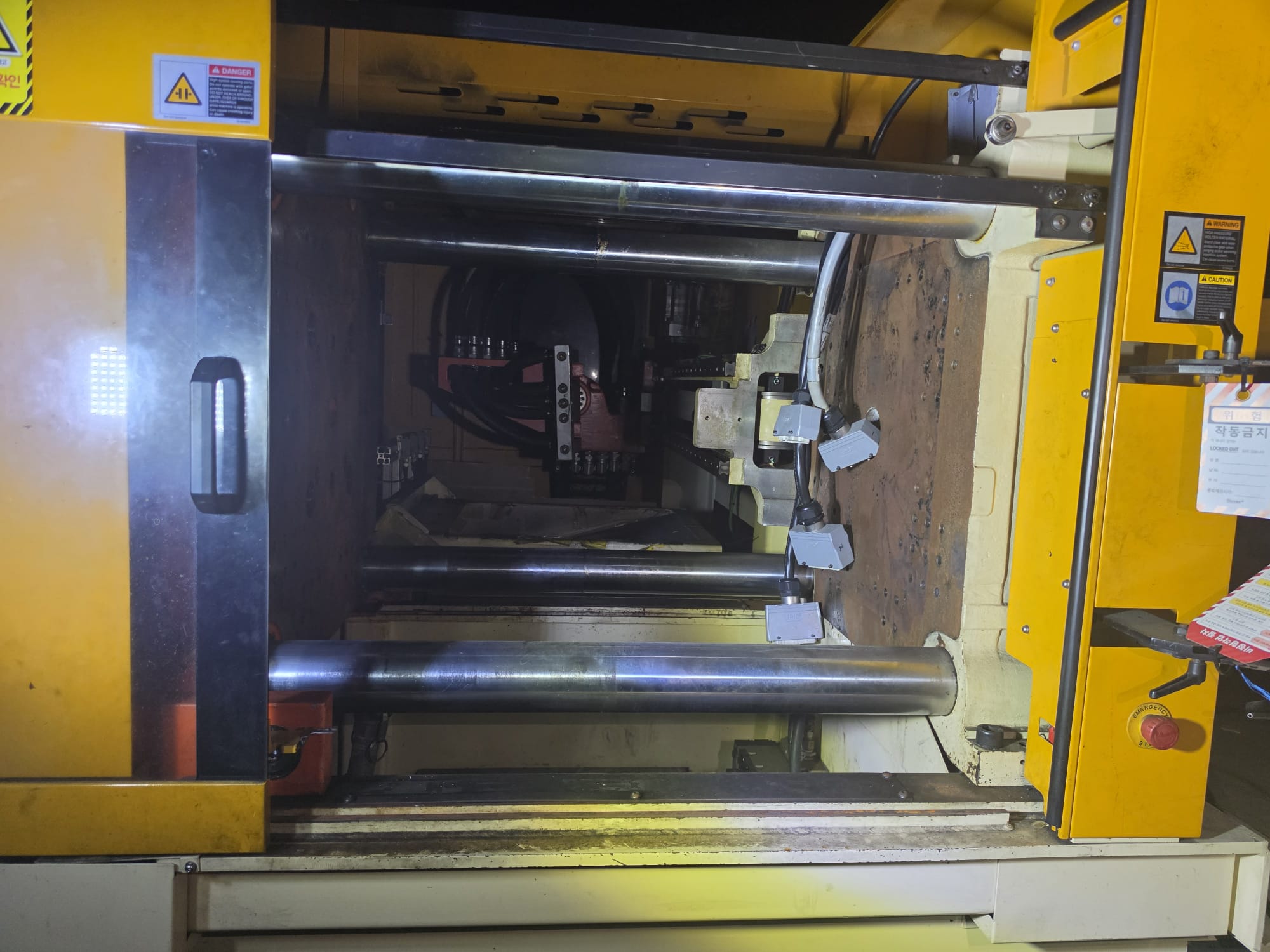

1. Clamping Unit (HPETL230E)

•     Clamping Force: 2,254 kN (230 metric tons)

•     Drive Mechanism: Servo-electric 5-point double toggle

•     Tie-Bar Clearance (H × V): ~630 × 630 mm (standard H-PET frame)

•     Mold Thickness Range: ~350 mm – 750 mm

•     Opening Stroke: ~500 mm – 650 mm

•     Supported Cavitation: 32-cavity

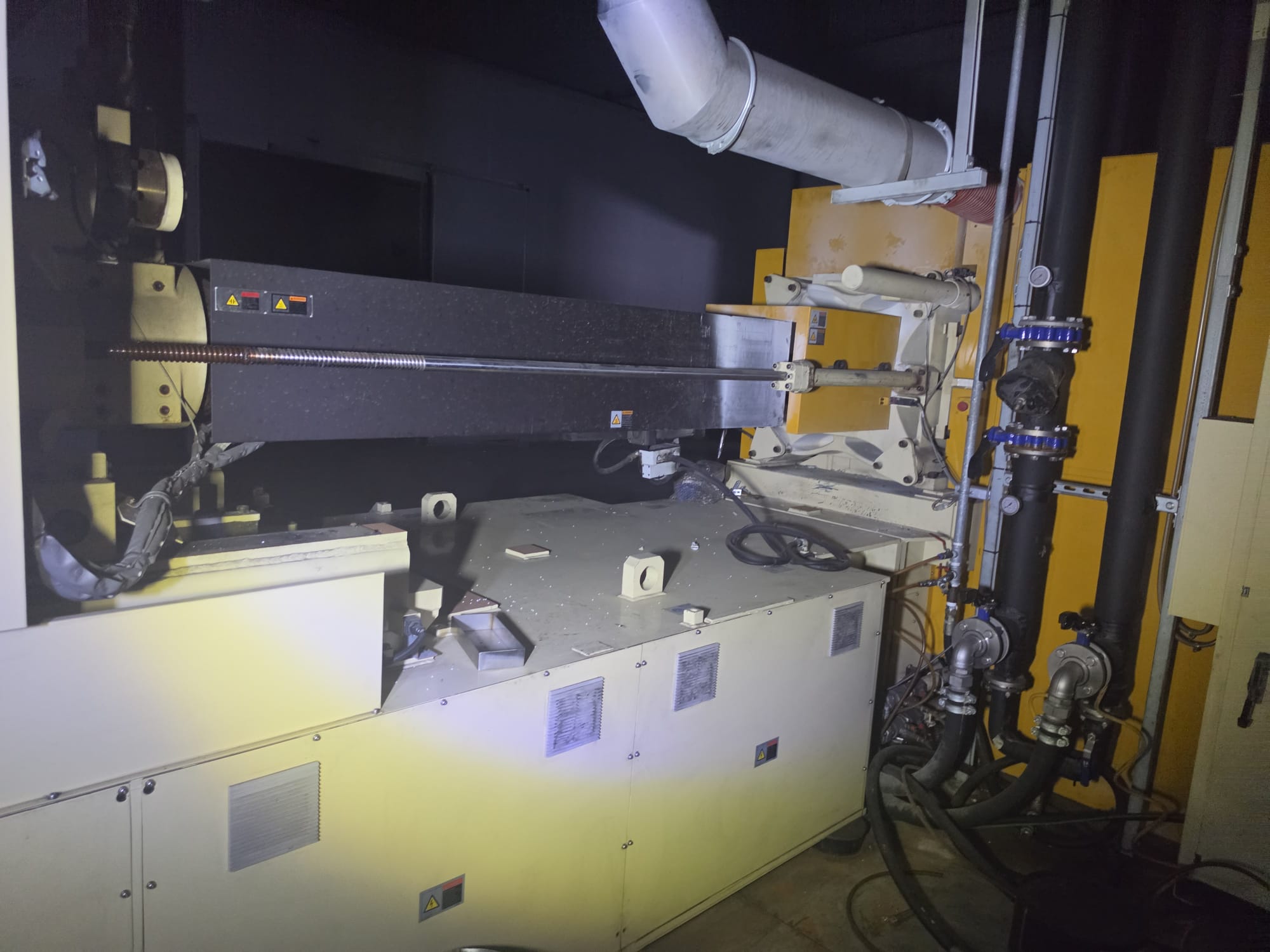

2. Injection & Plasticizing Unit (RSE80D-80)

•     Screw Diameter: 80 mm

•     Injection Mechanism: Two-stage RS system (Continuous Electric Extruder + Shooting Pot Plunger)

•     Max. Injection Volume (Displacement): 1,538 cm³

•     Max. Shot Weight (PET): ~1,750 g – 1,850 g (dependent on resin density & melt compression)

•     Plasticizing Rate: ~280 – 340 kg/h (PET processing rate)

•     Extruder Drive: Direct electric servo motor

•     Injection Drive: High-torque electric servo actuator

3. Electrical & Power Requirements

•     Main Supply Voltage: 230 V | 268 A | 50–60 Hz | 3PH-PE System

•     Full Load Current: 268 A

•     Largest Motor Load: 169 A

•     Largest Heat Load : 178 A

•     Short-Circuit Current Rating (SCCR): 5 kA

Machine Condition : The equipment is in very good working condition. Full quality assurance and mechanical integrity are guaranteed.

Current Status: The system is currently decommissioned / not under power.

Included in Sale:

• Husky HPETL230E-RSE80D-80 All-Electric Injection Molding Machine Base Unit

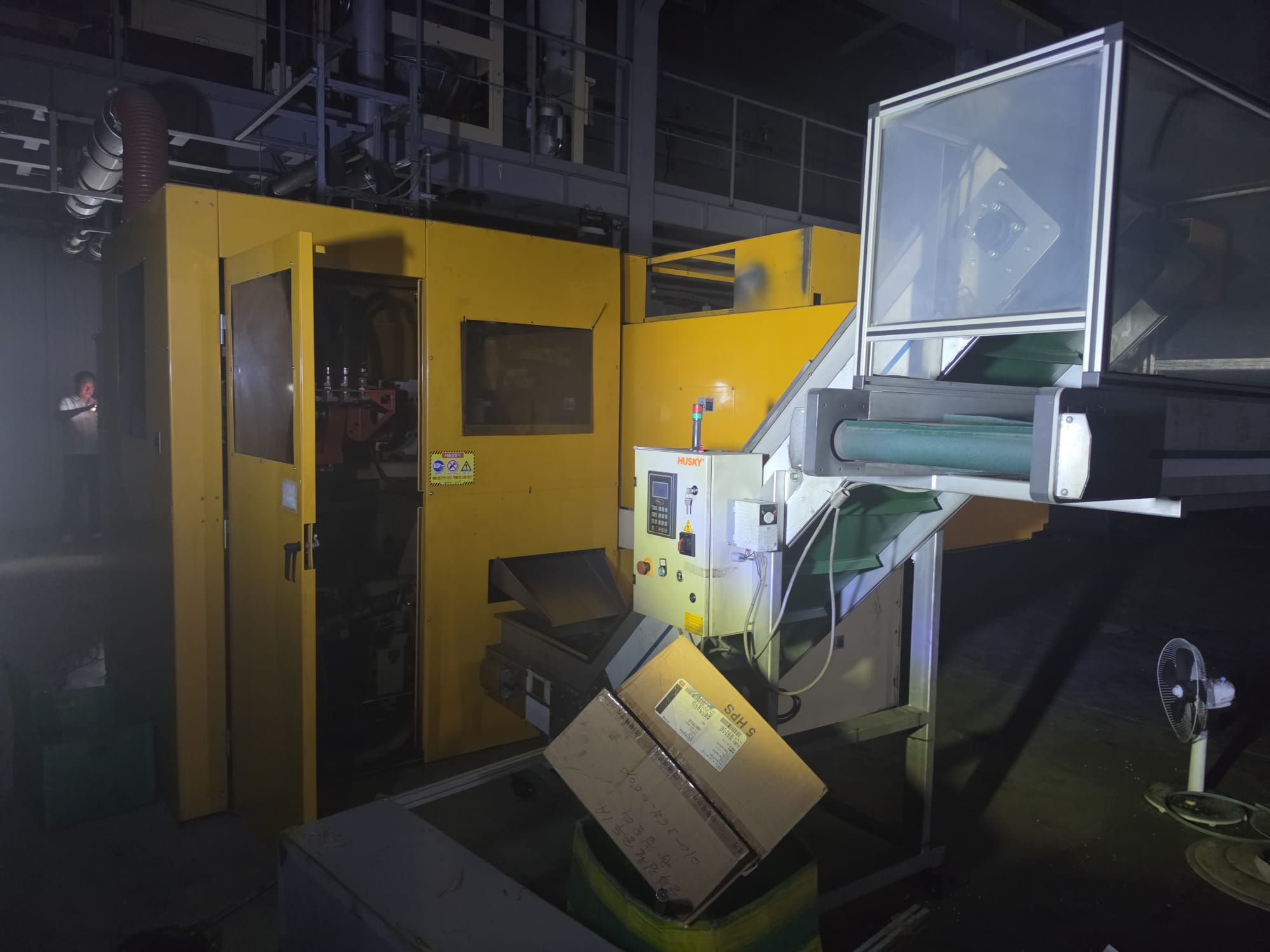

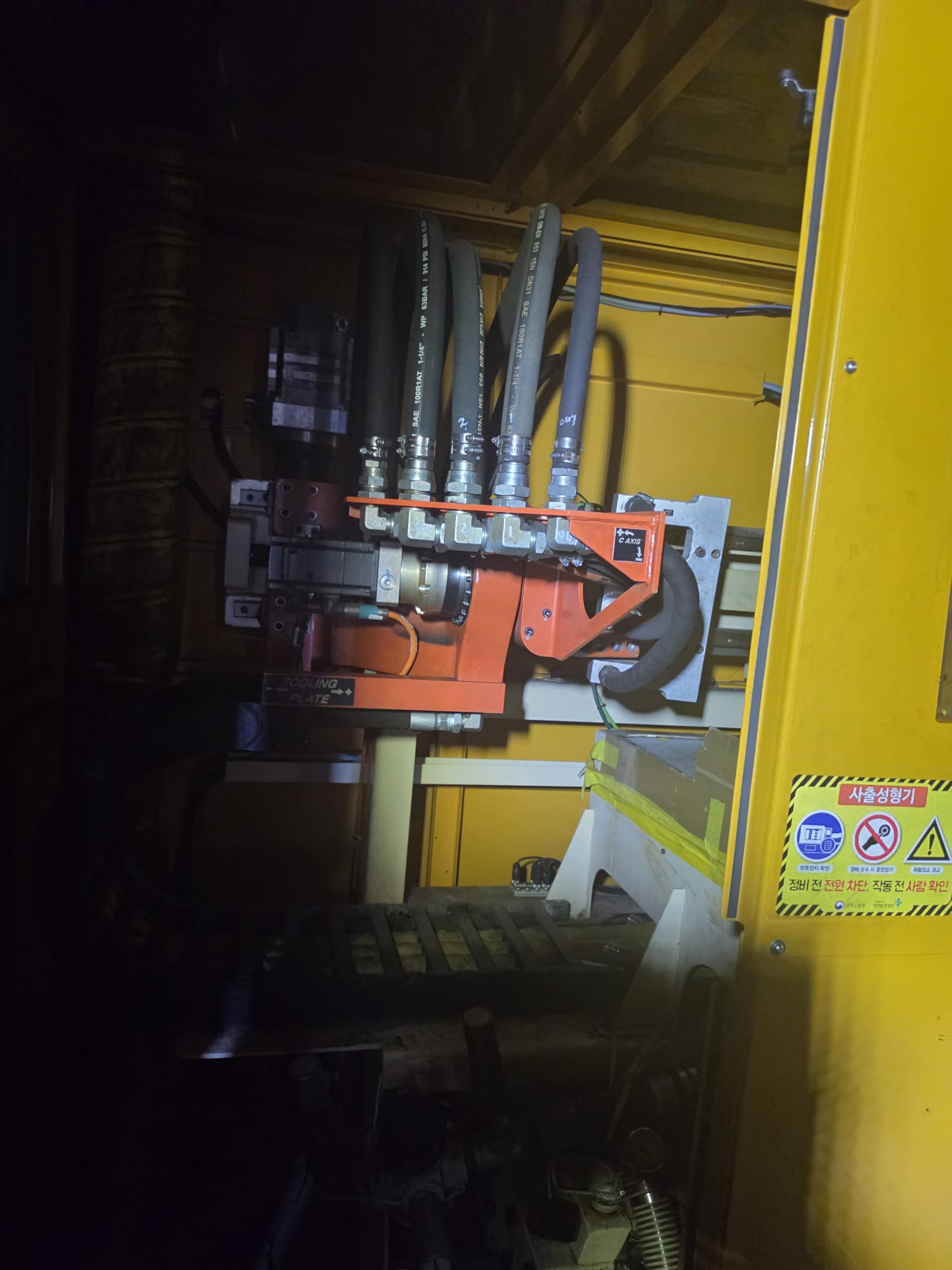

• Preform Take-Out Robot

Excluded from Sale:

• Preform Injection Molds

• Auxiliary Equipment

Location: South Korea

Price FOB Busan Port as is / where is
