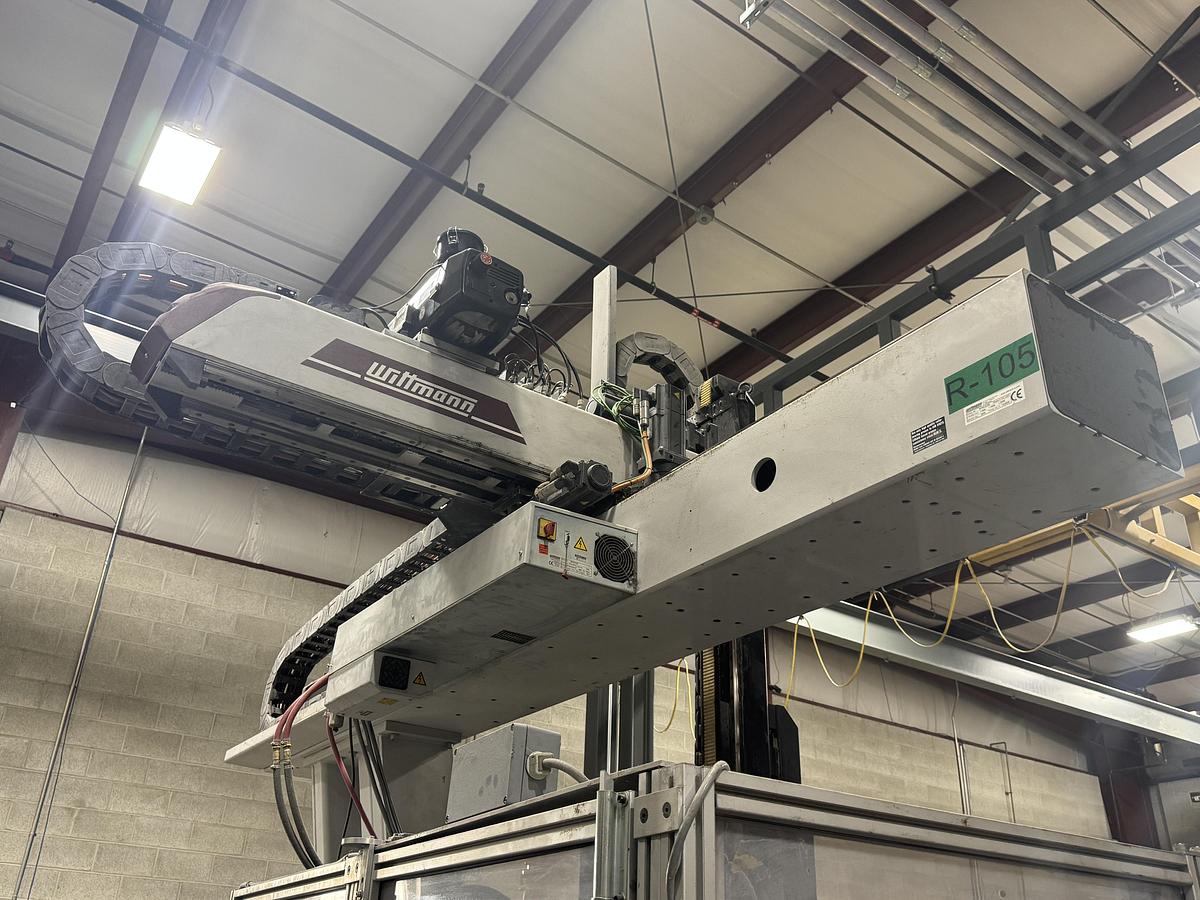

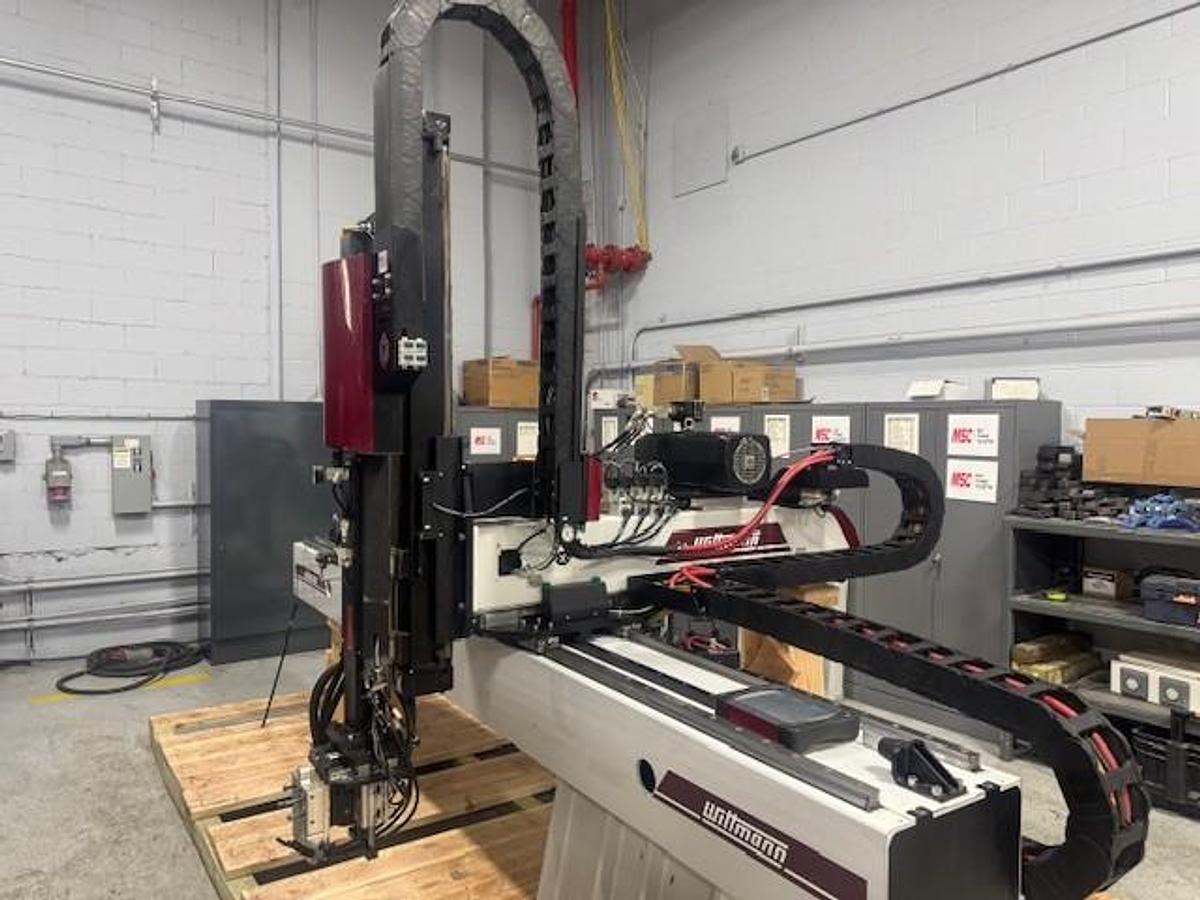

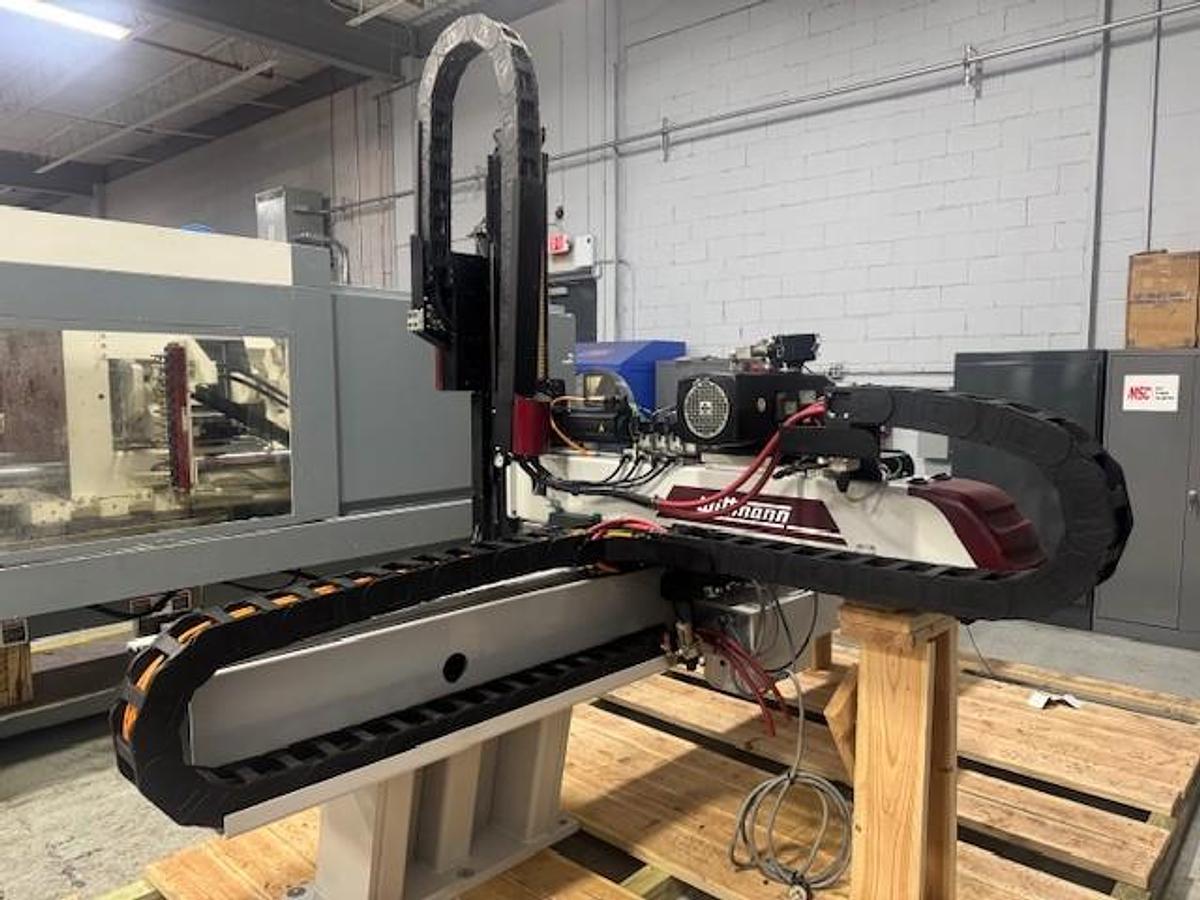

(2008) Wittmann W753 3-Axis Servo Robot for 600 -1300 Ton IMM

Description

GMB#50213

(2008) Wittmann W753 3-Axis Servo Robot for 600 -1300 Ton IMM

Make: Wittmann

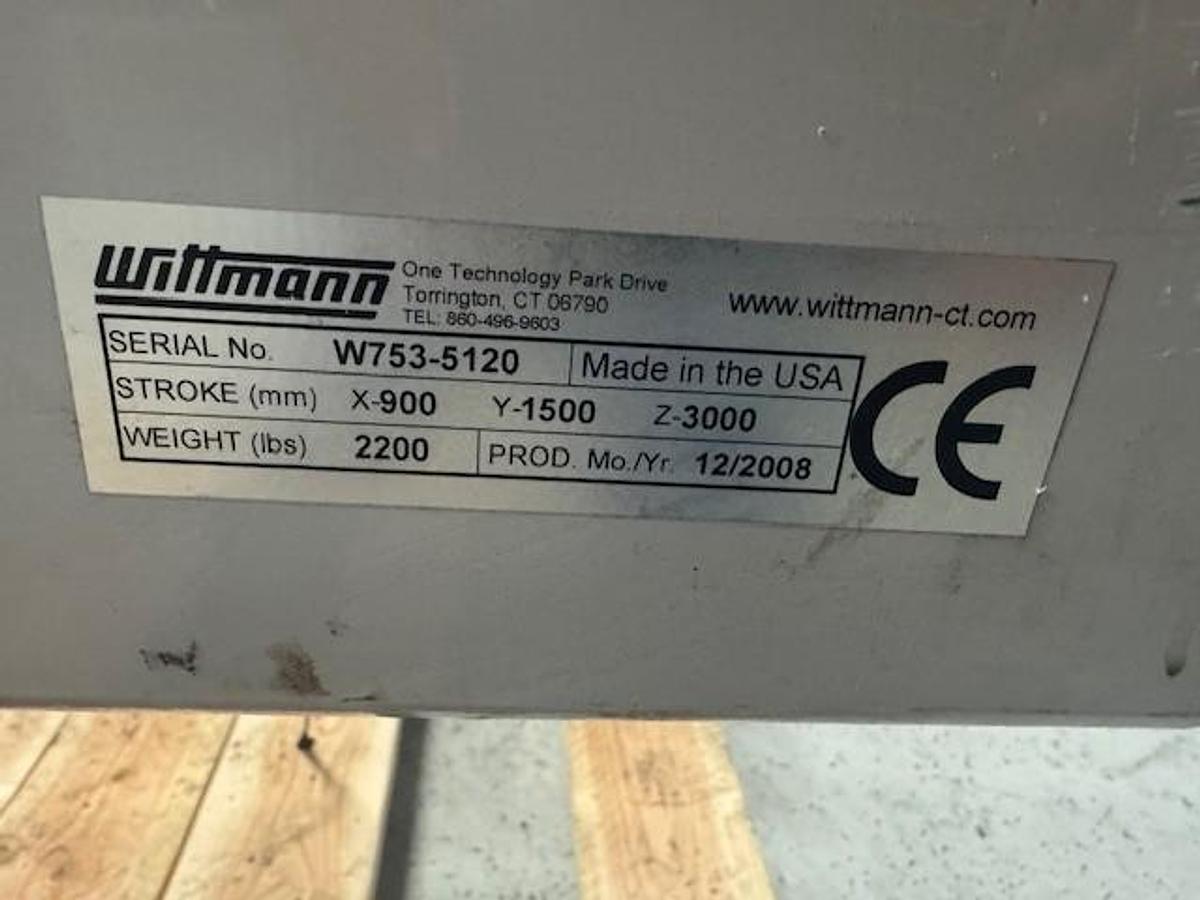

Model: W753-5120

Year: 12/2008

X-Axis (Demolding / Kick Stroke): 900 mm (~35.4″)

Y-Axis (Vertical / Stripping Stroke): 1,500 mm (~59.0″)

Z-Axis (Traverse / Horizontal Main Beam): 3,000 mm (~118.1″)

Injection Molding Machine Size: Designed for presses ranging from 600 to 1,300 US Tons (approx. 5,500 to 12,000 kN clamping force).

Payload Capacity: Up to 25 kg to 35 kg (55 to 77 lbs)

Drive System: High-precision AC servo motors on all three main axes with rack-and-pinion / belt drive arrangements.

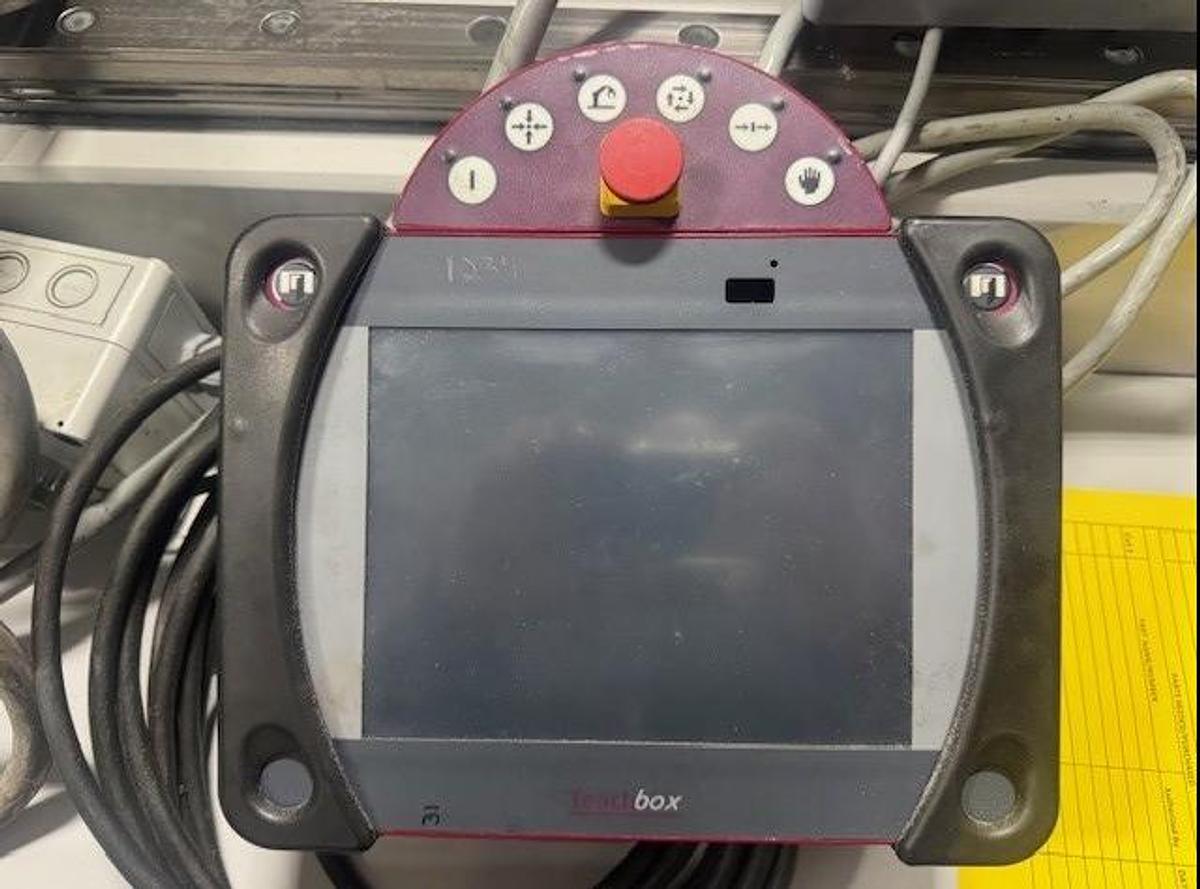

Control     R7 with CNC 6.2 MAS-722A software

Vacuum Pump with 4 vacuum circuits

Discharge:   Rear Side

Include:     Larger cable track, special x/y axis strokes, high pressure blow-off, C-axis lock and valve, 7-series conveyor indexing

Location: USA

Price On Request
