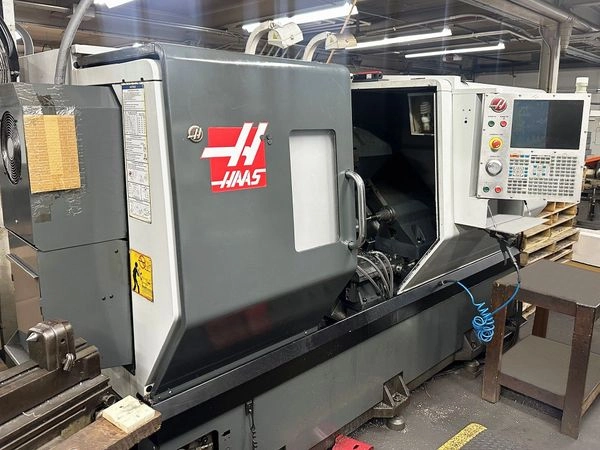

(2012) HAAS ST30 CNC Lathe with Steady Rest unit included

Description

GMB#8510

(2012) HAAS ST30 CNC Lathe with Steady Rest unit included

Make:    HAAS

Model:      ST30

Year:     2012

Bar Capacity: 3"

Chuck Size: 10"

Spindle Speed: 3,400 RPM

Spindle Motor: 40 HP

X Axis Travel: 12.5"

Z Axis Travel: 26"

Rapid Rate Z Axis: 945 IPM

Turret Tools: 12 Station

Rapid Rate X Axis: 945 IPM

Max Turning Dia: 21"

Max Turning Length: 26"

Max Swing: 31"

Max Thrust X: 4100 lbf

Max Thrust Z: 5100 lbf

Spindle Nose: A2-8

Max Torque: 300 ft-lbf

Spindle Bore: 3.5"

Coolant Cap: 55 gal

Dimensions: 171" x 90" x 98"

Weight: 14,300 LBS

Options Included:

Chip Conveyor

Tool Presetter

Steady Rest

It comes with a Chip Conveyor, a Tool Presetter and a Steady Rest.

The Chip Conveyor gets rid of waste while you're working. It moves chips away from your work area, so you can focus on your job and not cleaning up. The Conveyor is solid and works without a hitch.

The Tool Presetter that comes with this lathe is easy to use and beneficial. It helps you set your tools before you put them to work so that you don't have to stop in the middle of a job to adjust. It tells you when your tools are in the right place.

Also, the Steady Rest included with this unit helps hold tools in place during operation. This not only offers you better precision but also makes your work safer.

Still works as good as new.

Location: Pennsylvania, USA

Price ExWorks as is / where is
