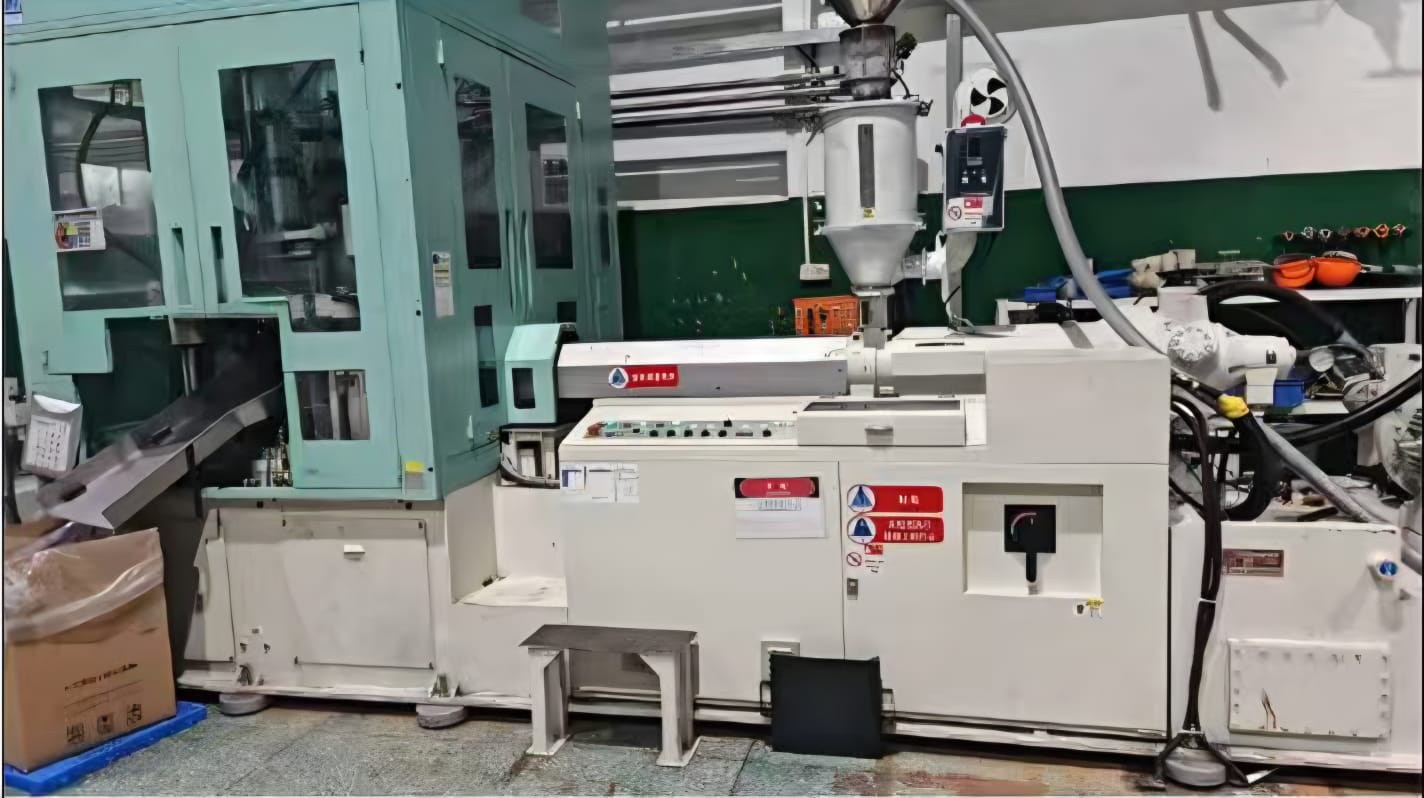

(2018) AOKI SBIII-500LL-50S Injection Stretch Blow Molding (ISBM)

Description

GMB#7569

(2018) AOKI SBIII-500LL-50S Injection Stretch Blow Molding (ISBM)

Make:    AOKI

Model:     SBIII-500LL-50S

Year:    2018

Molding Process   Single-Stage ISBM (3-Station Rotary System at 120°)

Compatible Materials    PET, Virgin & 100% PCR / rPET flakes, PP, HDPE, PC, Tritan

Injection Clamping Force      500 kN (~50 Metric Tons)

Blow Clamping Force     118 kN (~12 Metric Tons)

Platen Type LL Series     (Long Stroke / Extended Platen for tall body & deep neck finishes)

Screw Diameter    Ø 60 mm (Standard High-Plasticizing Barrier Screw)

Max. Injection Shot Volume    ~480 – 520 cm³/shot

Max. Container Height   Up to 350 mm

Max. Container Diameter Up to 135 mm (subject to cavitation)

Drive / Hydraulic System      Series "S" high-response servo/inverter-assisted variable displacement pump

Main Motor Rating     45 kW

Total Connected Load    ~75 – 85 kVA (3-Phase / 220V/380V/440V, 50/60 Hz configurable)

Control Unit      Aoki Multi-Language Microprocessor CNC Terminal with recipe storage

Under Power

Location: China

Product Notice

Listing information contained herein is provided solely by seller. Garesco makes every effort to verify the accuracy of information; however listings are subjective to information obtained by seller and are not warranted by Garesco. Items provided as-is unless otherwise stated or negotiated.

Please note that this description may have been translated automatically. Contact us for further information.
