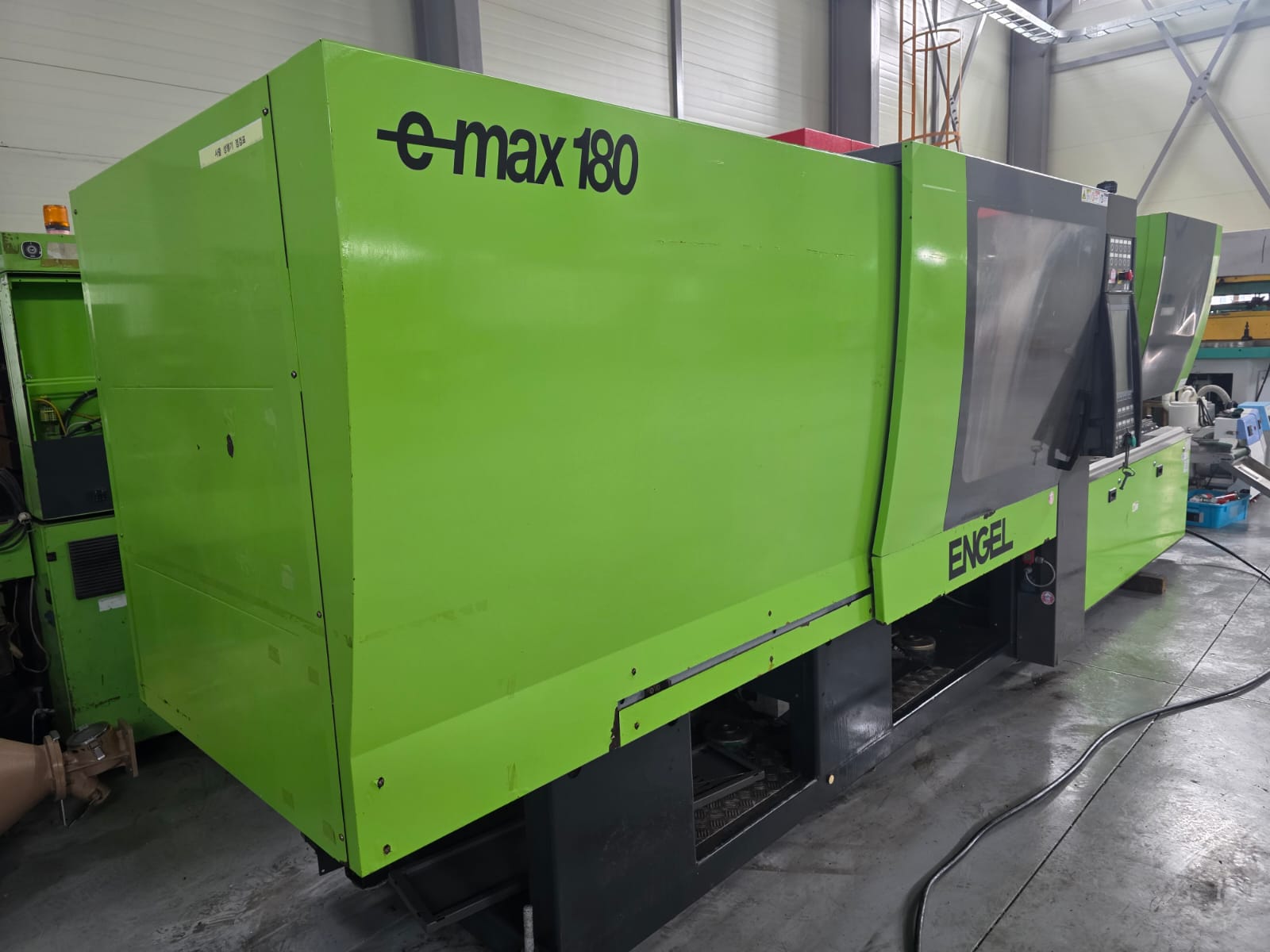

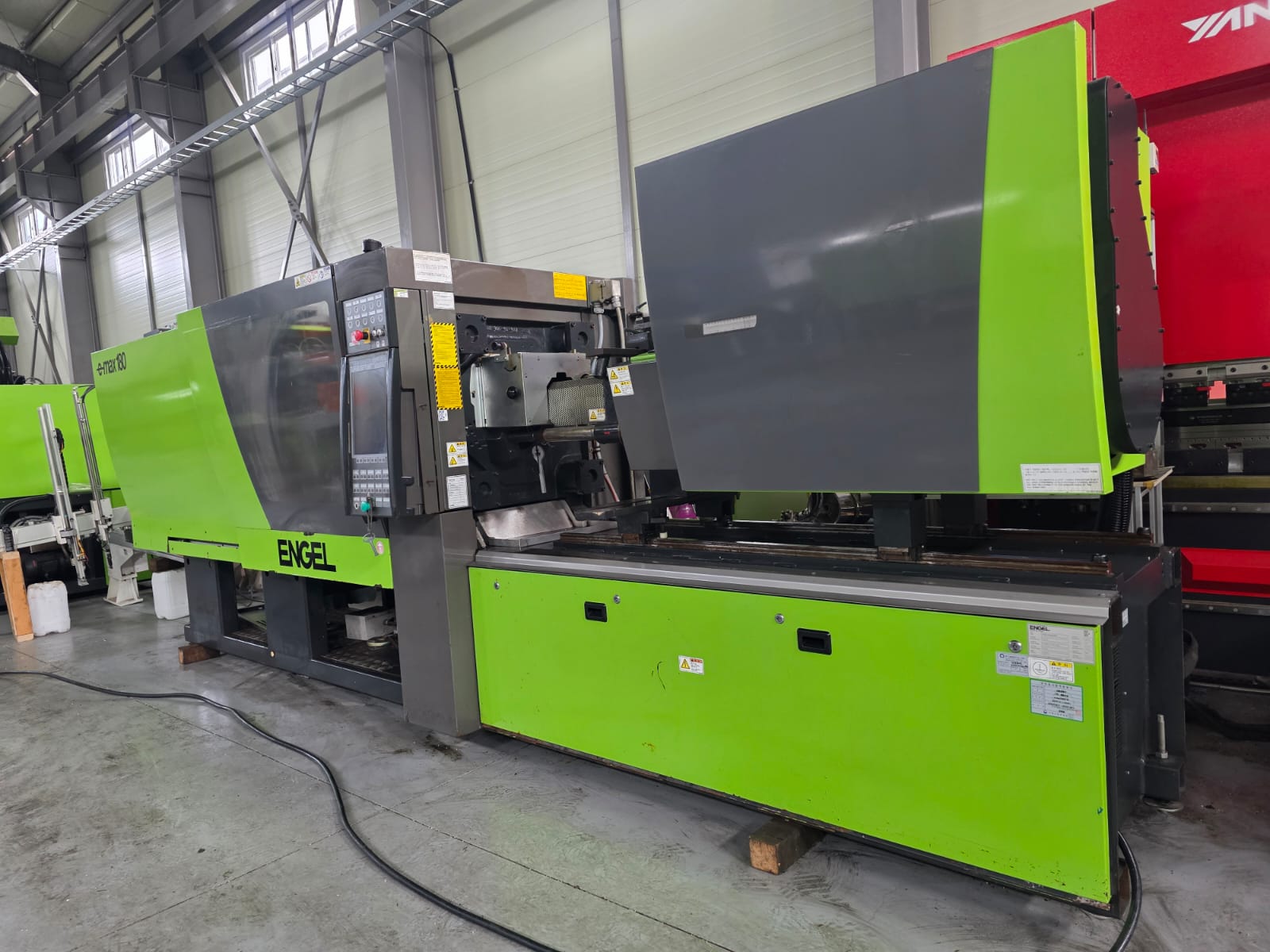

(2012) 180-Ton Engel Emax 310/180 All Electric Injection Molding Machine (IMM)

Description

GMB#50216

(2012) 180-Ton Engel Emax 310/180 All Electric Injection Molding Machine (IMM)

Make: Engel

Model: Emax 310/180 All Electric

Year: 2012

• Clamping Force: 1,800 kN (~180 metric tons / ~200 US tons)

• Tie-Bar Clearance (H × V): 520 × 520 mm



• Platen Dimensions (H × V): 760 × 760 mm



• Max. Mold Opening Stroke: 460 mm



• Mold Height (Min. / Max.): 250 mm / 600 mm



• Max. Daylight Between Platens: 1,060 mm



• Ejector Stroke: 130 mm



• Ejector Force (Forward): 37 kN



• Max. Mold Weight: ~1,900 kg



• Dry Cycle Time: ~1.4 – 1.7 s (per 320 mm stroke)



  Screw Diameter: 35 mm

• Screw Length (L/D Ratio): 20:1



• Screw Stroke (Metering Stroke): ~150 – 160 mm



• Swept / Stroke Volume: ~144 – 154 cm³



• Max. Shot Weight (PS): ~131 – 140 g



• Max. Specific Injection Pressure: ~1,800 – 2,000 bar (standard rating up to 2,000 bar)



• Injection Rate: ~150 – 180 cm³/s (standard servo drive; higher on boost versions)



• Max. Screw Speed: ~400 – 420 RPM



• Heating Zones: 4 – 5 zones



• Installed Heating Capacity: ~9.2 – 11.5 kW



• Nozzle Stroke / Contact Force: ~305 – 400 mm / 28 – 50 kN



Location: Asia

Price ExWorks as is / where is

Product Notice

Listing information contained herein is provided solely by seller. Garesco makes every effort to verify the accuracy of information; however listings are subjective to information obtained by seller and are not warranted by Garesco. Items provided as-is unless otherwise stated or negotiated.

Please note that this description may have been translated automatically. Contact us for further information.
