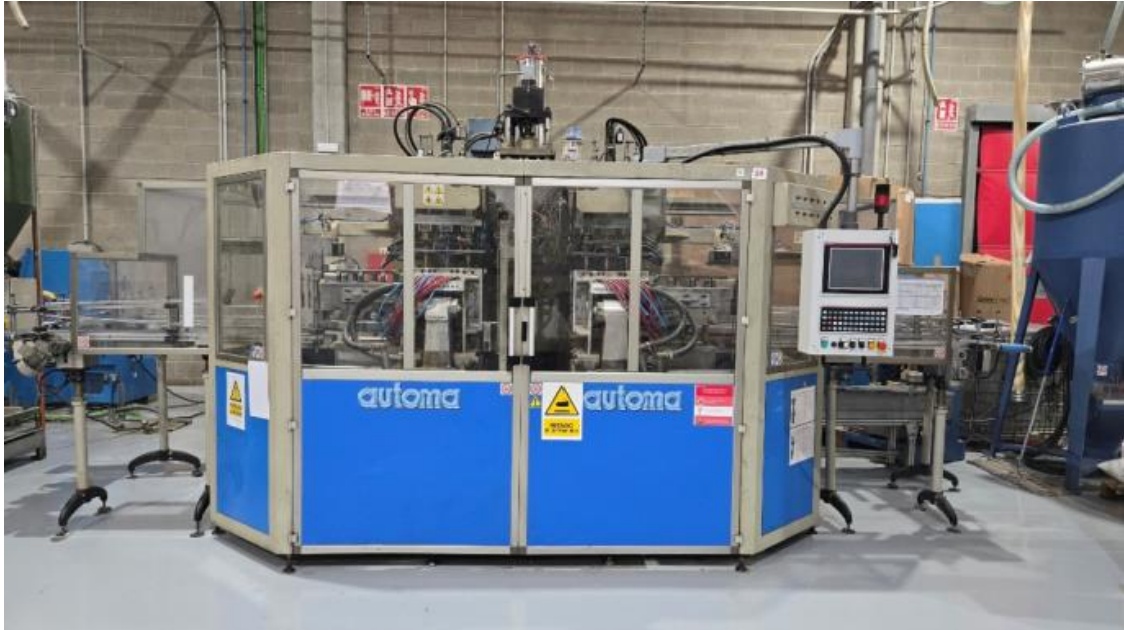

(2008) Automa APEX AT300D continuous extrusion blow molding machine (EBM) double station

Description

GMB#7570

(2008) Automa APEX AT300D continuous extrusion blow molding machine (EBM) double station

Make: Automa

Model: APEX AT300D

Year: 2008

Serial No.:  991513002

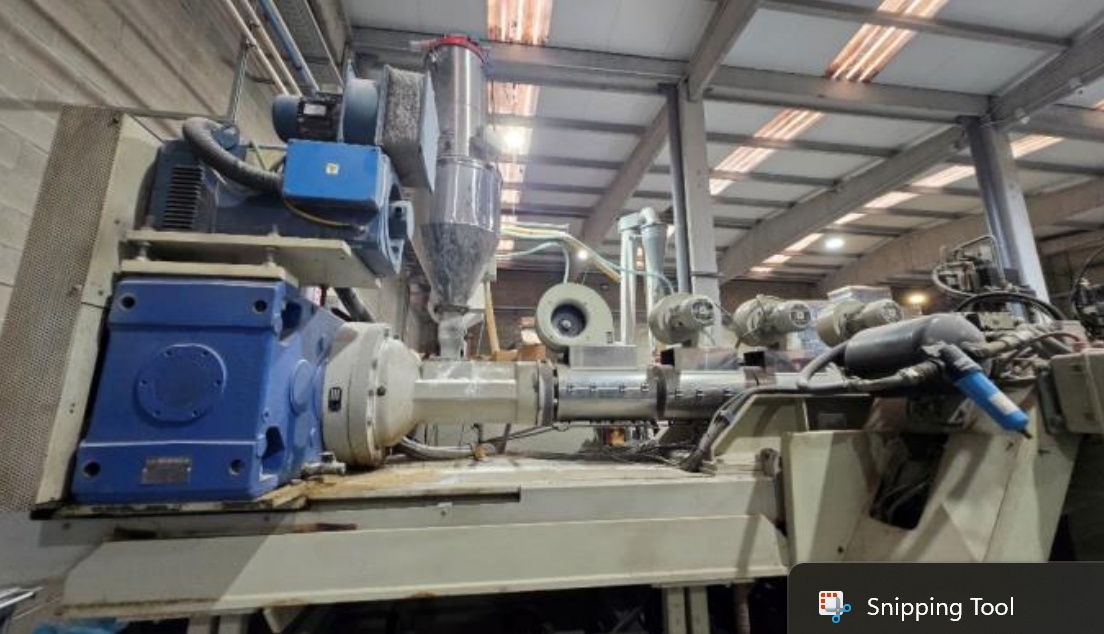

Extruder Unit

•

• Extruder Model: E904-WT AC



• Screw Diameter: 90 mm

•

• Screw Speed: 69 r.p.m.



• Extruder Motor Power: 65 kW



• Heating Power: 24 kW

•

• PE-PP Plasticizing Capacity: 200-130 kg/h

•

Blow Molding Unit

•

• Horizontal Stroke: 500 mm



• Dry Cycle Time: 2.4 s



• Clamping Force: 120 kN



• Air Pressure: 6-8 bar



• Pump Motor Power: 22 kW



• Total Installed Power: 77-115 kW



• Minimum Water Pressure: 3 kg/cm



• Maximum Number of Cycles: 14/min

•

Production Capabilities

•

• Number of Cavities: 3+3



• Interaxial Distance: 100-135 mm



• Maximum Container Length: 85-120 mm



• Maximum Container Height: 350 mm



• Capacity: 1 L

•

Maximum Mold Dimensions

•

• Width: 495 mm



• Height: 460 mm



• Thickness: 170+170 mm



• Opening: 265 mm



• Operational Status: Operational, in good working condition

Location: Spain

Price On Request
